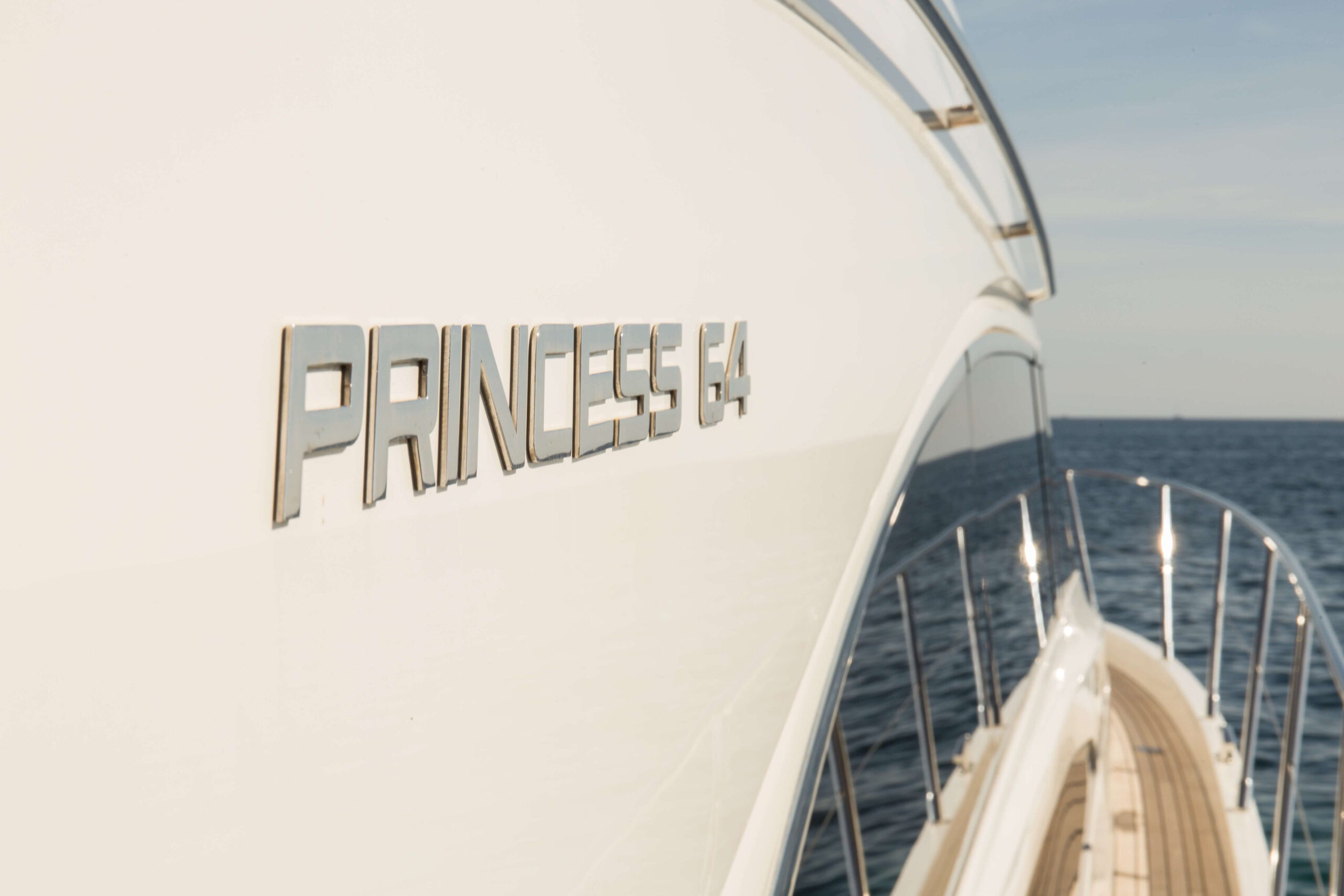

Princess
64

DECK FITTINGS

• Teak-laid transom platform, cockpit deck, flybridge, flybridge stairway and stairs to side deck

• Reversible electric anchor winch with foredeck, main helm and flybridge controls

• Stemhead roller with automatic anchor launch and retrieve

• Self-stowing 40kg/88lbs Delta anchor with 40m of chain

• Twin electric-powered sternline mooring winches

• Bow rope stowage locker

• Bow and stern fairleads

• Freshwater deck/anchor wash

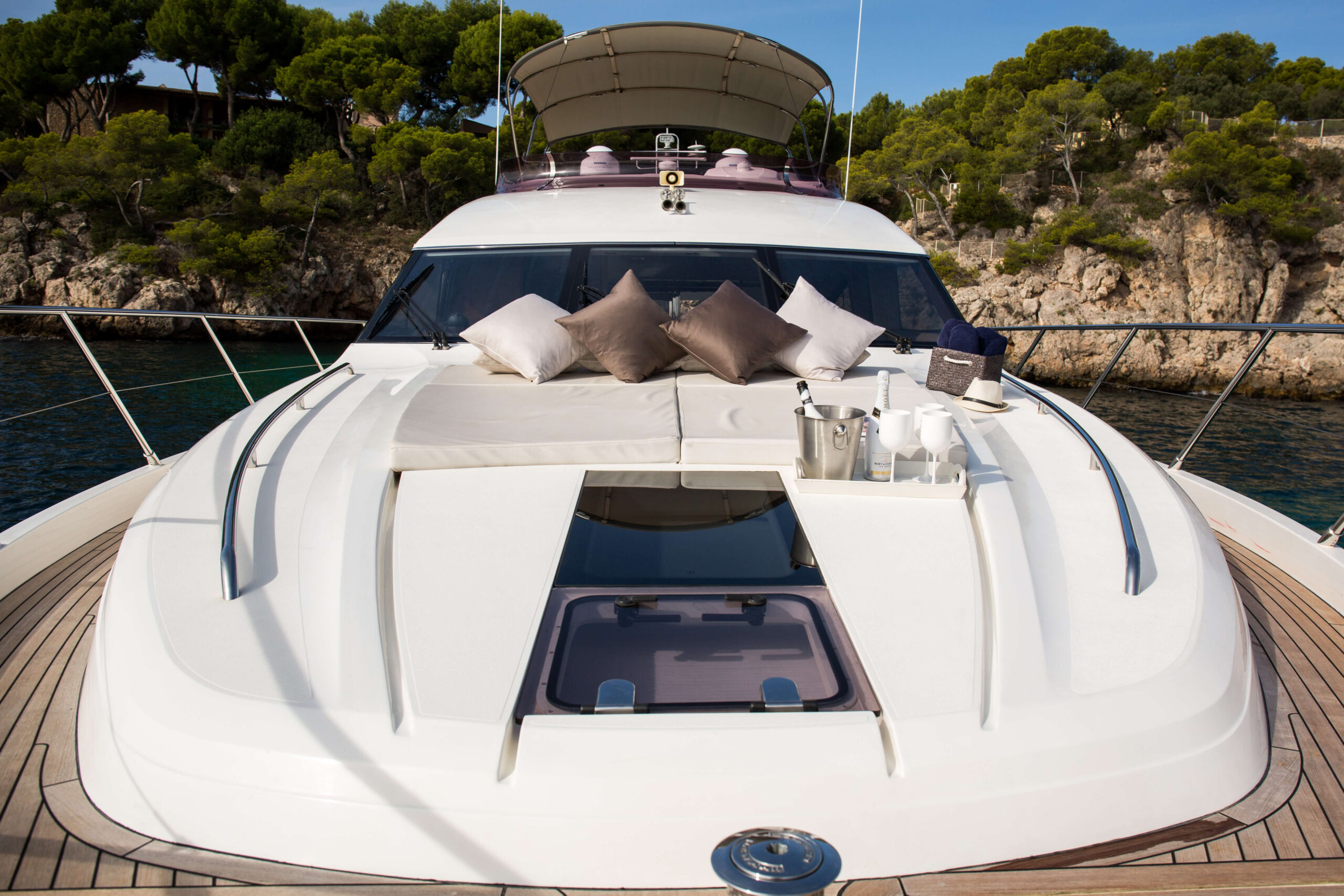

• Coachroof sunbed recess

• Stainless-steel bow, stern and spring cleats (2 pairs)

• Stainless-steel pulpit and guard rails

• Forward coachroof handrails

• Flybridge handrails

• Heavy duty white PVC rubbing band with Stainless-steel insert

• Full set of IMCO navigation lights

• Riding light

• Dual station remote control searchlight

• Twin electric horns

• Fuel and water filler

• Dinghy chock system

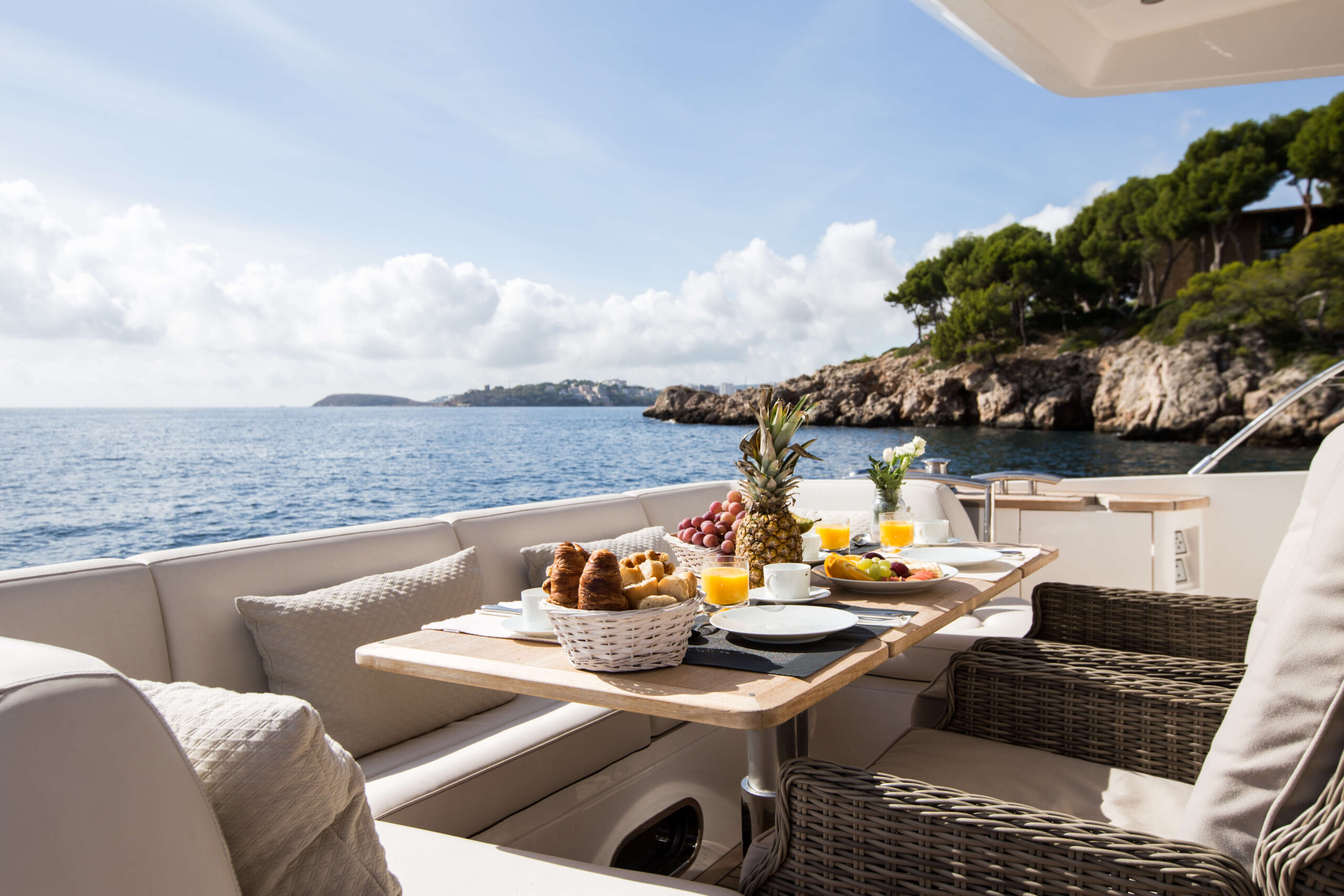

AFT COCKPIT

• Self-draining

• U-shaped seating and folding leaf teak table

• Cockpit lighting

• Cockpit cover

• Stainless-steel handrails

• Teak-laid hatch on gas strut to lazarette stowage

• Transom gate to port and steps to starboard leading to bathing platform

• Teak-laid transom bathing platform with electro-hydraulic raise/lower mechanism (400kg/882lbs), foldaway swimming ladder, hot and cold shower, storage locker and deck light

• Locker housing 220/240v shore support inlets and shoreline stowage

• Liferaft stowage locker

• Rope storage locker

• Deck hatch to engine room

• Starboard hatch to optional crew/occasional cabin

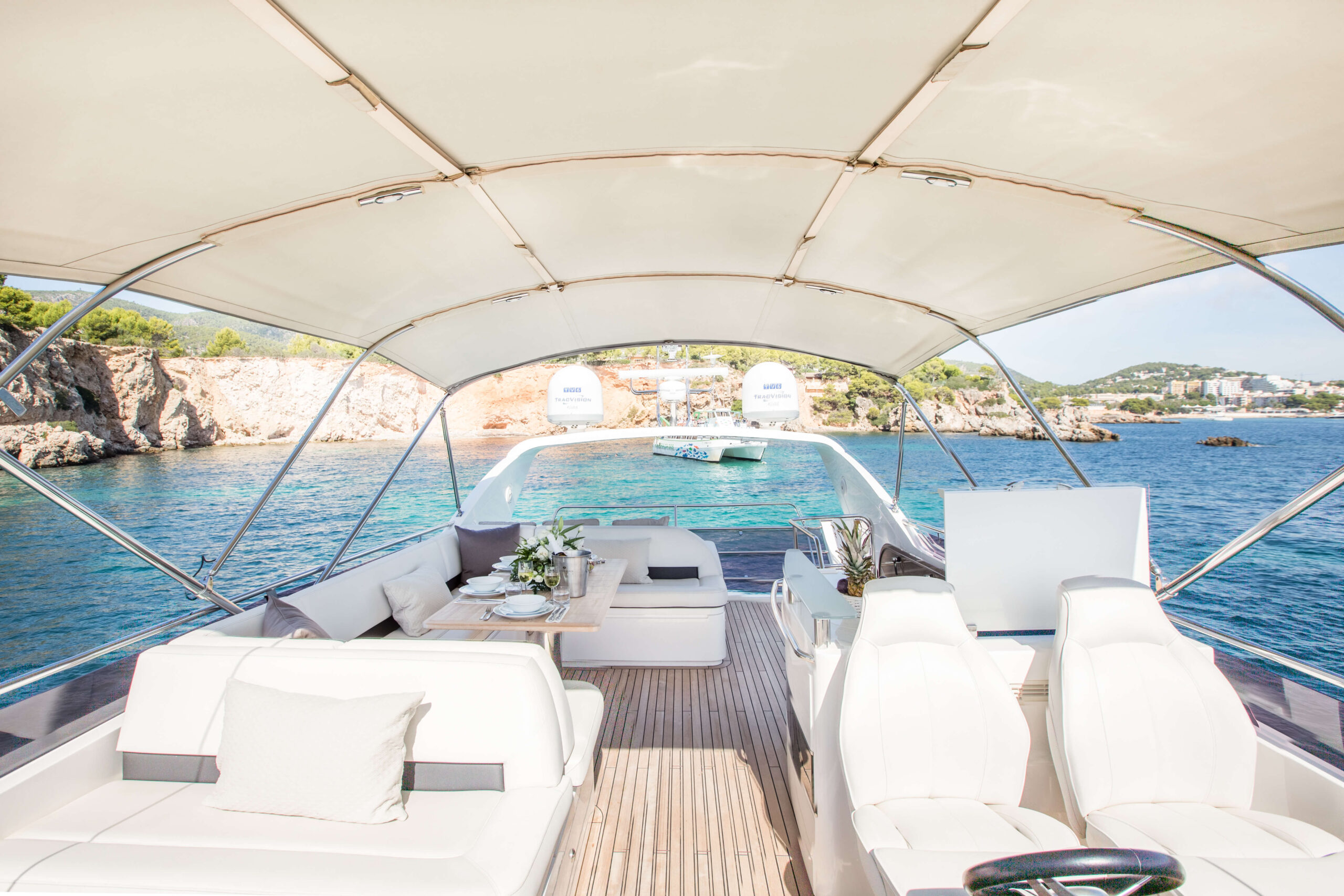

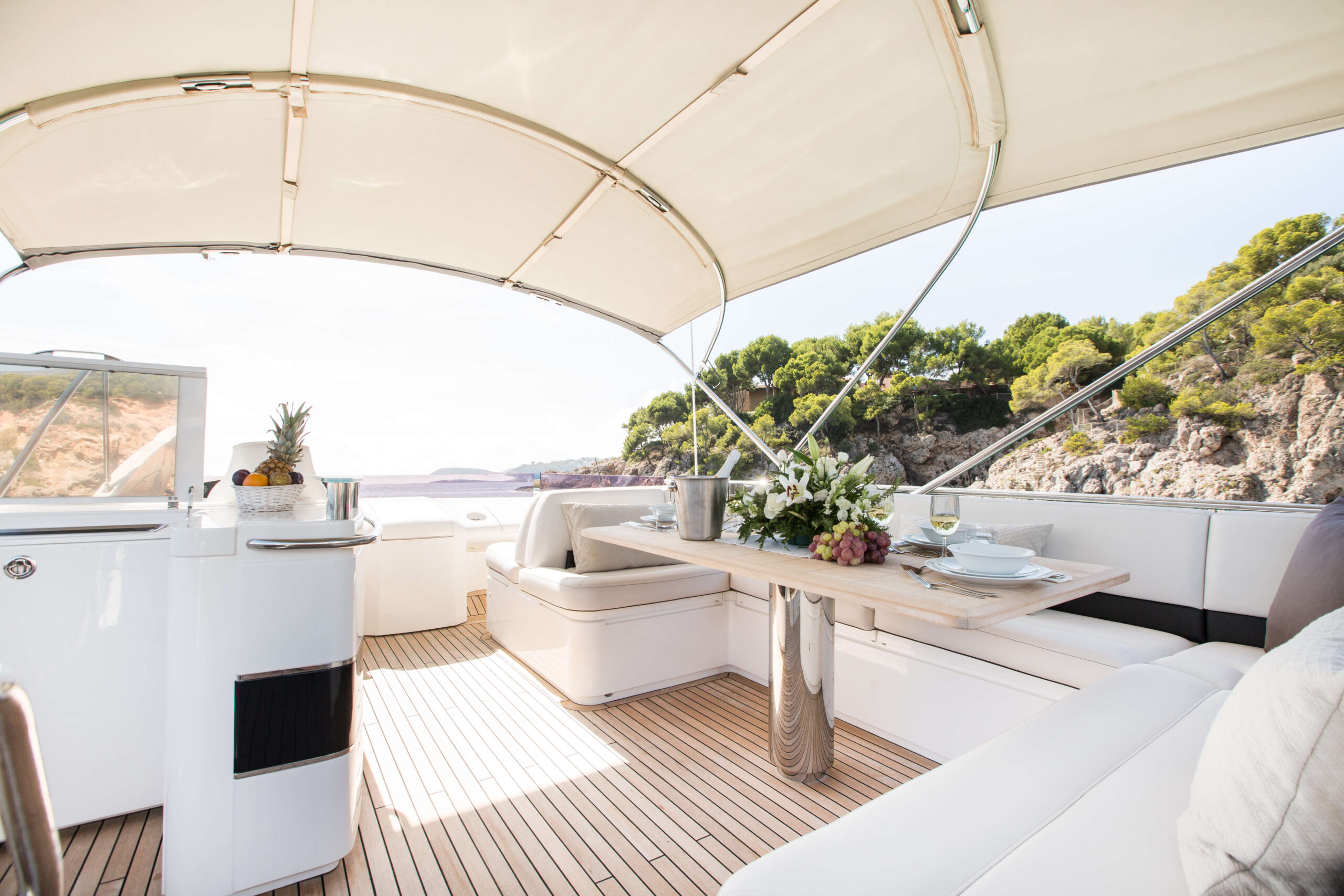

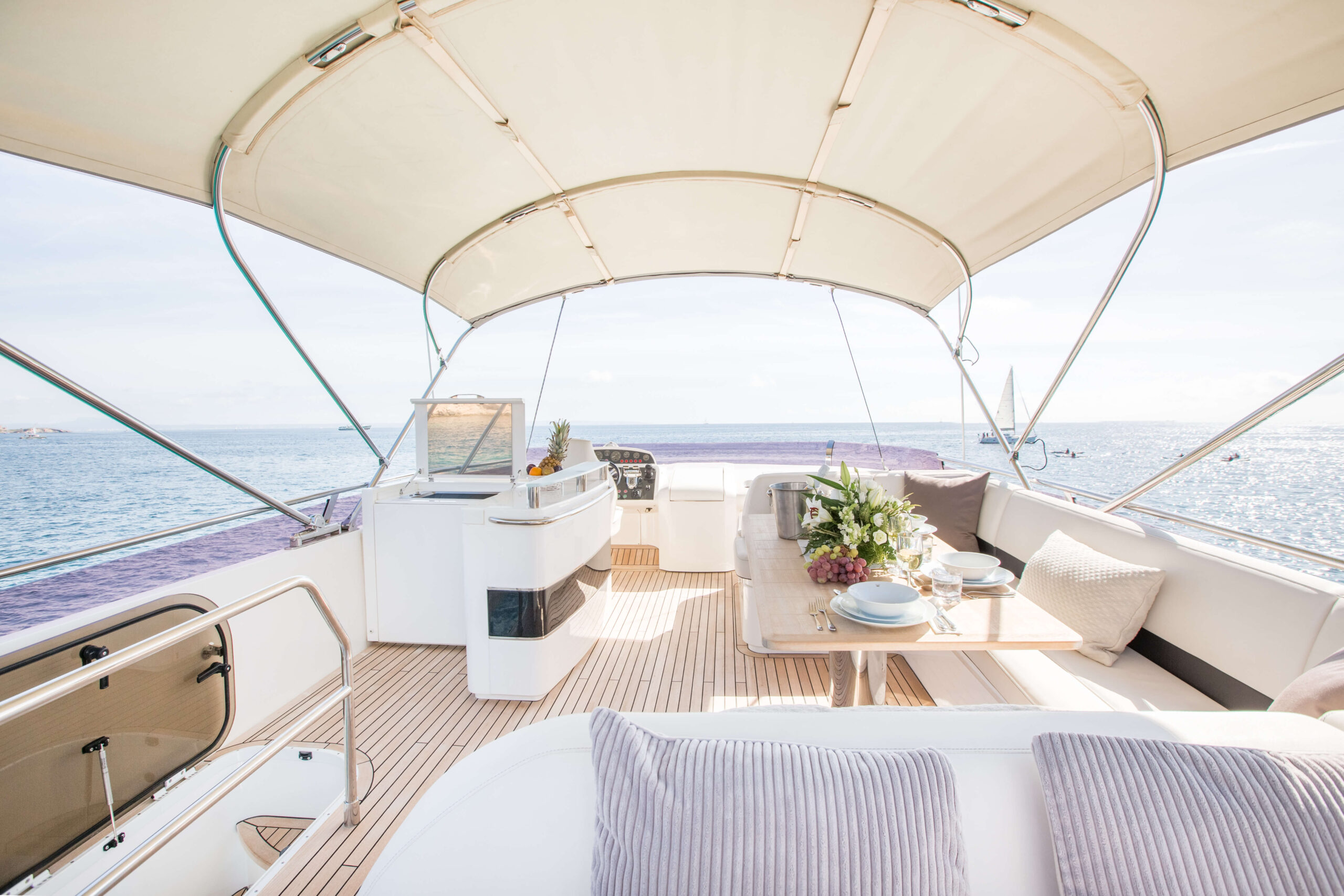

FLYBRIDGE

• Dual station instruments and controls (see Lower Helm Position)

• Double helm seat

• Full L-shaped wetbar with barbecue, sink, drawer fridge, waste bin and storage

• Large U-shaped seating area with teak table

• Raised sunbed aft with storage below

• Stereo radio, iPod/MP3 dock

• Hatch to cockpit stairway

• Wind deflector screens

• Stainless-steel handrails

• Deck-level lighting

• GRP radar arch

• Console and seat covers

• Twin matching whip aerials for VHF R/T and radio

• Bilge pump audible alarm

LOWER HELM POSITION

• Twin helm seats with fore and aft adjustment for helmsman

• Instrument console with engine instruments, fuel gauges

• Dual station instruments and controls at Flybridge and Lower Helm Position:

• rudder position indicator

• electronic engine controls

• power-assisted electro-hydraulic steering with adjustable steering wheel

• bow thruster control

• electric anchor winch remote control

• trim tab controls with indicators

• autopilot

• VHF with DSC R/T with intercom

LOWER HELM POSITION (continued)

• colour radar and GPS/chartplotter (lower helm only – flybridge has multiview instrument for GPS)

• speed and distance log

• echo sounder with alarm

• remote control searchlight

• high-speed magnetic compass

• horn button

• Chart table with light and chart stowage

• Windscreen wipers with windscreen wash

• Bilge pump controls

• 24v and 240v control panels

• PVC sunscreens

• Helmsman’s sliding door to starboard side deck

• 12v outlet

• Red night lighting

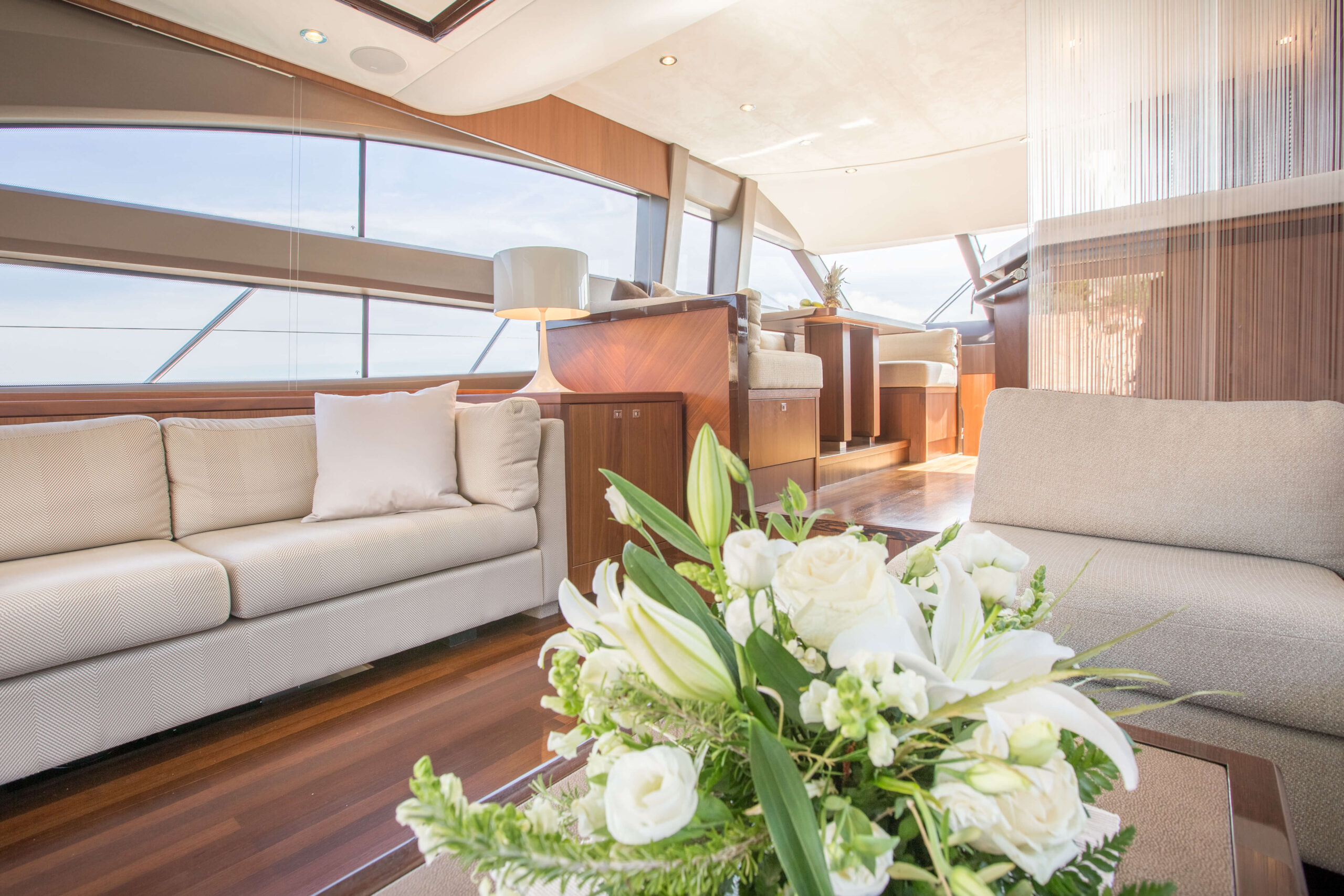

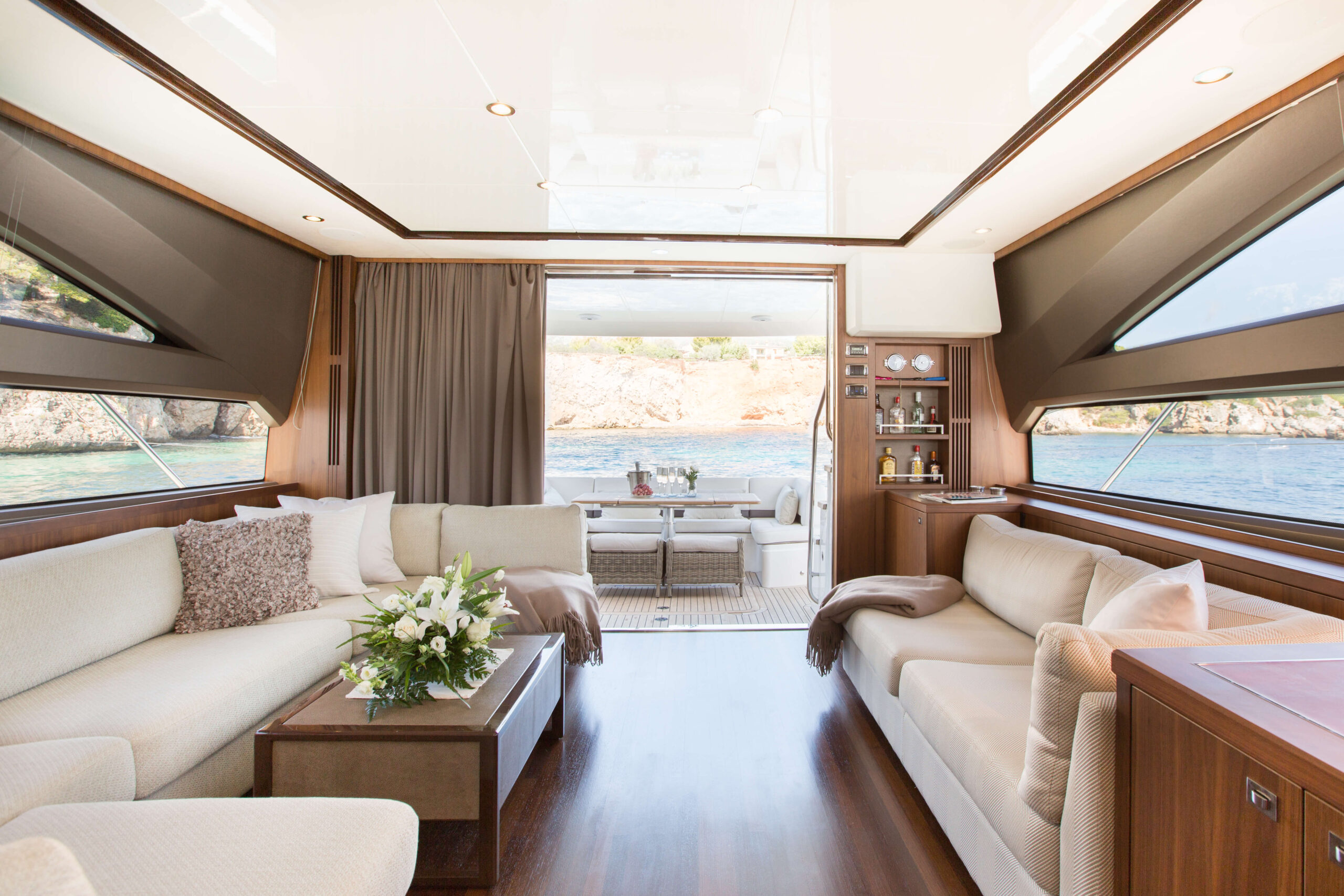

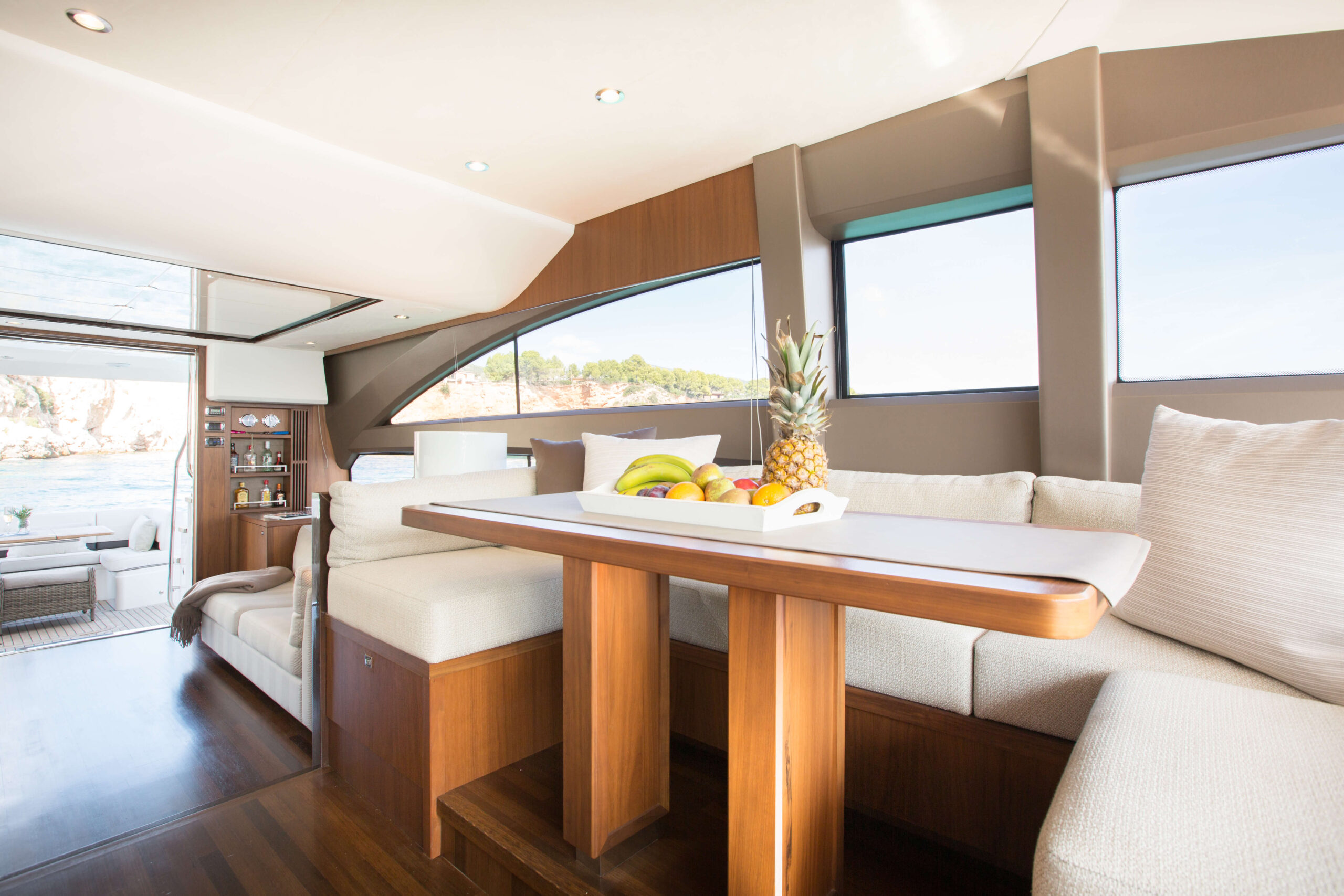

DECK SALOON

• U-shaped sofa with coffee table to starboard with sofa opposite

• Entertainment centre incorporating LED TV/DVD/radio/MP3 with surround sound system and with electric raise/lower mechanism for TV and also incorporating refrigerator and bottle and glass storage

• Venetian blinds, roman blinds, curtains or sunscreens to all windows and doors

• Overhead downlighters and pelmet lights

• Stainless-steel framed aft cockpit door

• Electric drop window to port side

• Dining area with table with seating for 6/7 and storage drawer below

GALLEY

• Avonite (or similar) worktop

• Ceramic 4-zone hob with air extractor unit

• Combination microwave/conventional oven with grill

• Twin-bowl stainless-steel sink with mixer tap

• Full height refrigerator/deep freeze (24v/240v)

• Icemaker

• Dishwasher

• Waste disposal bin

• Overhead and concealed lighting

• Drawers and storage cupboards

• Electrically operated sliding glass partition

ACCOMMODATION

• All cabins feature opening portholes and 240v power points

• All bathrooms feature electric quiet flush toilets and 240v shaver points

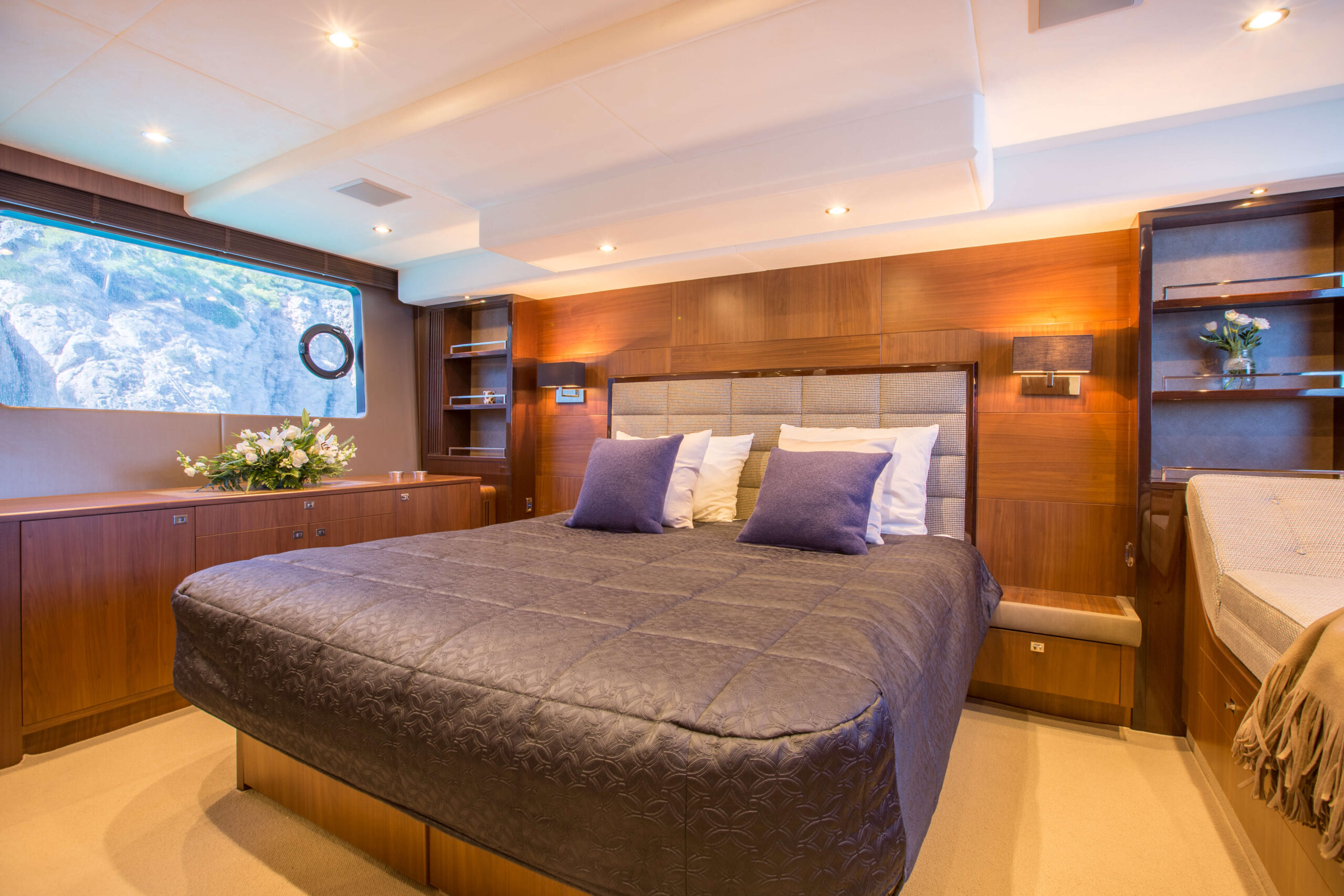

OWNER’S STATEROOM

• Full width stateroom with large double bed with drawers below

• Twin bedside tables

• Large wardrobe

• Mirror

• Sofa

• Dressing table

• LED TV/DVD/radio/MP3

• Shelves, drawers and storage lockers

• Downlights and individual berth lights

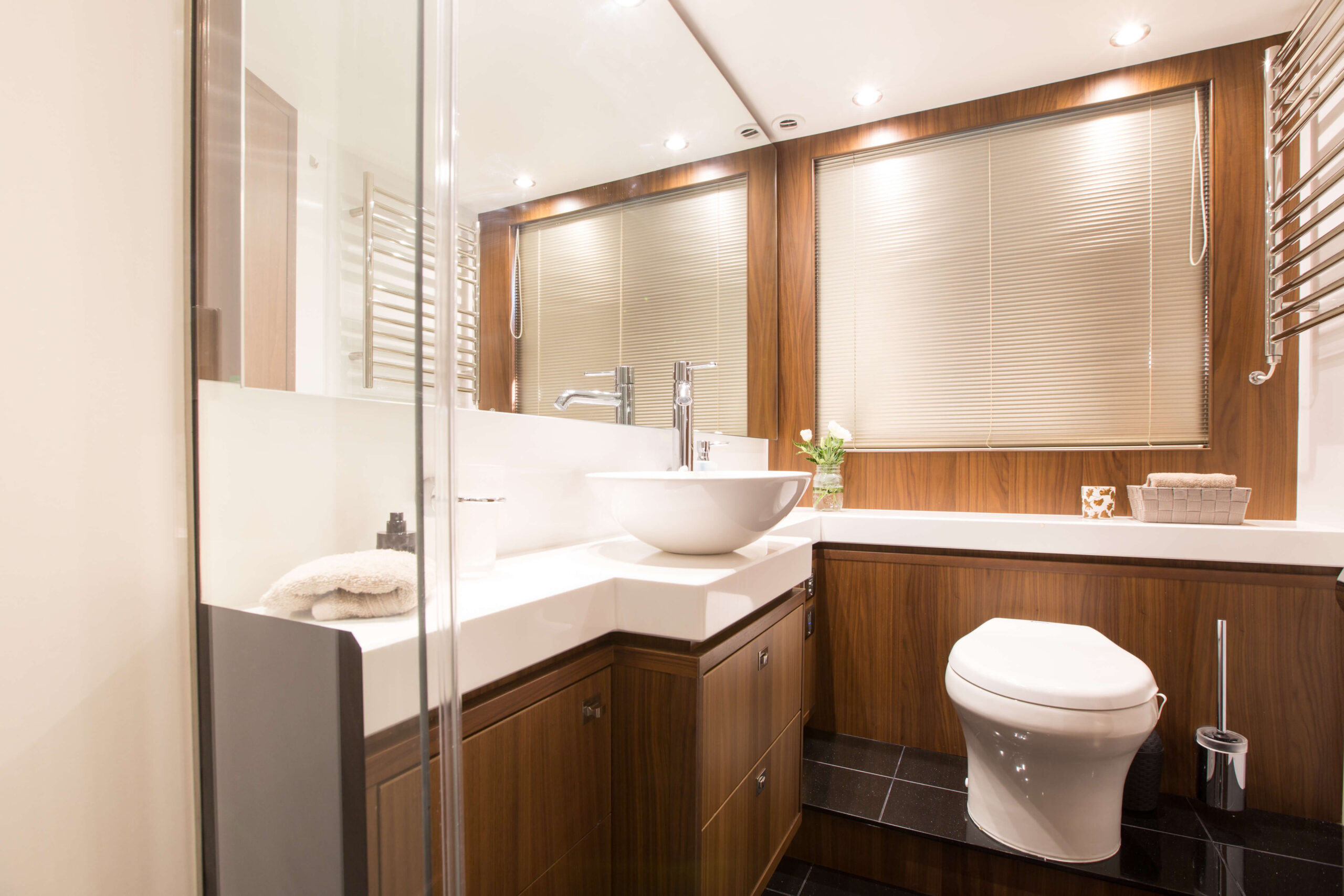

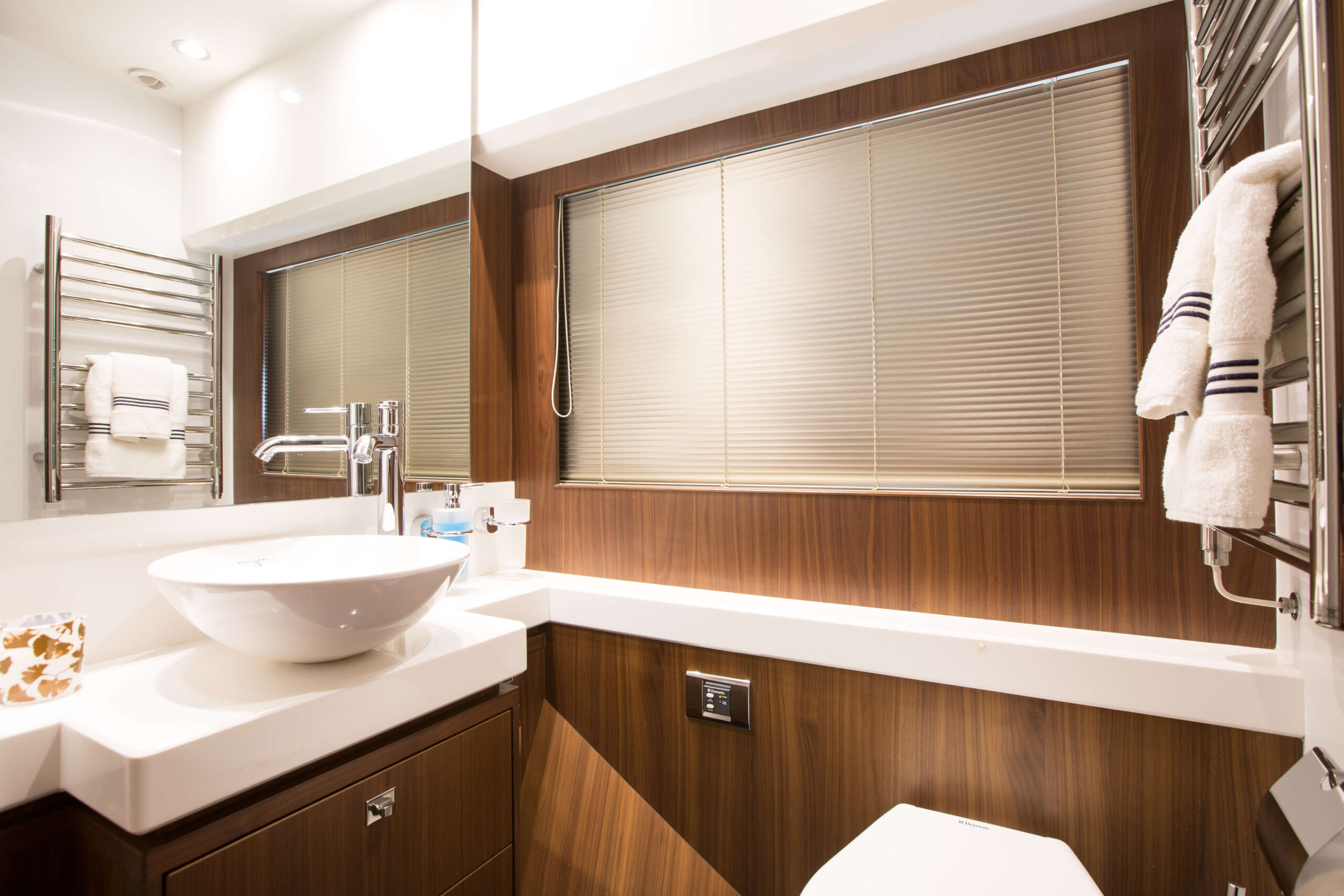

En-suite bathroom:

• Washbasin with mixer tap

• Separate stall shower with automatic pump-out

• Extractor fan

• Mirror

• Storage lockers

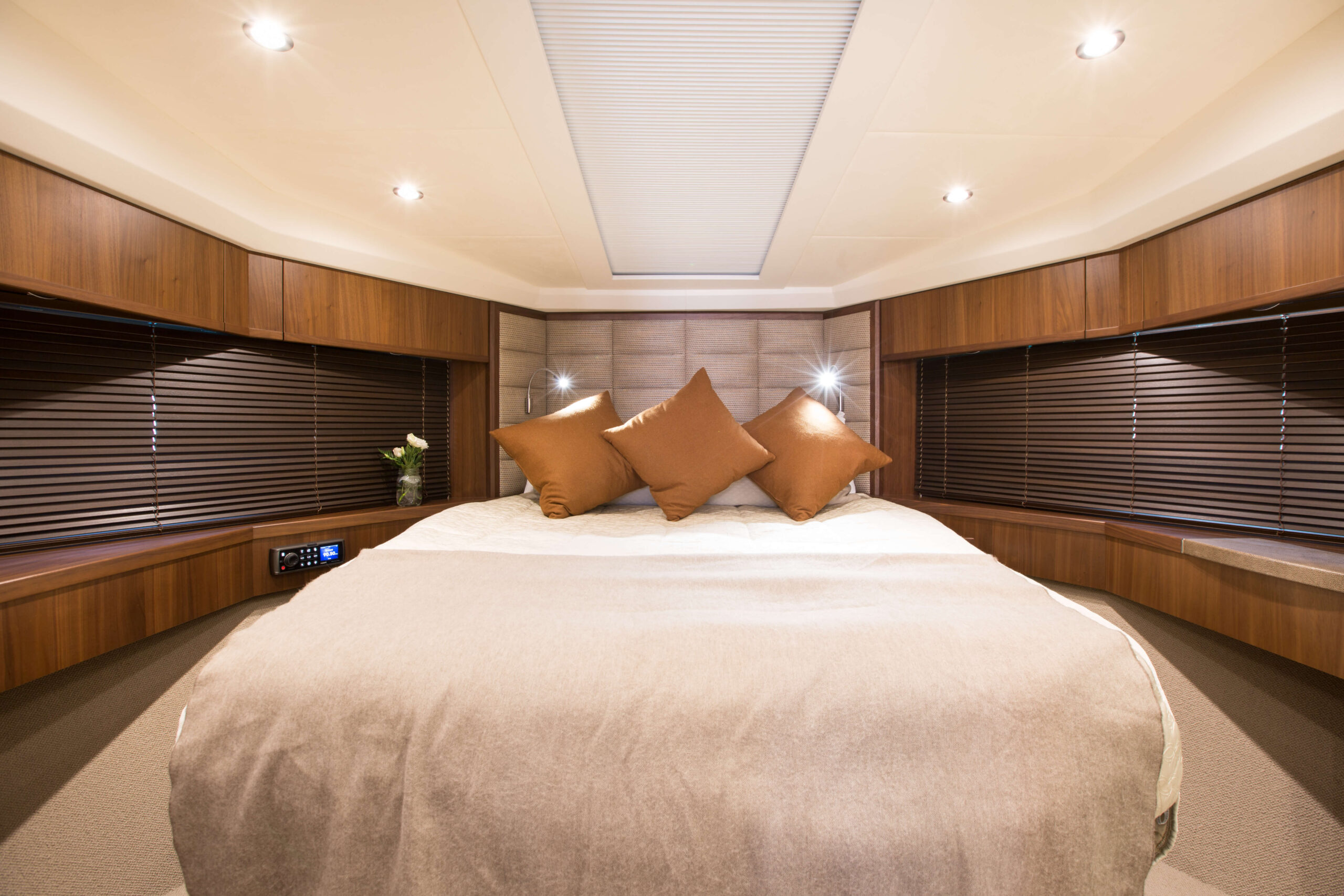

FORWARD GUEST CABIN

• Large double bed with drawers below

• Wardrobes and shelves

• Full length mirror

• Dressing table

• Storage lockers and drawers

• Downlighters, concealed lights and individual berth lights

• Deck hatch with skylight and electric blind

• Stowage location for dinette stools (2)

FORWARD GUEST CABIN (continued)

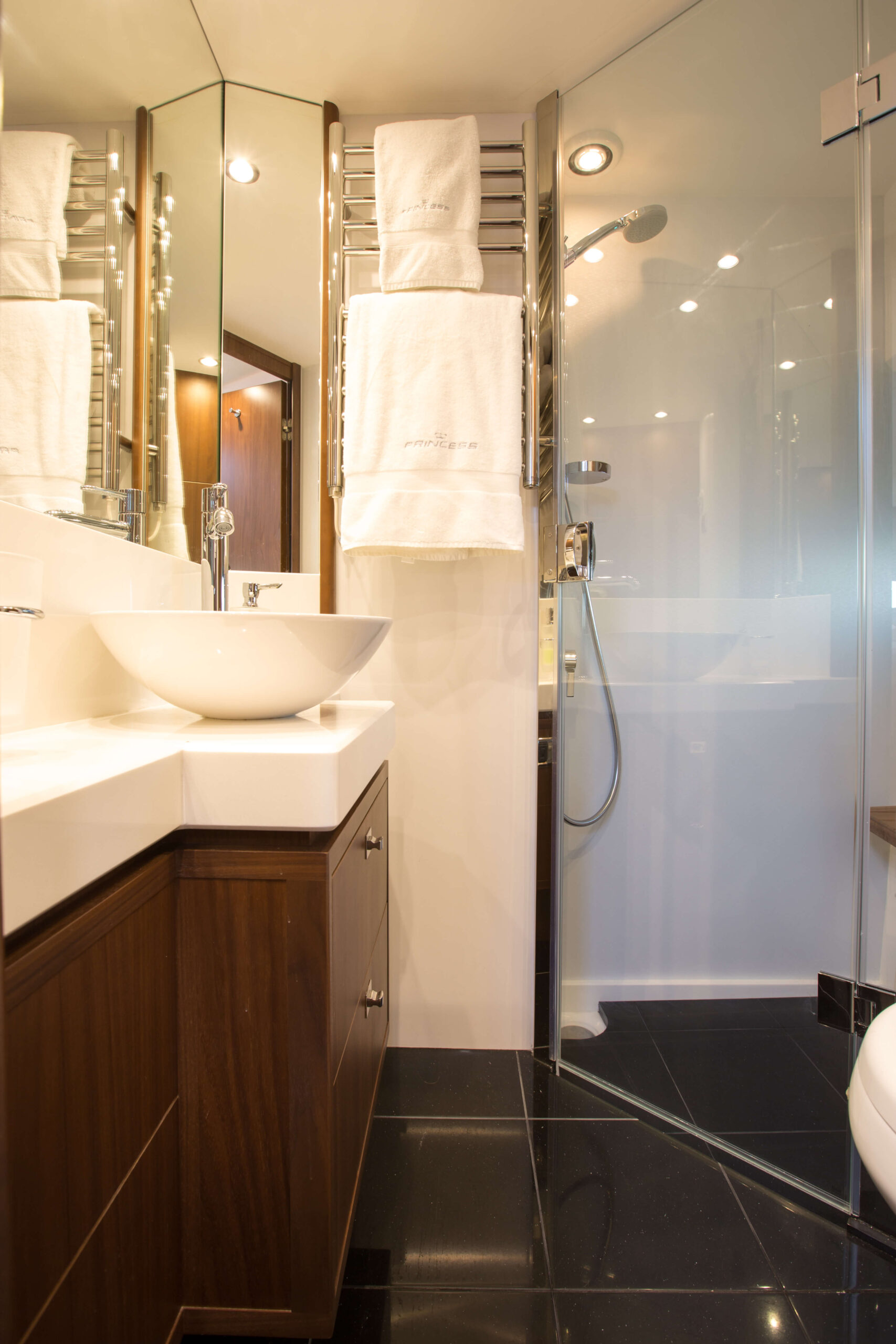

En-suite bathroom:

• Washbasin with mixer tap

• Separate stall shower with automatic pump-out

• Extractor fan

• Mirror

• Storage lockers

STARBOARD GUEST SUITE

• Two single berths with storage

• Optional electrically powered sliding berths to create double berth

• Bedside table with storage

• Large wardrobe with hanging space and shelf storage

• Storage lockers

• Downlighters and individual berth lights

En-suite bathroom:

• Washbasin with mixer tap

• Separate stall shower with automatic pump-out

• Extractor fan

• Mirror

• Storage locker

• Additional access door from passageway

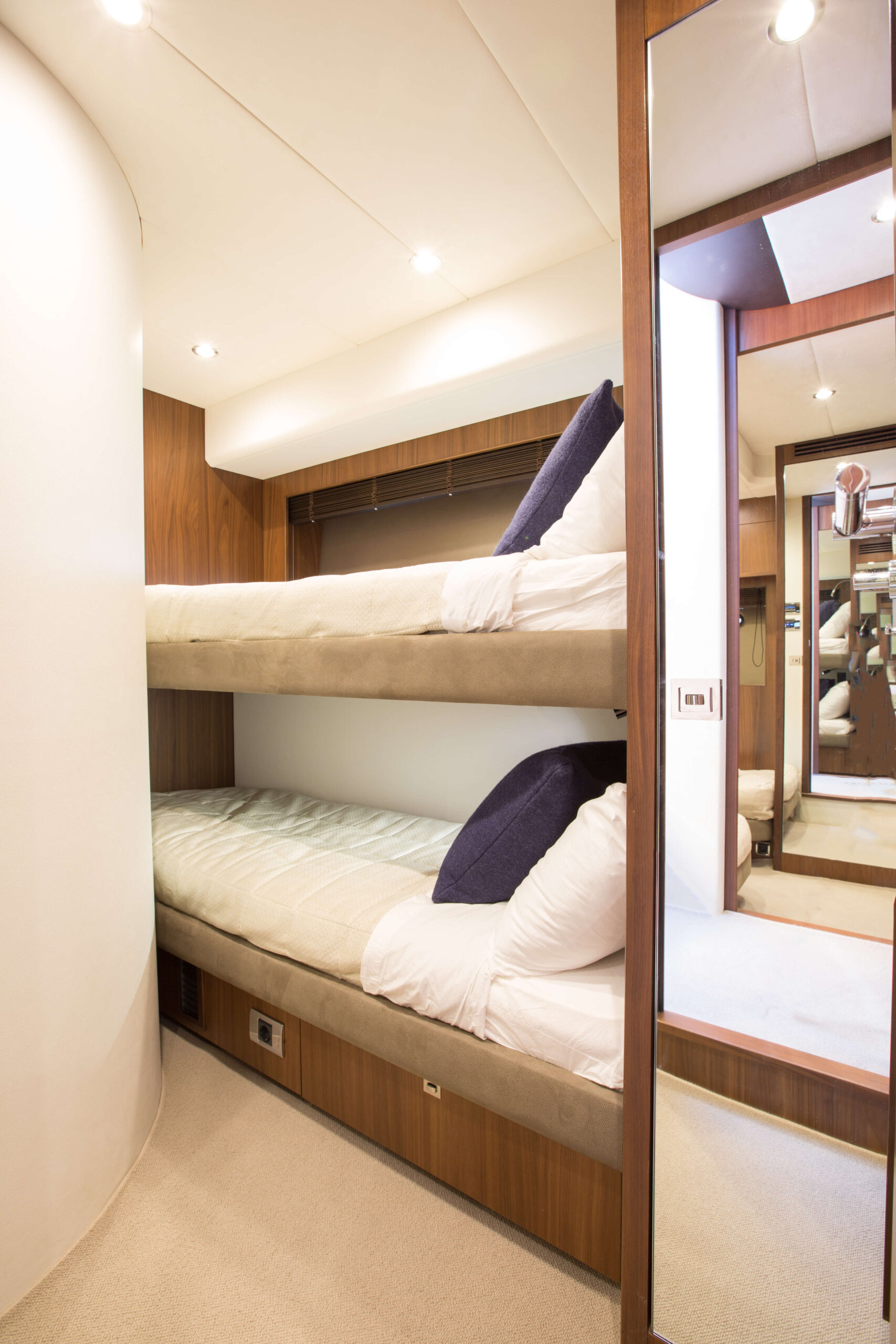

PORT GUEST CABIN

• Two full length berths with storage below

• Wardrobe with shelf

• Storage cupboards with shelves

• Downlighters and individual berth lights

OPTIONAL STUDY LAYOUT

• The port guest cabin can be changed to a study layout comprising a desk with chair at the aft end and a two seater sofa forward. If required an LED TV/DVD and radio/iPod/MP3 player can be fitted above the desk and an internet connection point also fitted in this area. The study area incorporates lockers, cupboards and a filing drawer

LAUNDRY AREA

• Washer/dryer with storage shelves above located in lobby to owner’s cabin. Alternatively a separate dryer can be installed above the washing machine

OPTIONAL AFT CABIN

• Two full-size single berths

• Hanging and storage space

• Downlighters and individual berth lights

• Opening portholes and transom window

• Bathroom compartment with WC, separate stall shower and washbasin

POWER AND DRIVE SYSTEMS

• 5-bladed propellers in nickel aluminium bronze

• Bow thruster (170kgf) with dual-station controls

• Engine room lighting

• Engine room access hatch and ladder

• Power-assisted electro-hydraulic steering system

• Trim tabs with indicators

• Electronic engine and gear shift controls

• Engine room extractor fan with electronic time delay

• Fresh water supply point in engine room

• Dripless shaft seals

ELECTRICAL SYSTEMS

24 Volt:

• 4 x heavy-duty batteries for engine starting

• 6 x heavy-duty auxiliary batteries

• Battery link facility with remote control at helm position

• Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present

• 100 amp 24v battery charger

• Remote battery master switches with control switch at main switch panel

• Circuit breakers on all circuits

• 12v voltage dropper for certain navigation and radio circuits

ELECTRICAL SYSTEMS (continued)

220/240 Volt:

• 11kW generator in own sound shield with water-cooled and specially silenced exhaust

• Automatic fire extinguisher situated by generator

• 50 amp shore support inlet

• Generator/shore support change-over switch

• Polarity check system

• Earth leakage safety trip

• Circuit breakers on all circuits

• Power points (240v) in owner’s suite, guest cabins, galley and saloon area

• Shaver points in all bathrooms

FUEL SYSTEM

• Fuel tanks (in NS8 marine grade alloy) with interconnection system giving 783 gallons/ 940 US gallons/3360 litres capacity

• Fuel fillers on port and starboard side decks

• High-capacity duplex fuel filters with water traps and change-over valves, water warning sensors connected to warning lights at lower helm

• Remote fuel cocks in cockpit locker

• Fuel gauges at main helm console

WATER SYSTEM

• Water tanks totalling 184 gallons/221 US gallons/ 836 litres plus 16 gallons/19 US gallons/73 litres hot water calorifier

• Water heated by engines and 240v immersion heater

• Automatic water pump with filter

• Main circuit breaker at switch panel

• Water level gauge

• Deck filler

• Electric quietflush WC system with 60 gallons/72 US gallons/272 litres holding tank, content gauge and low noise electric overboard discharge, with macerator back-up system as well as dockside discharge system

FIRE EXTINGUISHERS

• Automatic fire extinguishers in engine room and generator space

• Hand-operated fire extinguishers (6) in owner’s suite, forward, port and starboard guest cabins, galley and lower helm position

• Additional extinguisher fitted when optional aft cabin is specified

BILGE PUMPS

• Automatic/manual override electric bilge pumps in engine room (2), rudder area, lazarette and forward accommodation (7 in all)

• High-capacity manual bilge pump with valve system and suction points in same areas

• Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm

OTHER ITEMS SUPPLIED AS STANDARD

• Set of cutlery, crockery and glasses

• Set of towels (8 large, 8 hand)

• Fenders (6) and warps (4)

• Ensign staff

• First aid kit

• Boathook

• Owner’s manual and engine manual and tools

• Quilted bedspreads for beds in owner’s stateroom and port and starboard cabins

• Ship’s document case

PRINCESS 64
