Bluegame
BGX70 #01

Hull Deck Construction
Molded fiberglass construction made with iso­ neopentilic gelcoat 1,5 mm surface, skin coat of vinylester resin ;
Bottom huil in monolithic lamination made with biaxial, quadriaxial glass and ISO DCPD polyester resin
Sandwich care construction on side huil and deck plans;
Sandwich structural bulkheads vacuum;

DECK
Deck and superstructure made on sandwich and infusion technology with vinylester resin.
Twin fiberglass doors covering anchor system
Anchor 45 Kg SS
Bow roller custom design S/S
Galvanized chain 12 mm 100 mt. Anchor safety cable
Electric anchor winch 2000w
Electric mooring winch 1500w
Two S/S fairlead
Four stainless steel cleats 350 mm
Two stainless steel cleats 300 mm
Fresh water outlet connection
Teak deck
Access to crew cabin at the bow

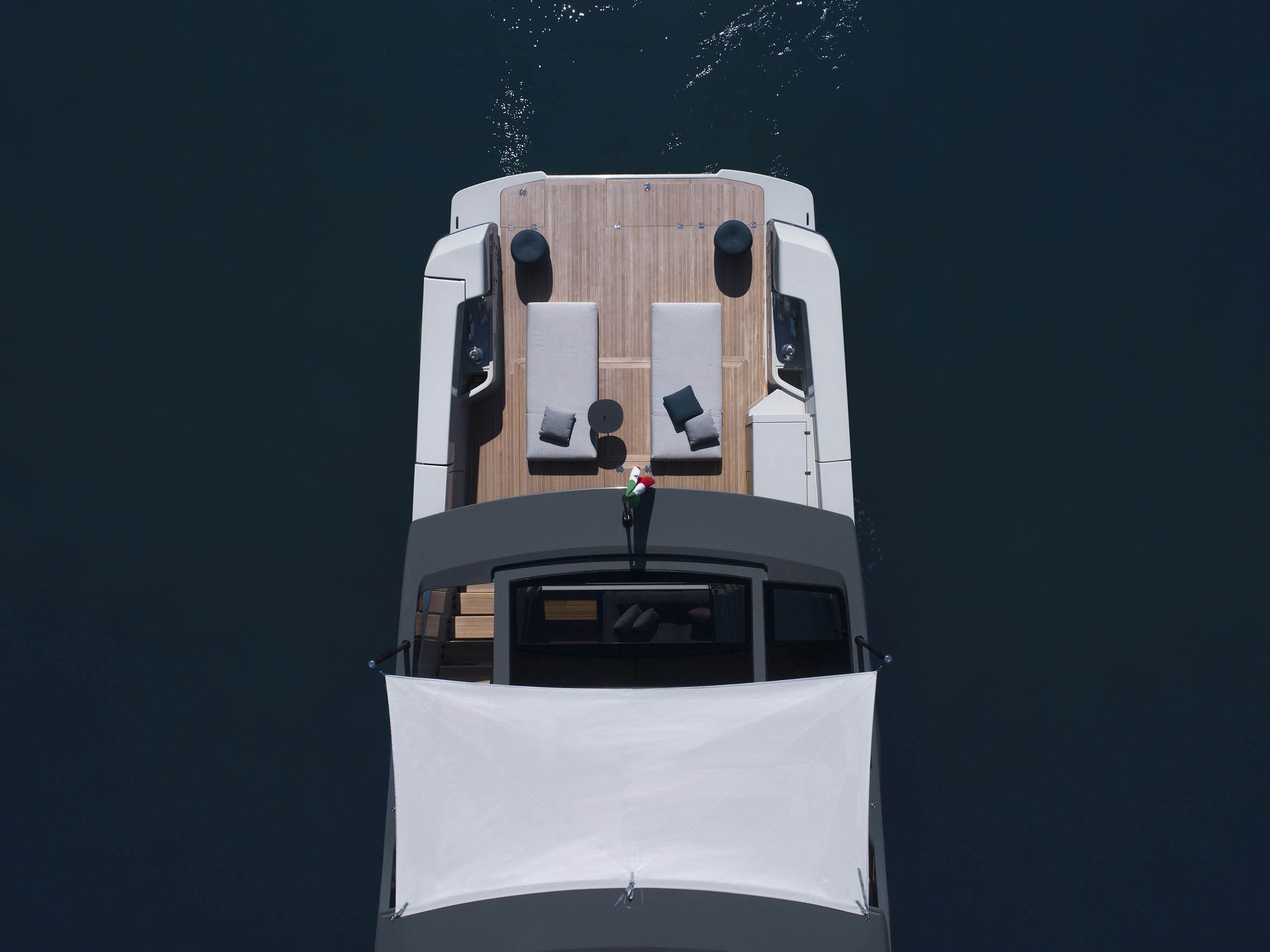

Sun pad area with sliding back rest
Double bow teak table
Bow sofa on bath side Storage
Navigation and anchor lights led system
Courtesy light on walk round
Double diesel inlet
Water inlet
Black water tank drain outlet from share Horn
N^° 2 steel cleats (one for each side) at mid ship
N^° 6 speakers {2 on cockpit 4 on bow)
Upper deck sliding glass door

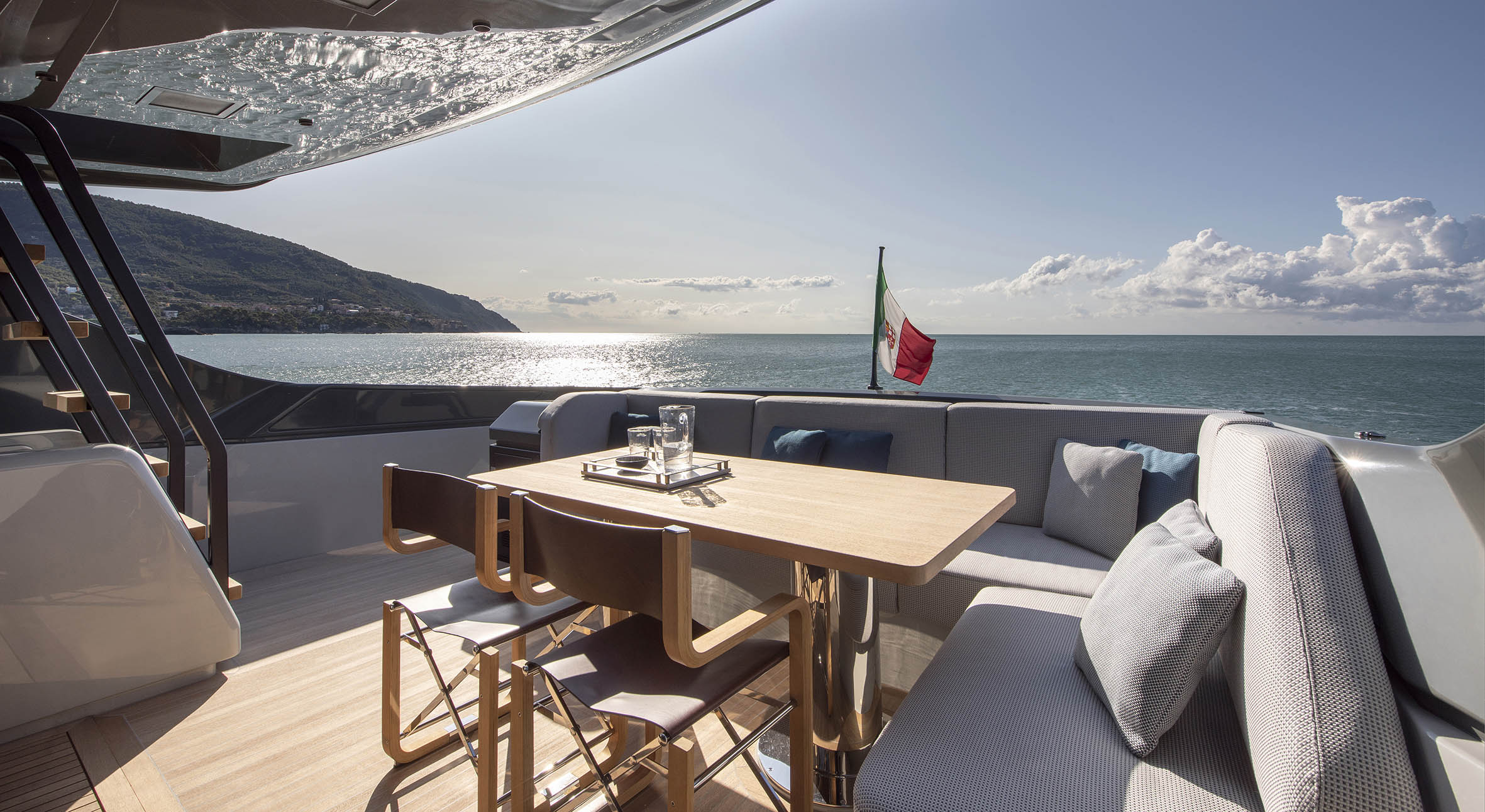

L sofa on stern with hi low teak table
Storage
Stairs for access to sun roof

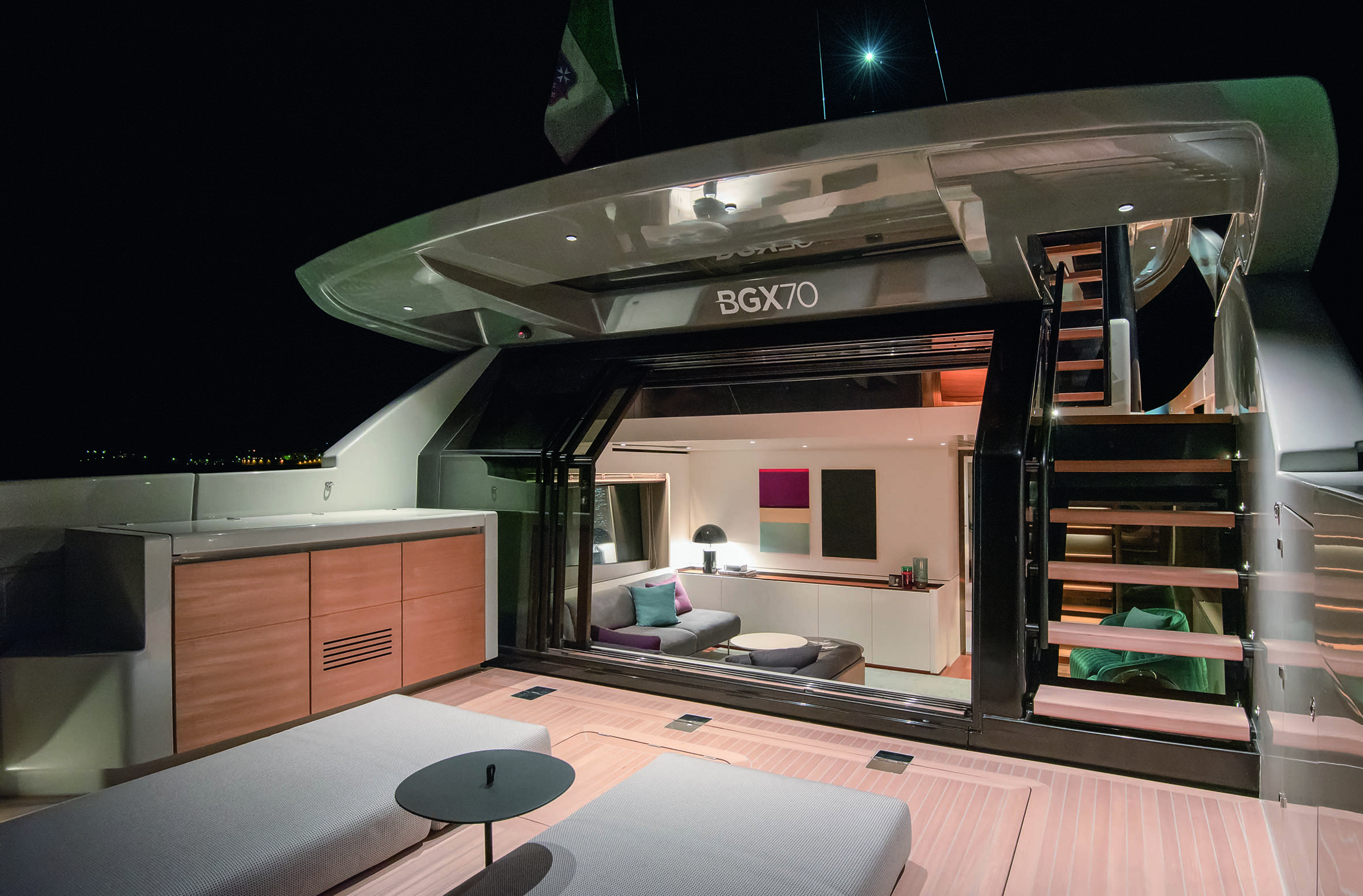

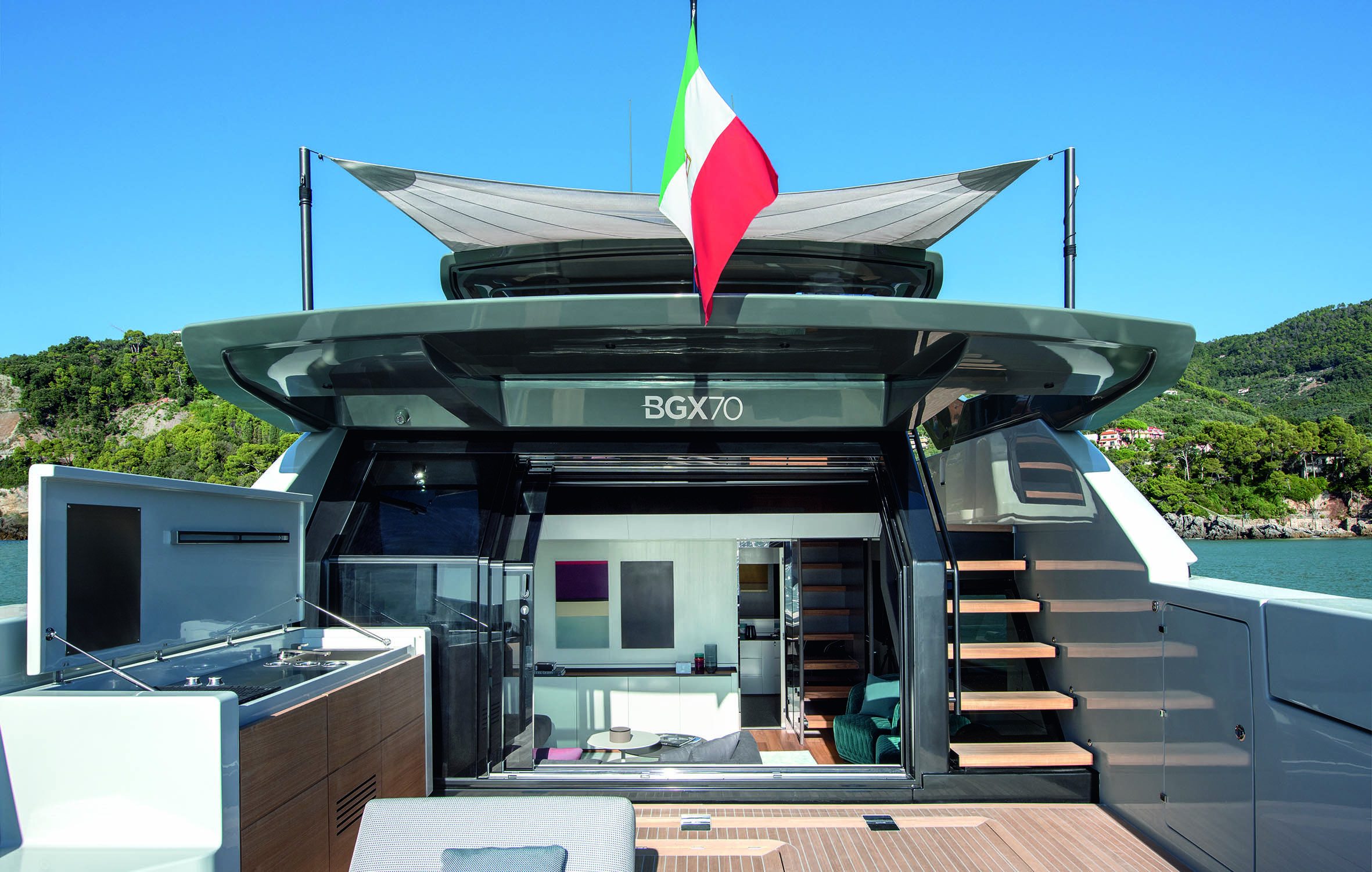

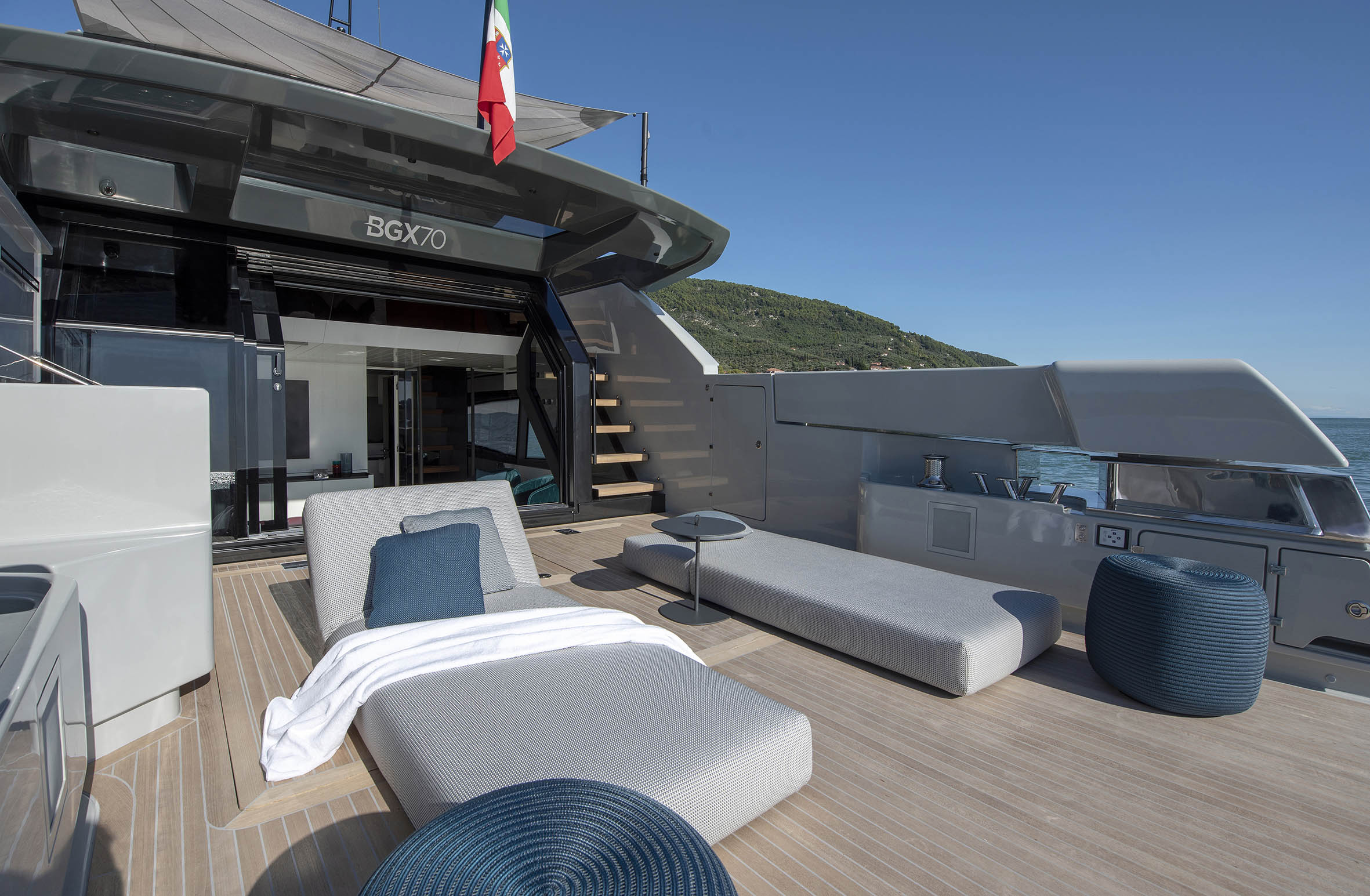

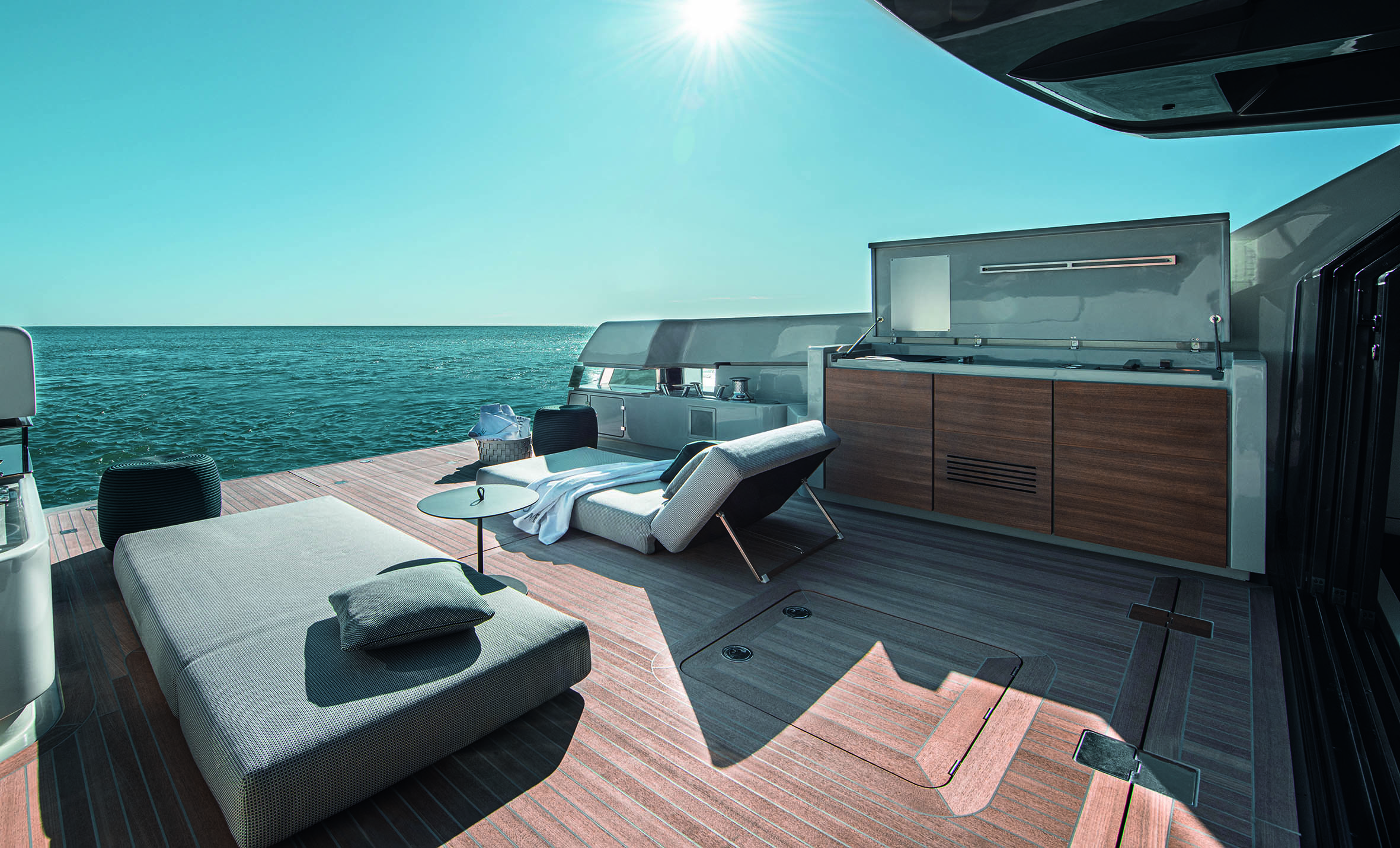

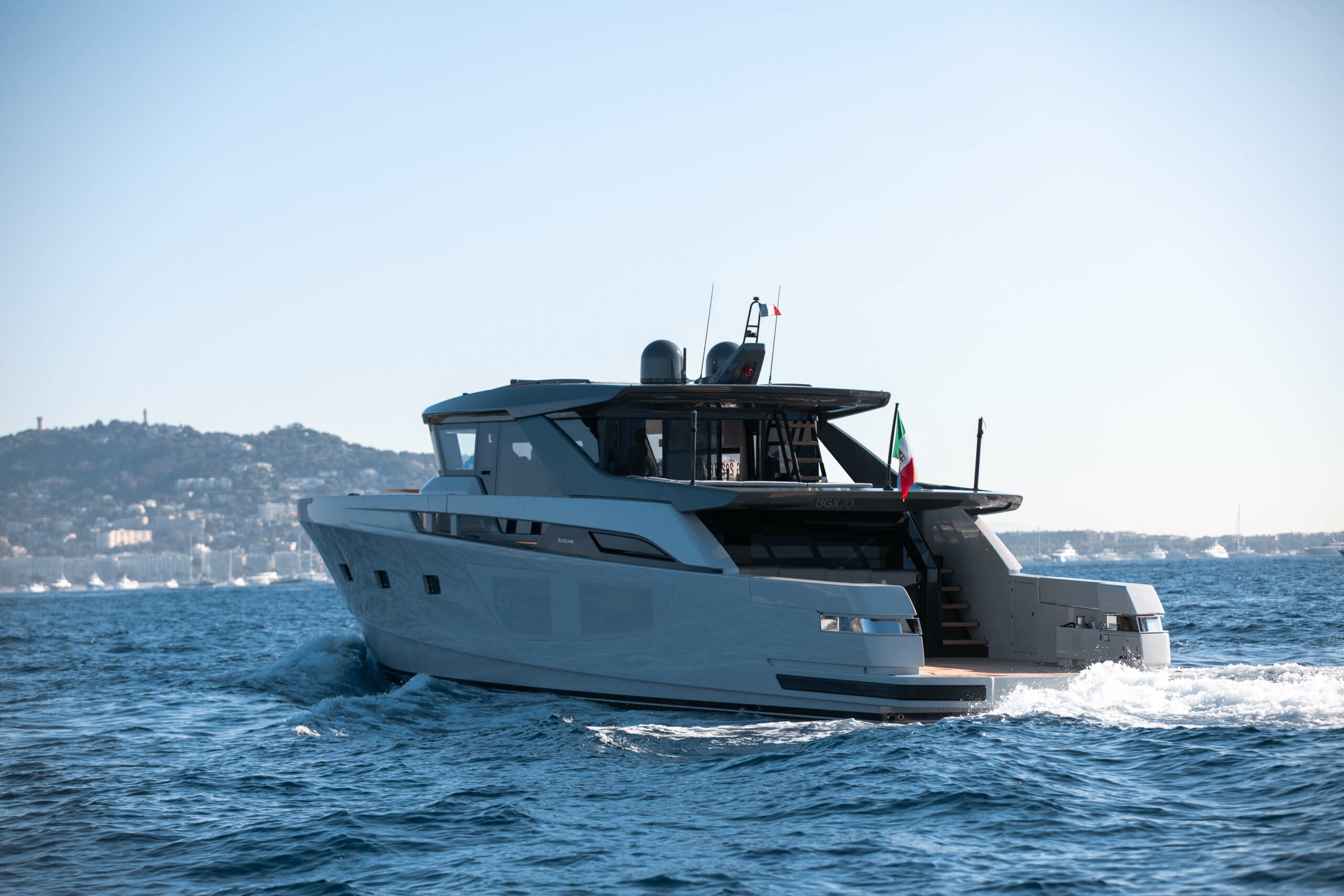

BEACH CLUB AREA
Stairs from beach club area to upper deck
Sofa with storage
Sliding door to main saloon
Side davit KG 500 lift capacity
Retractable gangway with hi low steps
Access to engine room
N^° 2 Stern mooring winches 1500w
Two stainless steel cleats 350 mm
Gaff rack
Hot/cold shower
Teak deck

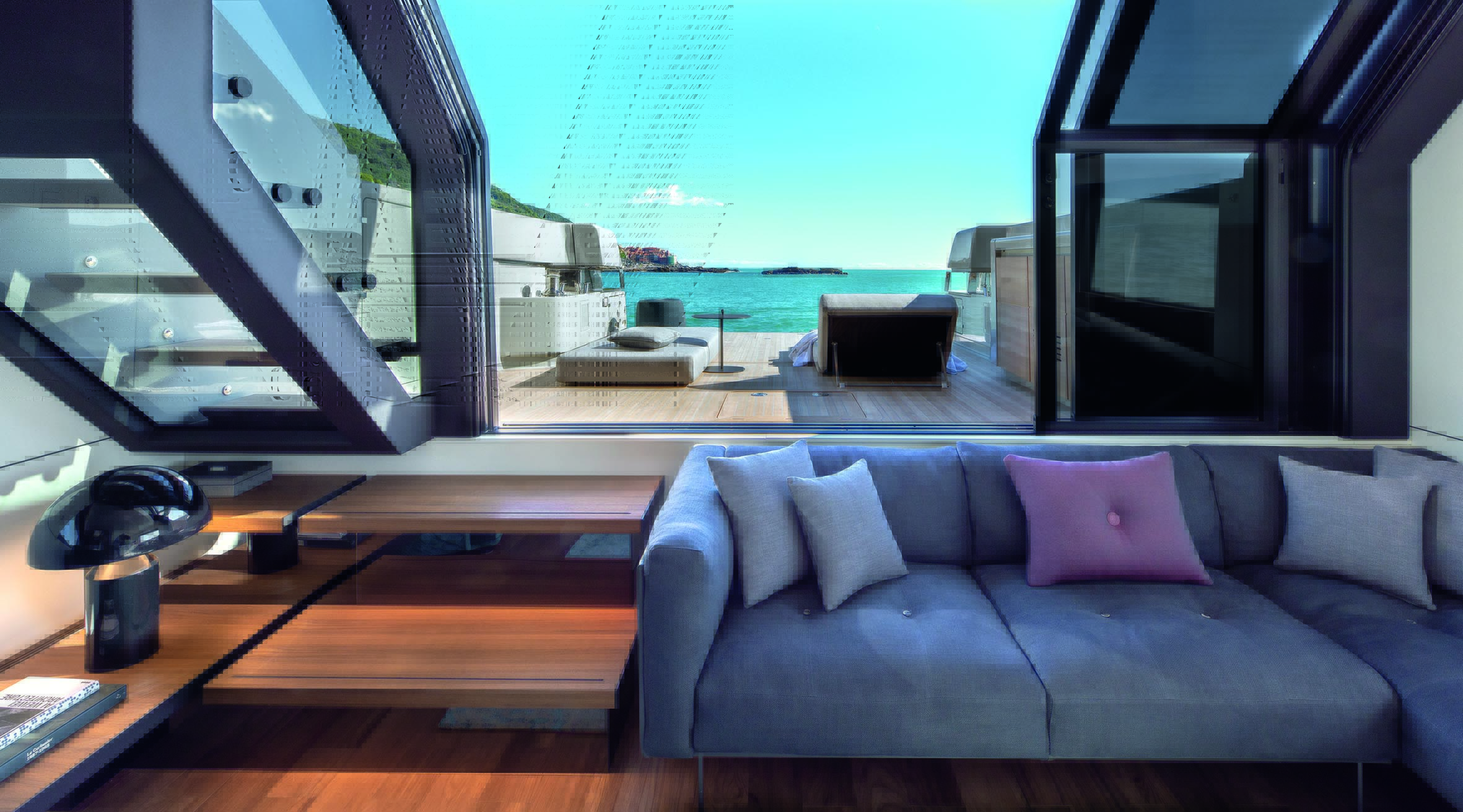

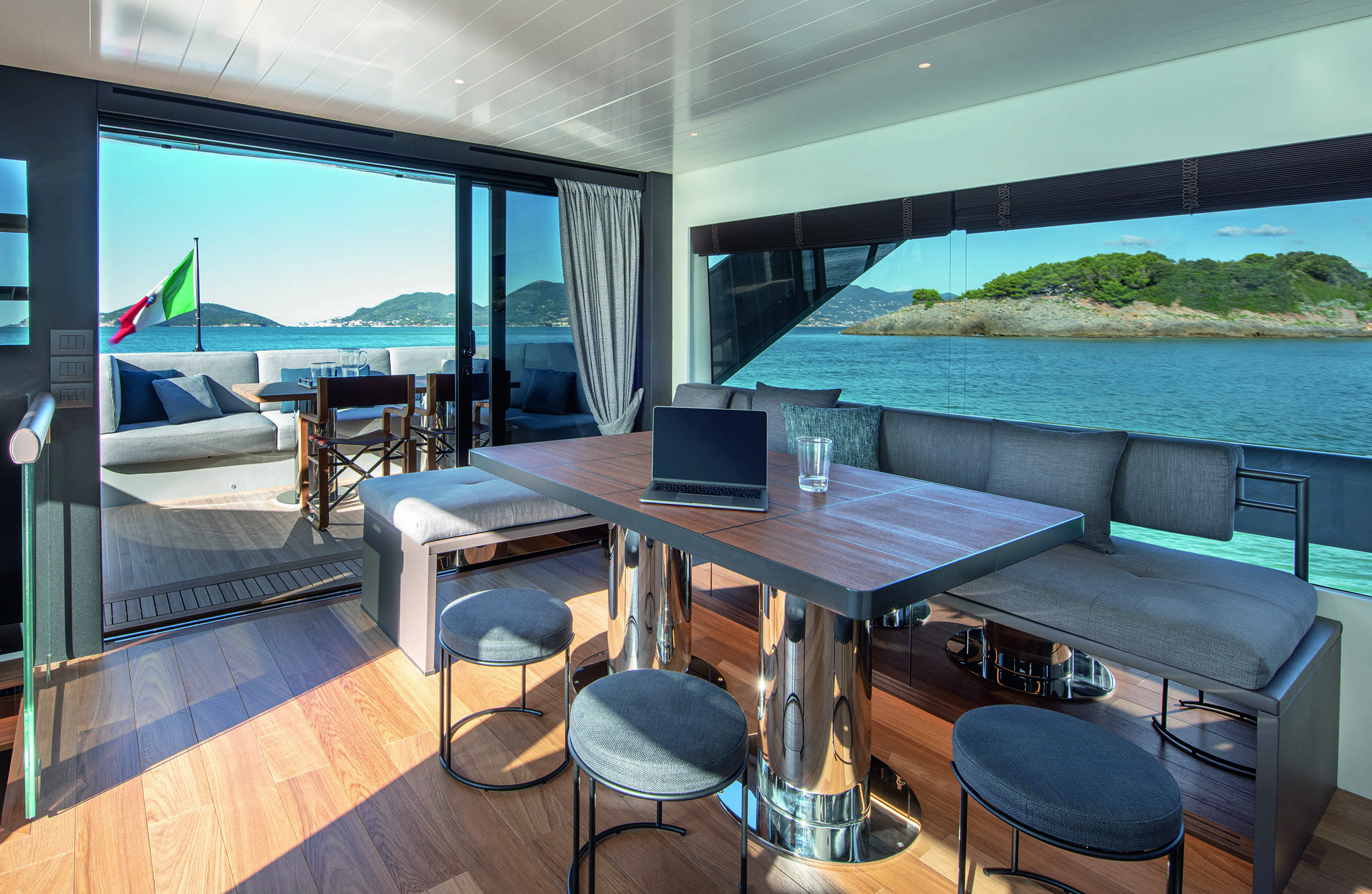

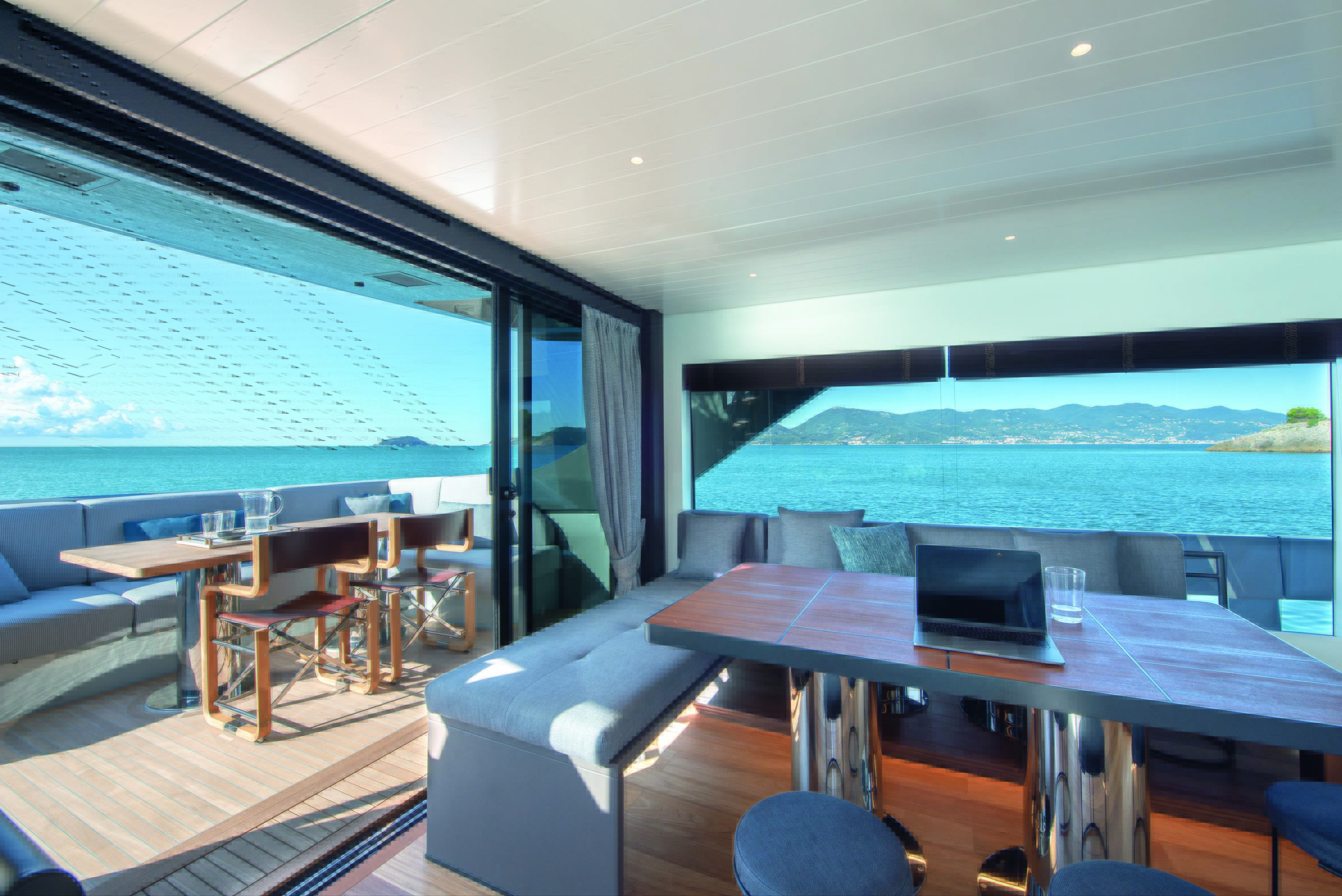

Upper deck enclose area
Sliding glass door
Wooden floor
Blinds
Led lights with dimmer
L sofa with table and 3 chairs/stools

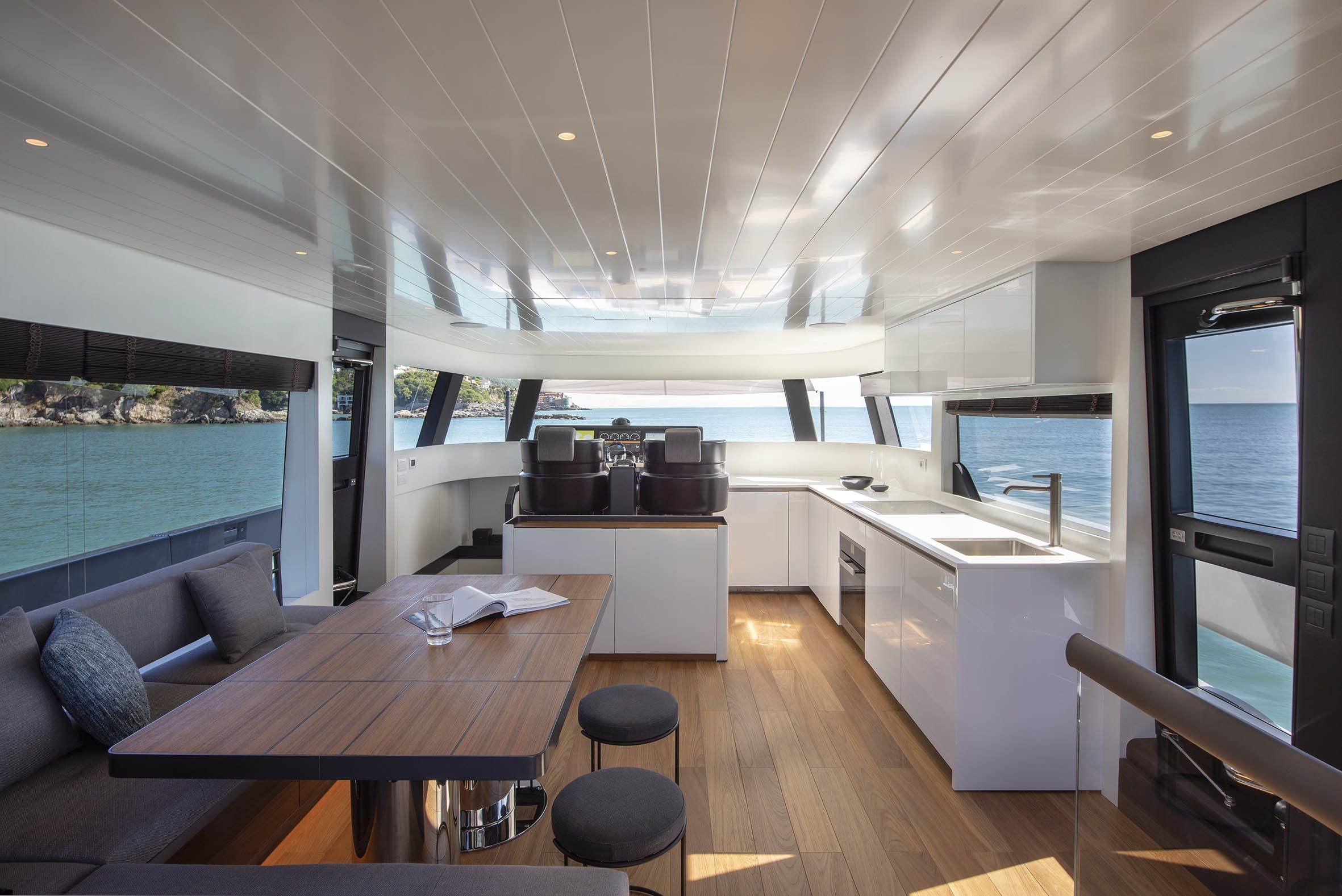

Galley with:
Painted overhead cabinet
Lower painted cabinet with storage
Sink with mixer tap
Synthetic worktop
Four zone electric induction cooktop
Oven
Refrigerator
Freezer
Dishwasher
Hood
Power sockets
Trash compartment
Double pilot seat
Storages behind of the pilot seat

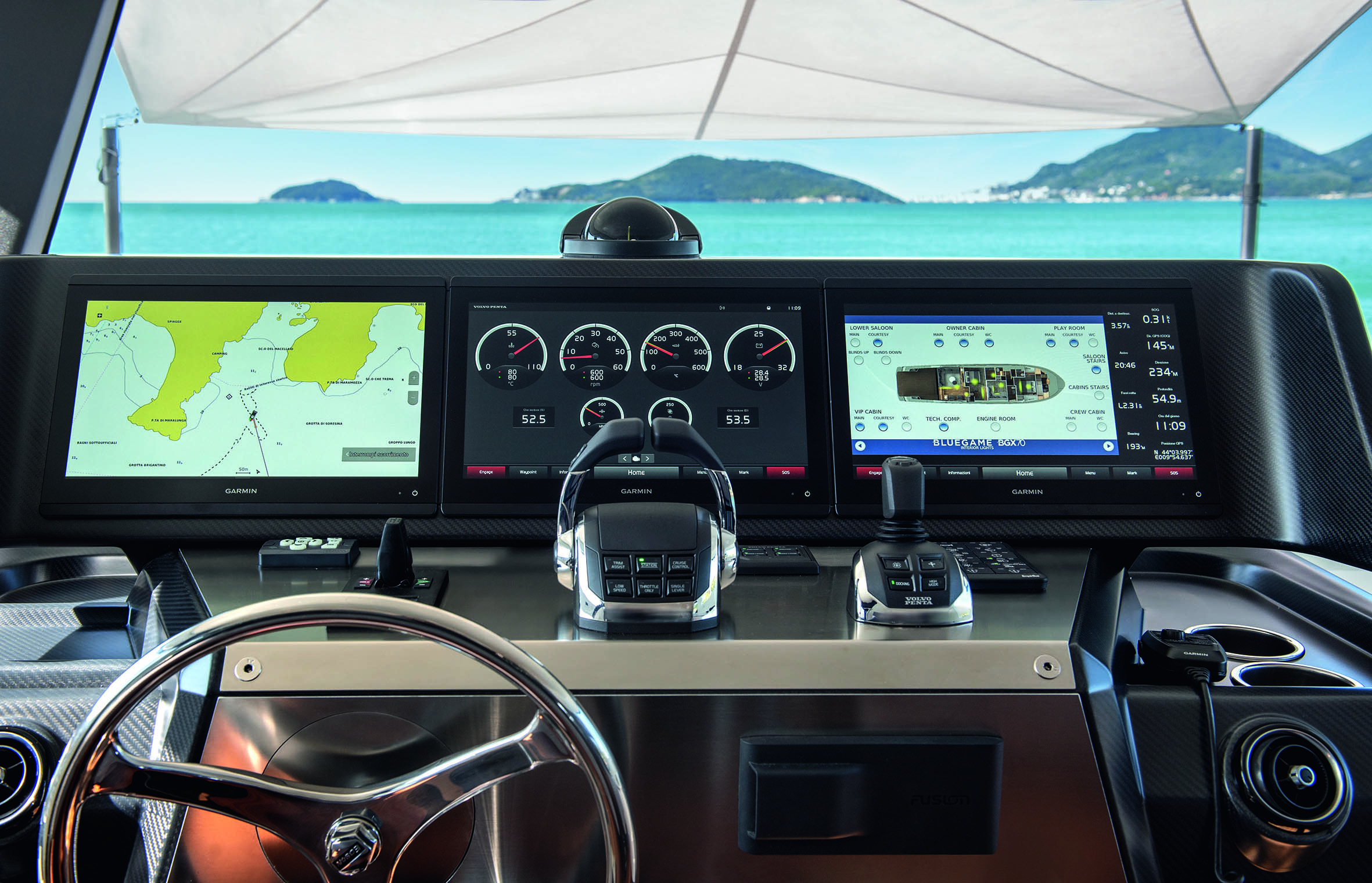

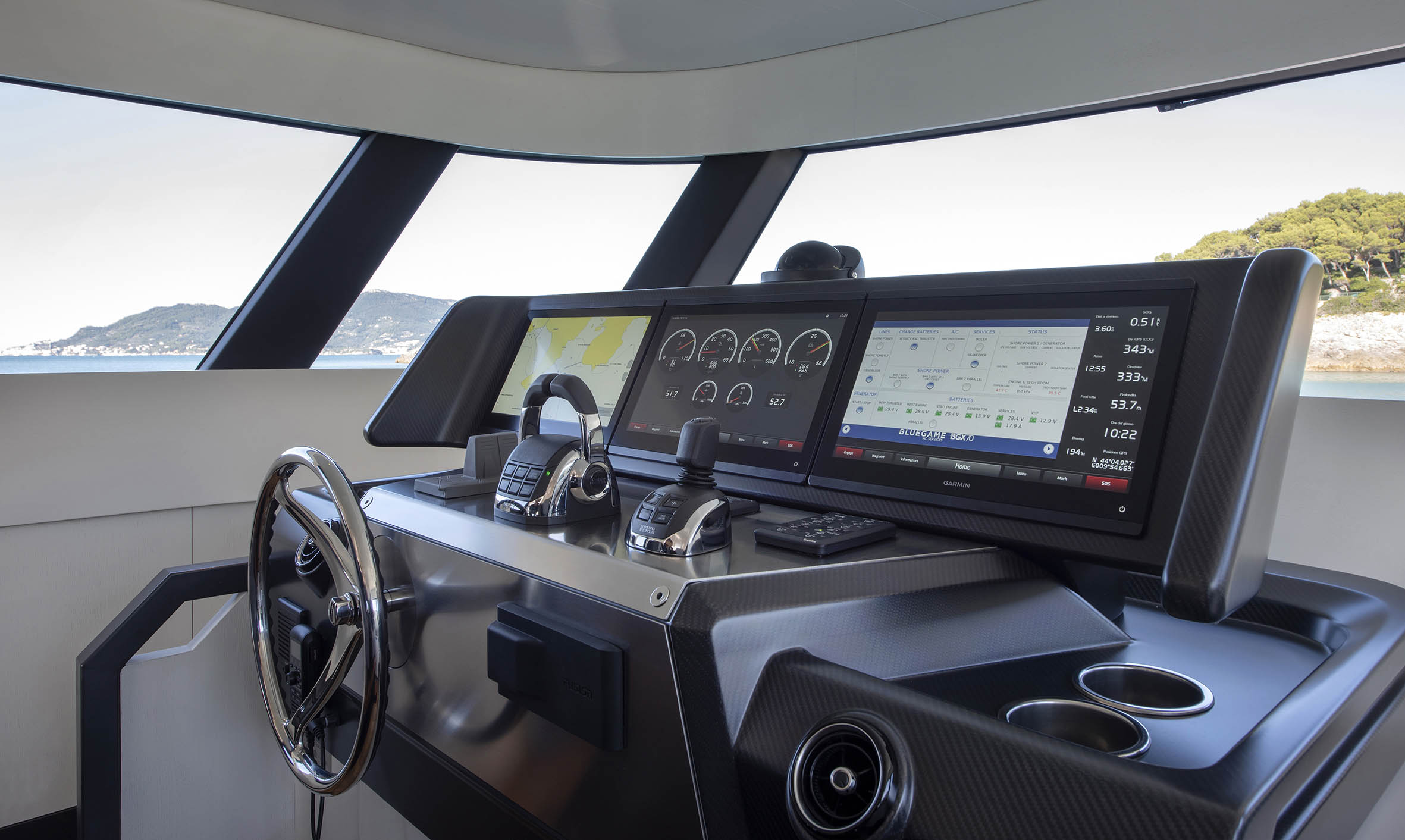

Console with:
Compass
N^° 3 Raymarine 12″ GPS, depth, radar 24mg and Engines instrument board complete digital indicators for engines parameters (rpm, oil pressure, water temperature, engine sound warning alarm, fuel level)
Volvo Penta automatic pilot VHF station with antenna Display 7″ EVC Volvo
IPS Joystick
Bow thruster control
Volvo Penta electronic engine throttle
Anchor winch control
Digital switching and digital automation far mains services DC and AC integrated in main panel;
Two electric intruder systems controls
Back-lighted switch panel far deck services
Bluegame personalised steering wheel
Fire control far manual extinguisher
Red courtesy light control
Double electric windshield wiper with washer
Side door
Power and USB sockets

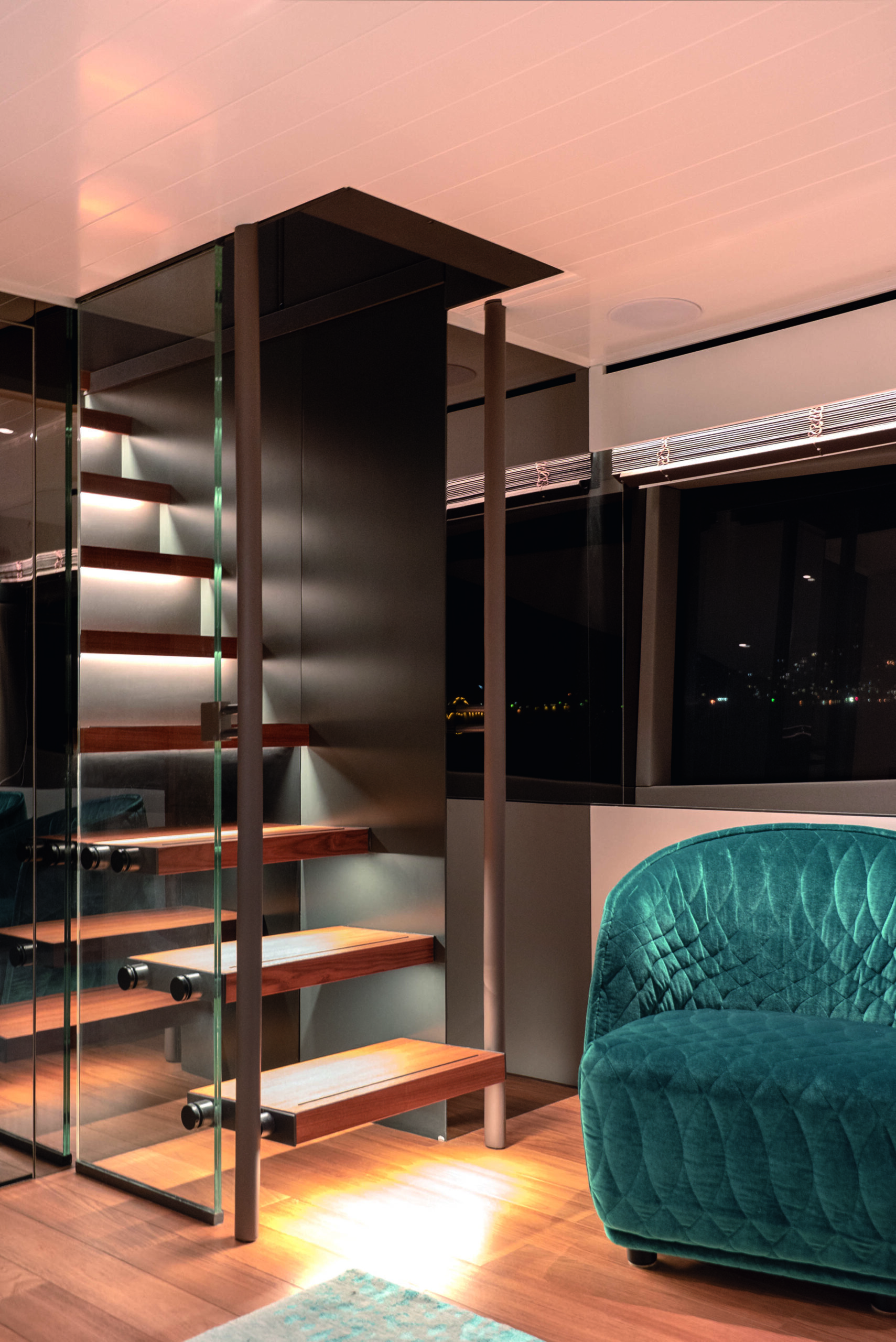

Stairs from main saloon with handrail
Stairs to guest’s area
Temperate glass side windows
Air conditioning fan coil
Fire extinguisher 1kg

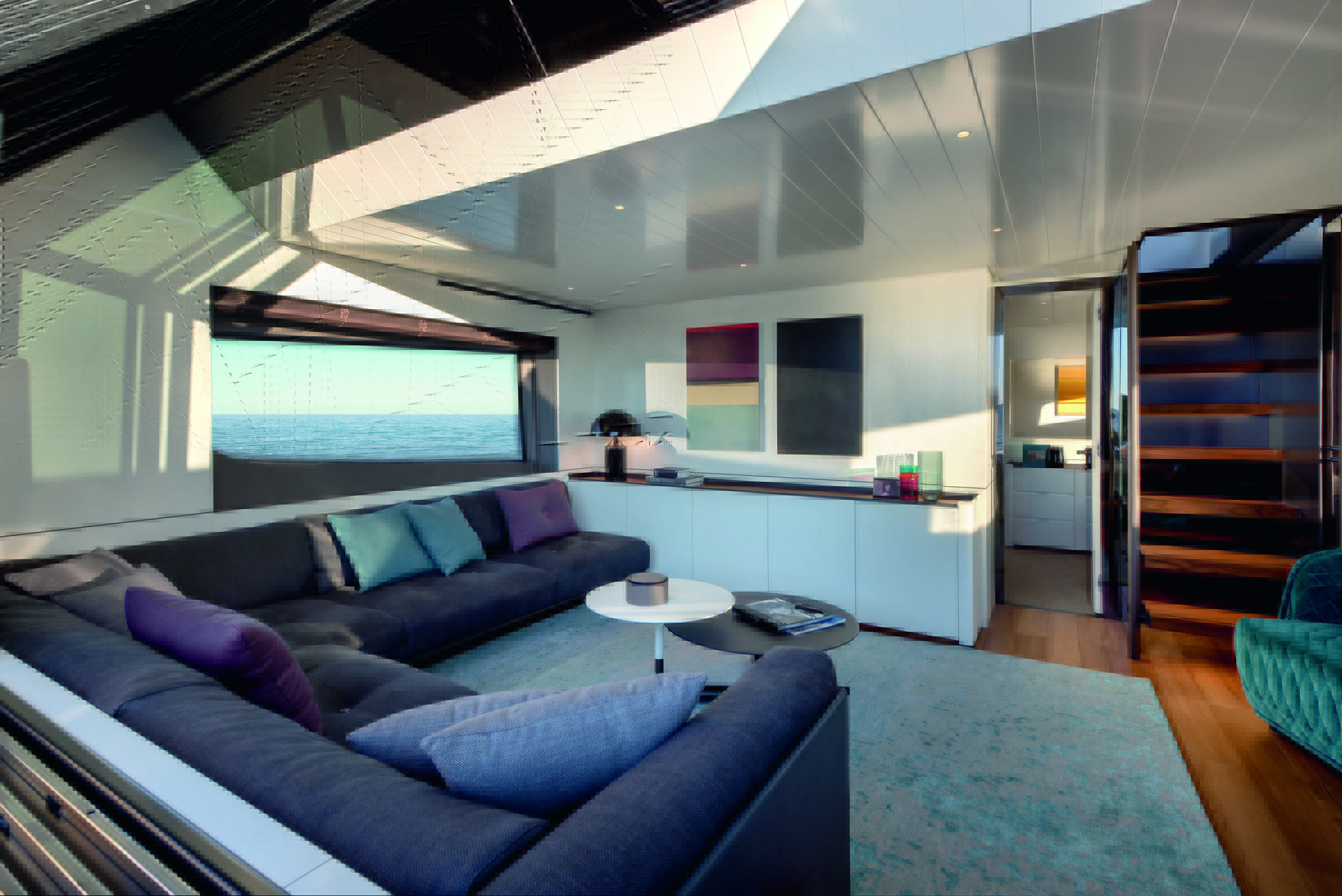

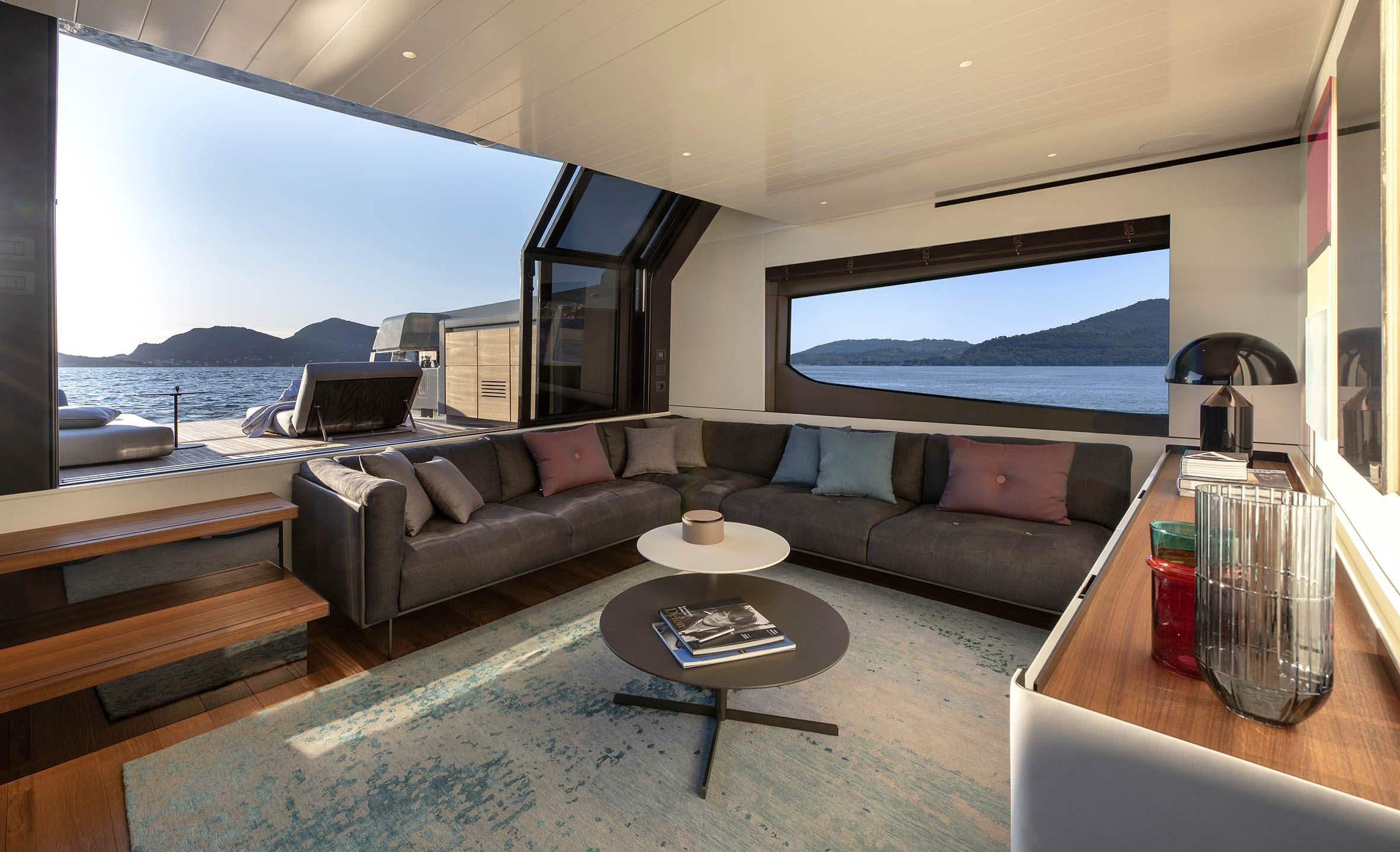

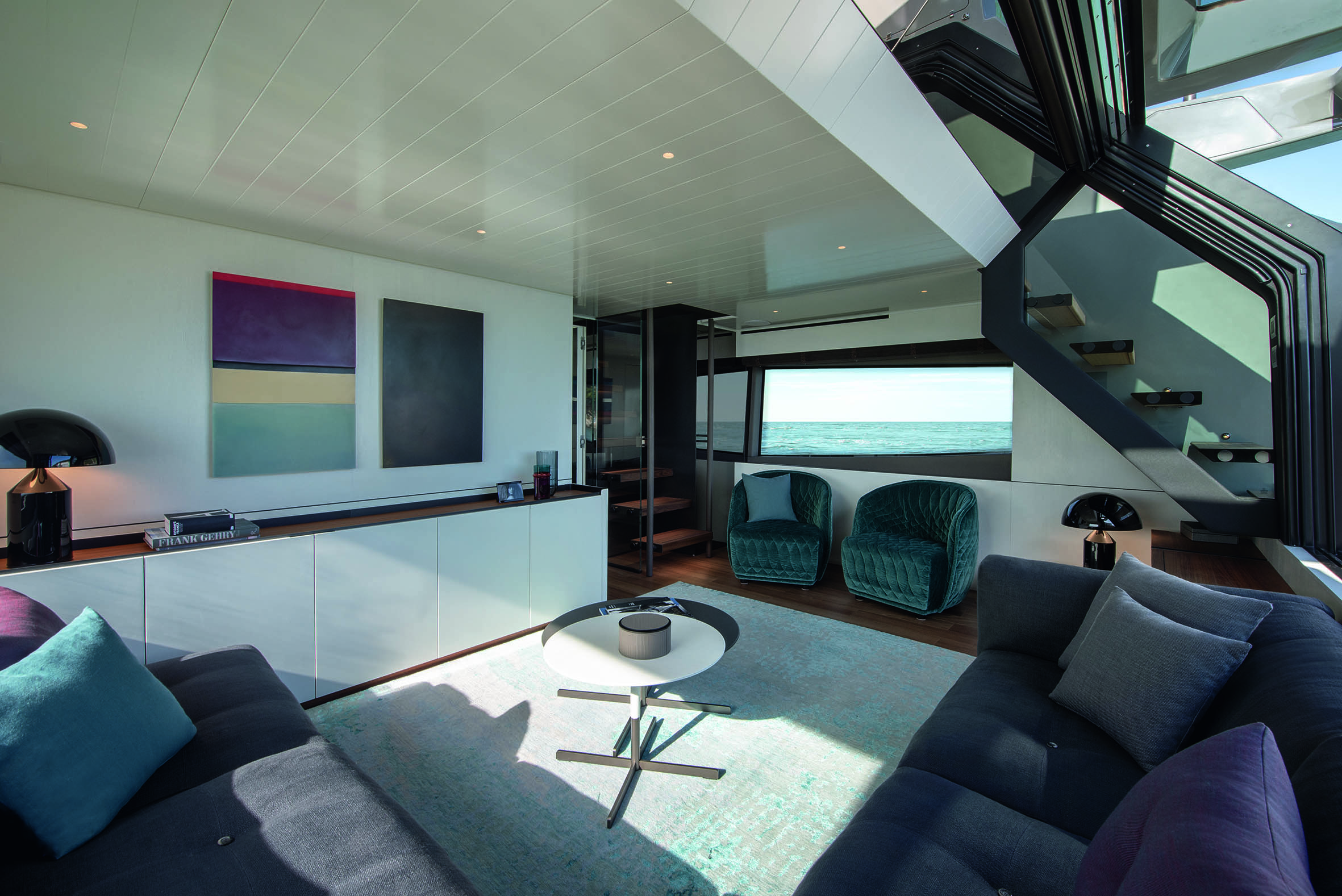

Saloon
Sliding door to main saloon
Steps from beach area to saloon
Power and USB sockets
Led lights with dimer
L sofa
Coffee table Wooden floor
Blinds
Side temperate glass with integrate portholes
S0″TV

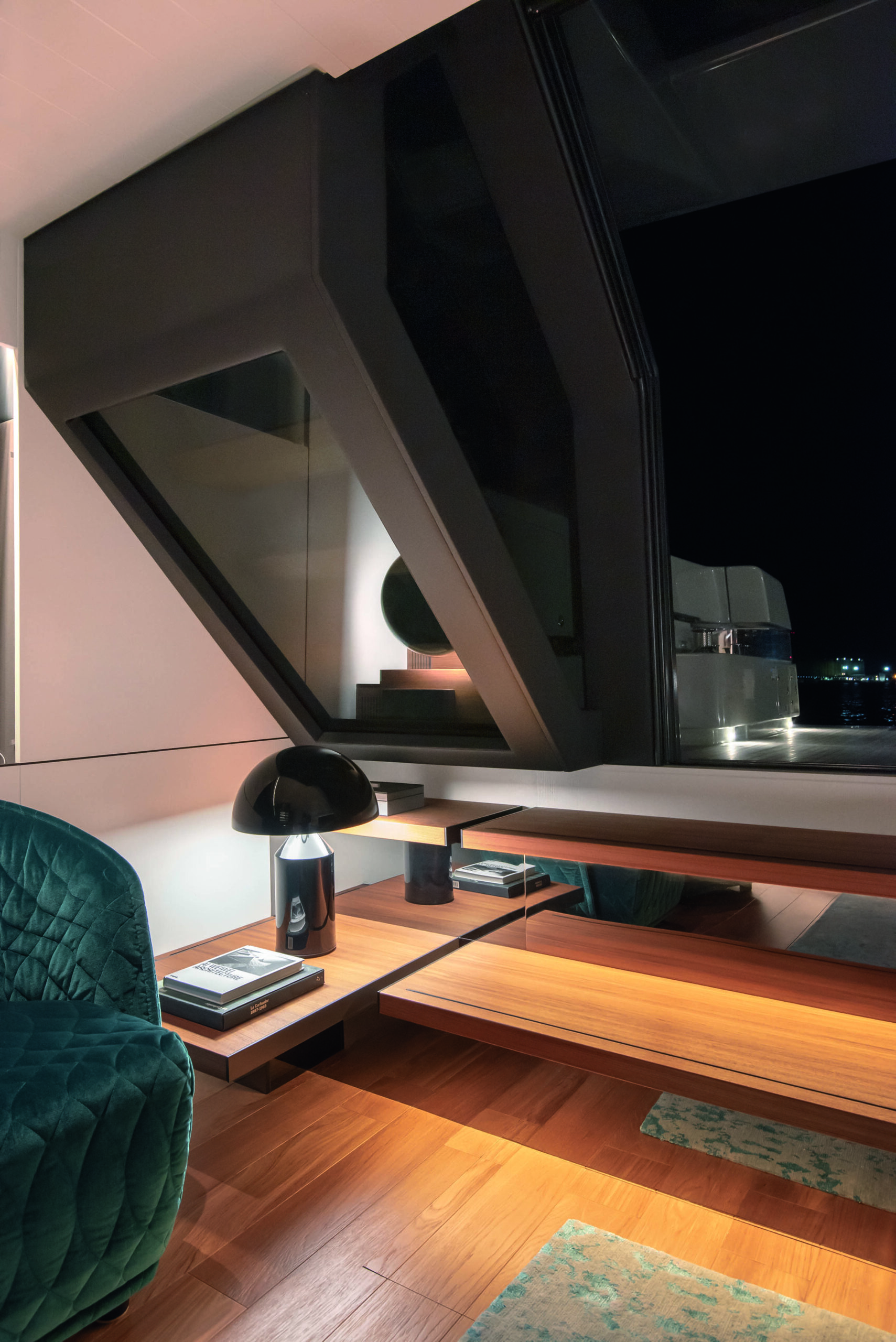

Stairs to Upper deck enclose area
Owner cabin entrance
MP3 Radio Stereo Bluetooth
N^° 4 speakers
Air conditioning fan coil
Fire extinguishers 1

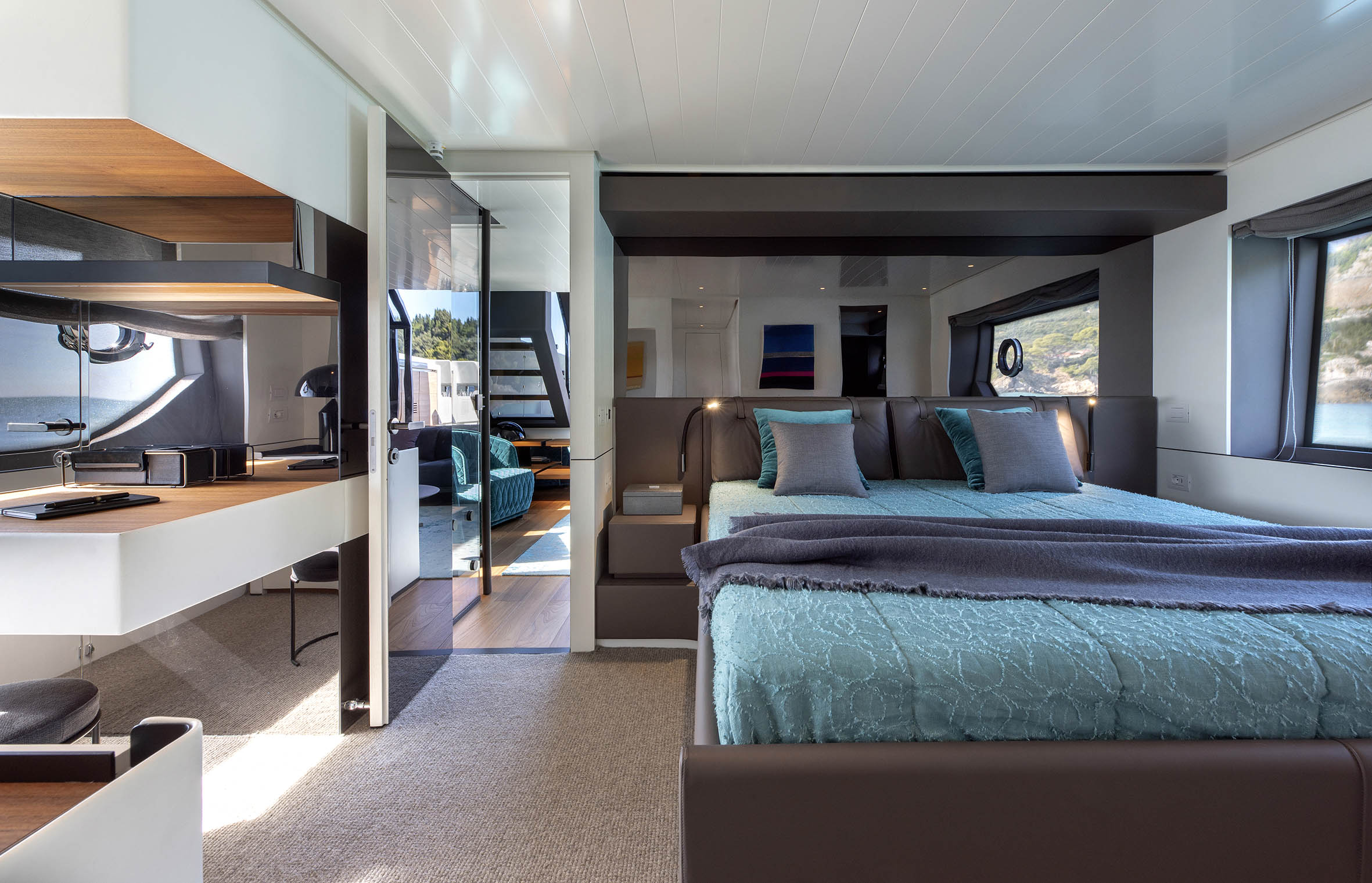

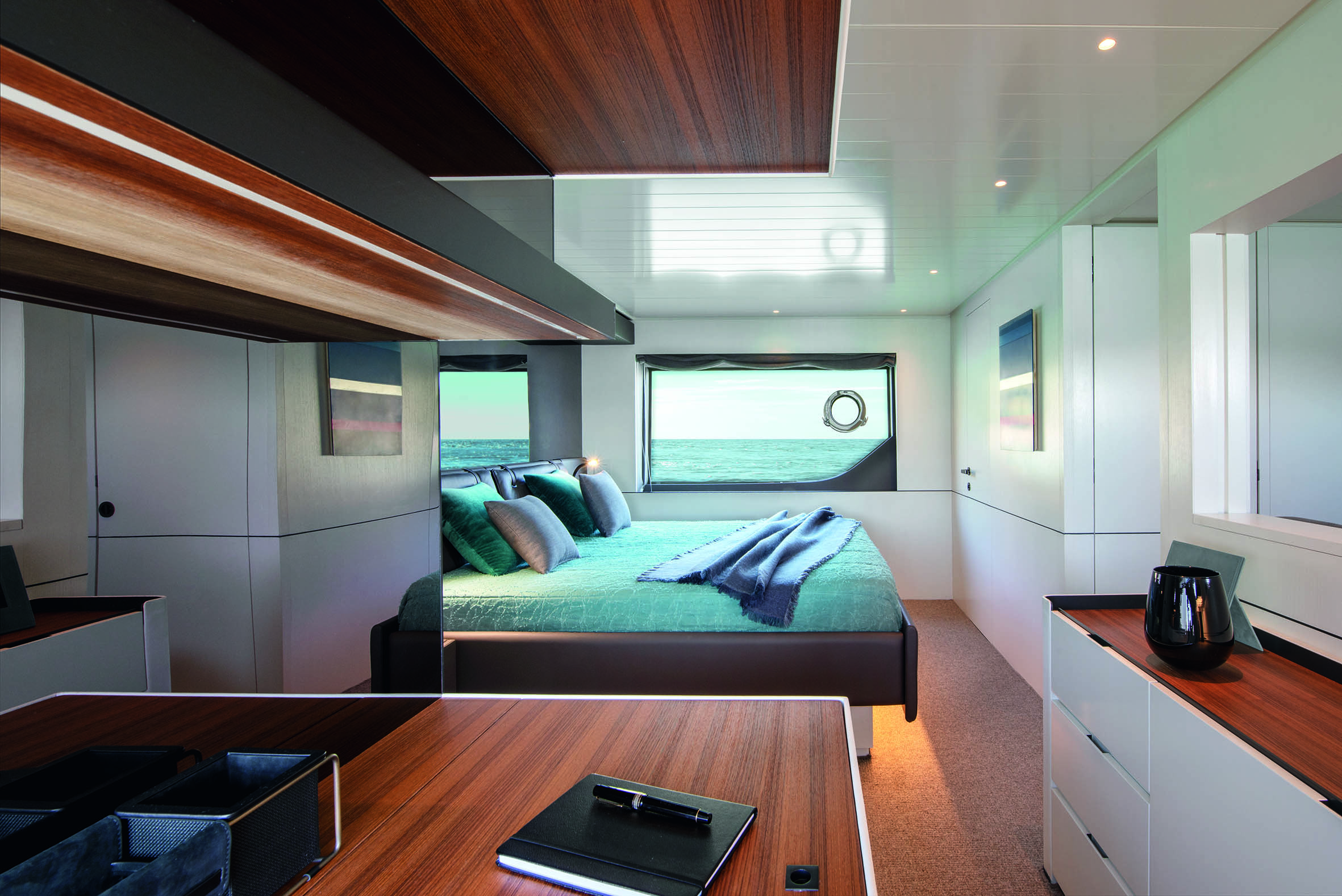

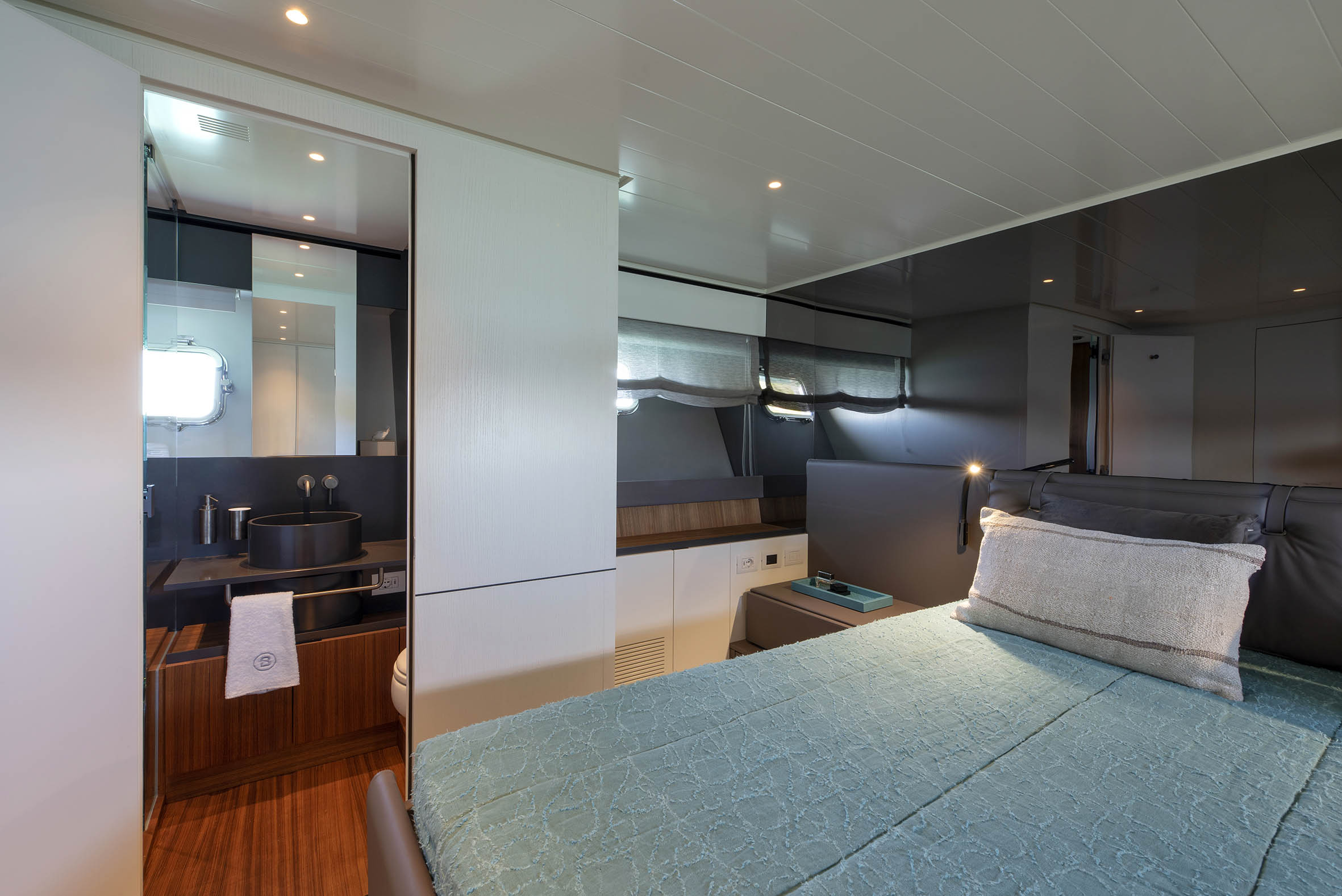

OWNER CABIN
Double bed with mattresses in double density faam
Cabinets on side
Carper floor
Reading lights
Led lights with dimmer Power and USB sockets
Opening porthole integrated in the panoramic window
Blinds Pillows
Bed sheet covers Safe
32″ TV
MP3 Radio stereo Bluetooth with subwoofer
No.4 speakers
Air conditioning fan coil
Fire extinguishers 1

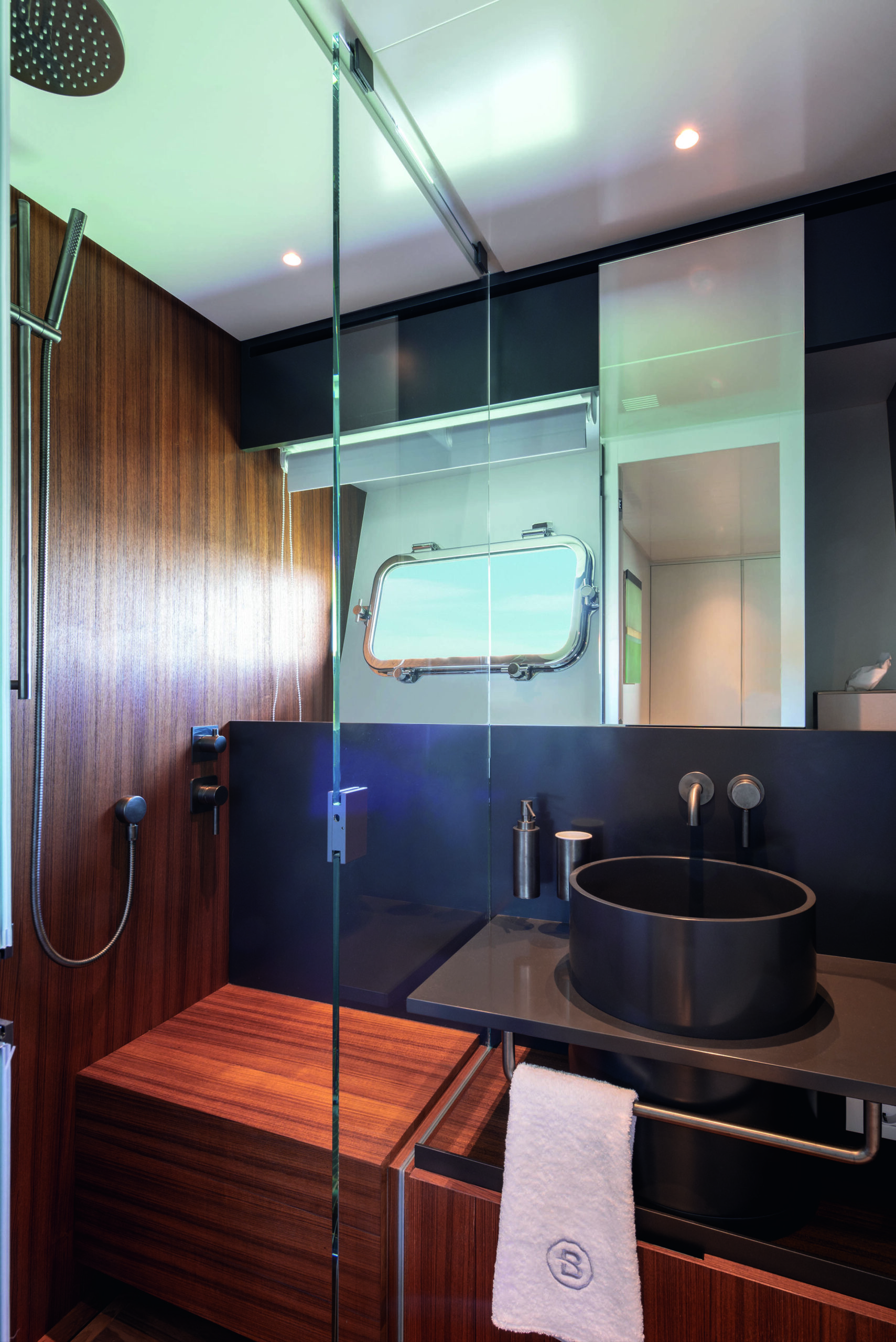

OWNER BATHROOM
Fresh water electric marine WC
Wooden floor
Led Lights
Blind
220V sockets
Bathroom accessories
Cabinet
Opening  porthole
Air conditioning outlet
Separate shower with slide bar faucet mixer taps

VIP CABIN
Double bed with mattresses in double density foam.
Cabinet
Carpet floor
Reading lights
Led lights with dimmer Power and USB sockets
Opening porthole
Blinds
Pillows
Bed sheet covers TV
MP3 Radio Stereo Bluetooth with subwoofer
Two speakers
Air conditioning fan coil
Fire extinguishers 1

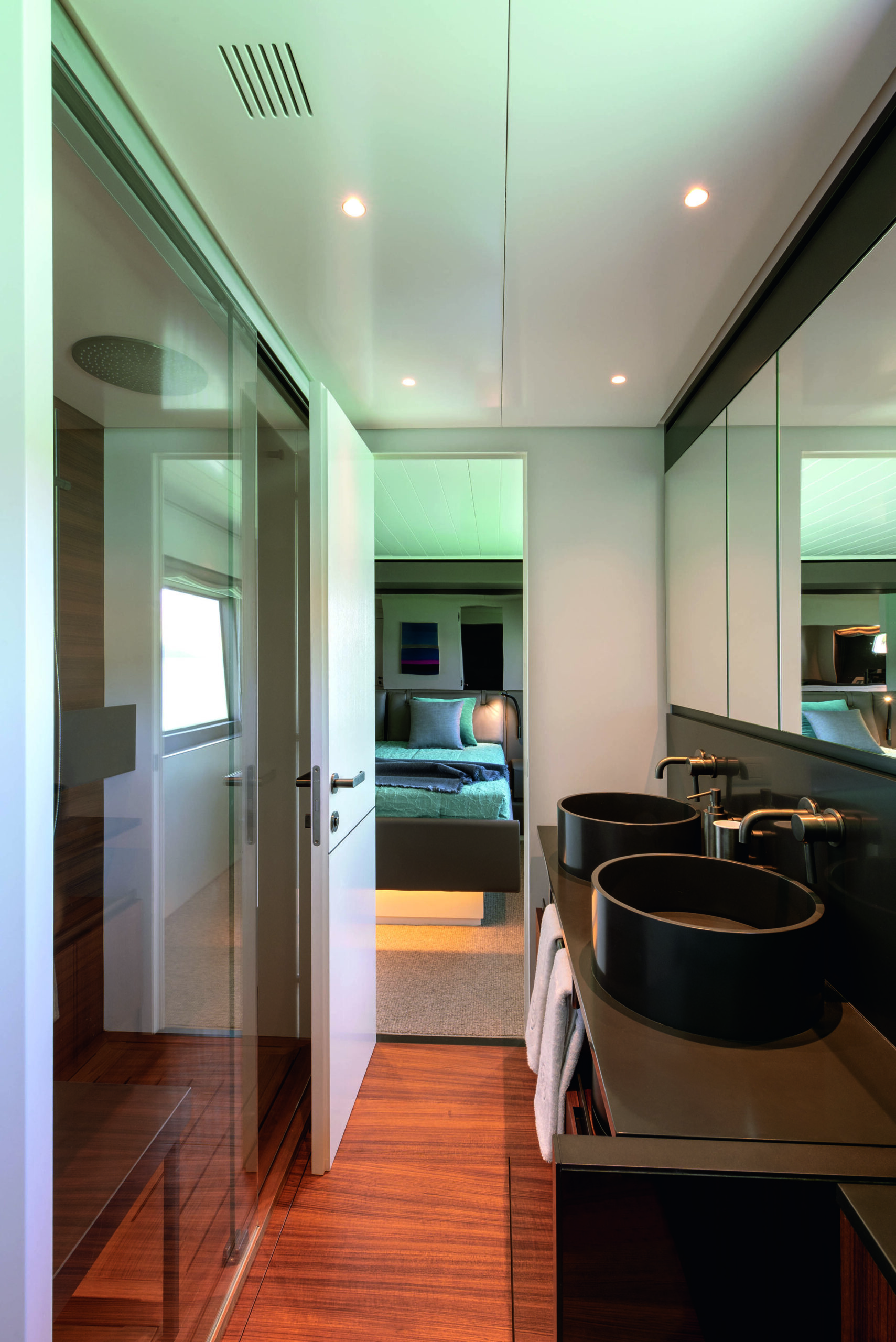

VIP BATHROOM
Fresh water electric marine WC
Wooden floor
Led Lights Blind
220V sockets
Bathroom accessories
Cabinet
Opening porthole
Air conditioning outlet
Separate shower with slide bar faucet mixer taps

GUESTS CABIN
Two single bed with mattresses in double density faam Cabinets on sides
Cabinets on sides
Carpet floor
Reading lights
Led lights with dimmer Power and USB sockets
Opening porthole
Blinds
Pillows
Bed sheet covers
MP3 Radio Stereo Bluetooth with subwoofer
Two speakers
Air conditioning fan coil
Fire extinguisher 1kg

GUESTS BATHROOM
Fresh water electric Marine WC
Wooden floor
Led Lights
Blind
Power sockets Bathroom accessories
Cabinet
Openable porthole
Air conditioning outlet
Slide bar shower faucet mixer taps

GUESTS CABIN PANTRY-DISTRIBUTION
Storage area
Washer /Dryer
LED Light

CREW CABIN
N.2 Upper lower beds Cabinet·
LED Light Openable porthole
Synthetic floors
Blinds
Power and USB sockets
Air conditioning fan coil
Separate bathroom with:
Fresh water electric Marine WC
Synthetic floor
Led Lights
Blind
Power socket
Bathroom accessories
Cabinet
Openable porthole
Shower

ENGINE ROOM
2 x Volvo IPS 1200 D13 / 2x 588kW/900 HP
4000 1. fuel structural tank in composite with fuel level sender connected with EVC Volvo system7 Daily tank integrated on the huil on engine room Valves for fuel interception with remote cable Electromechanical switching for batteries with remote control
Double water/fuel filter
Fire extinguisher system with manual and automatic control
Water connection with hose for cleaning engine room
Engine room led light AC cooling unit
Manual operating bilge pump
lnsulation fire retardant film on all engine room area
Two electrical ventilators with cycle reversion and thermostat switch
Power sockets

Hydraulic System
Fresh water tank structural on composite 1000 lt with level indication on main panel
Water heater 2 x 450 lt 220V 1200w
Black water tank lt 300 with level indicàtion on main panel
Gray water tank lt 300 with level indication on main panel
Shore black water outlet discharge system
Double fresh water pump
Hydraulic hoses in special rubber anti smell
High pressure fresh water inlet
Six bilge pumps; two on engine room, two on stern area and two on center huil, with automatic and manual control

ELECTRICAL SYSTEMS
Generator 22,5 kW
4 batteries 120 Ah / AGM for engines
Service Gel batteries pack 650 Ah
1 batteries 120 Ah / 12 V for generator
2 Bow Thruster and winch batteries pack 120 Ah
Battery charger 100 ah for services and engines
Battery charger for generator
Electromechanical battery switches with remote digital control
230 V shore power 63A with connection cable lSmt
Galvanic Isolator 50 Ah
lnverter 2000 wat
Electric bow thrusters
AC Electrical Panel {230v) CE certified on engine room with electromechanical switching for all outlet with remote control on main panel
DC Electrical Panel (24v) CE certified on engine room with electromechanical switching for all outlet with remote control on main panel

MAIN OPTIONS AVAILABLES
Wetbar on beach club area
Water maker 180 lt/h
Seakeeper stabilizer
Upper cockpit awning system with carbon poles
Bow area awning system with carbon poles
Flir Raymarine thermal camera
N.3 Raymarine 16″ screen
Radar Raymarine Open Array HD 4kW
Sat antenna for tv system
Glendening
Electric openable glass in kitchen area
Sliding bed for guests cabin
WI-FI system with external hot spot
Second control station in beach are

FUNCTIONALITY
Difference from STD engines and VOLVO IPS 1350
Sun kit for superstructure (Sun pad and teak underneath sun pad)
Glendenning Cablemaster CM 7
Gyroscope Sea Keeper 16
Search Light with remote controll LED
Underwater Lights n.2 LED
DPS for Volvo Penta IPS

DECOR
Bow area extra furniture below windscreen

ELECTRONICS
Garmin 16″ different from 12″ STD (n° 3)
Garmin Radar Open Array HD 4KW diff. to STD
Flir night vision camera M232
CCTV System 3 fixed cameras (2 Engines room 1 in cockpit)
Second control station in cockpit
AIS system for Garmin

COMFORT
Electric grill gaggenau in platform wetbar – TEPPANYAKI
Icemaker 6,5 kg/h
Washer and dryer separate machine Miele
Bow sunlounge bimini
Stern sunlounge bimini

ADDITIONAL CUSTOM OPTIONS
Lithium Battery package
Kabola heating system Ecoline KB 40
Sundeck floor: teak also below the sun pad (6 extra sqm)
Bow Thruster Side Power 210 proportional (diff vs 170 STD)
No Sat antennas. Only 2 empty domes varnished in sun top color
IR camera in chain locker
Second VHF with independent antenna
Gaggenau grill installed on platform wet bar
Security system Sentinel by Garmin (all the doors and access hatches)
Porthole status (open/closed) monitoring, including crew quarter
Extra 230V socket in jolly room for printer (customer) and sliding shelf
2 extra foldable cleats at ¾ on each side bulwark (same model of midship)
Miele Electro appliances Miele multilanguage diff. from STD
N° 6 extra 230V water proof sockets
N° 4 extra 230V sockets
Garmin Radar Fantom 50W – Solid State technology diff. From STD
Garmin electronic instruments (forward scan)
Flash navigation lights with removable mast
Fan extractors in all the toilets and in crew quarter
Side ladder – Exit carbon
No. 2 Saloon armchairs – diff. from STD Moroso Redondo
Boffi custom kitchen – diff. from STD
Master cabin place for mattress beam 170 – Owner supply
No. 2 fixed carbon custom seats in helm position & central instrument console
Armrest, additional engine level and joystick on central instruments console
Custom Frigonautica n° 9 bottles wine cooler below pilot bench
Parquet “Itlas teak Y15 Natura or similar in saloon ld e ud
Carpet in cabins Spertuft Chandigarh colour Steel Gray
Lower saloon electric blinds in leather
Upper saloon electric blinds in leather
Remote control electric blinds (Saloon upper and lower)
Fabrics for cover bed and pillows
Cloth pillows “Paola Lenti”, colour as fiberglass with blue touch palette
Saloon rug – Sin Titulo 28 col Original diff. from STD
Custom Paola Lenti exteriors upholstery – Colour TdC from Martina Zuccon
Electric pivot TV 42” (Owner supply) on the saloon ceiling
Custom Corian bench in owner shower colour “DEEP TITANIUM”
Insulation on hull side
Yachtcontrol system including Wi-Fi and repeater
Fridge on bow furniture
Second Ice maker on upper cockpit
Custom mast: 2 add. lopolight flash compliance for navigation on internal water
N°3 OLUCE ATOLLO 233 lamps
C&C Milano collection of towels, Anemone Collection, composed by n°12 guests towels,
n°16 face towels, n°18 bath towel (interior + exterior)
N°1 PAOLA LENTI Coffee table mod. STRAP
n°2 PAOLA LENTI SWELL sunbed fabric BRIO BT292907
n° 2 Paola Lenti Pouf OTTO, fabrics BRIO BT26072
