See all specificationshide all specifications

Brand Globemaster

Type 50 LRX

Designer Willem Nieland Design

Construction year 2023

Hull Shape Fast displacement

Hull Colour Aluminium Brushed

Hull Material Aluminium

Deck Material Cork

L.O.A. 16 m

Beam 4.9 m

Draft 1.3 m

Light Displacement 17000 kg

Engines Volvo Penta D6

Engine power 320 Pk

Engine hours 200 approx.Updated: 18-07-2023

Engine Hours Date 18-07-2023

Fuel type Diesel

Propulsion Shaft

Cruising speed (knots) 9 Kn

Maximum speed (knots) 12 Kn

Fuel tank 3000 l

Fresh water tank 1000 l

Black water tank 380 l

Gangway yes

Swimplatform yes

Swimming ladder yes

Tender Talamex 310 Silverline

Mooring Muiden

CE-Category CE-A

Flag NL

Cabin(s) 3

Berth(s) 6

Toilet(s) 2

Oven/Microwave IKEA Smaksak

Water system Homa HLE55 jet drinking water pump

Watermaker Idromar -MC1-2-3-4J

Hot water Boiler

Washer/dryer Boiler

Heating Kabola 13.5 kW - 30 A

Airconditioning yes

Televisions yes

Soundsystem Sonos

Internet yes

Bowthruster Side Power

Sternthruster Side Power

Trim tabs Intercepters fixted

Generator 1x Cummins | Onan 7 Kw

Inverter Mastervolt

Windlass Maxwell

Fire extinguisher Foam extinguisher 3x2 and 1x6

Bimini Top Manual

Compass Simrad GPS

Rudder indicator Simrad

AIS-transponder Simrad

AIS-receiver Simrad | 19 inch NSO

Radar Simrad | Halo Rader 24

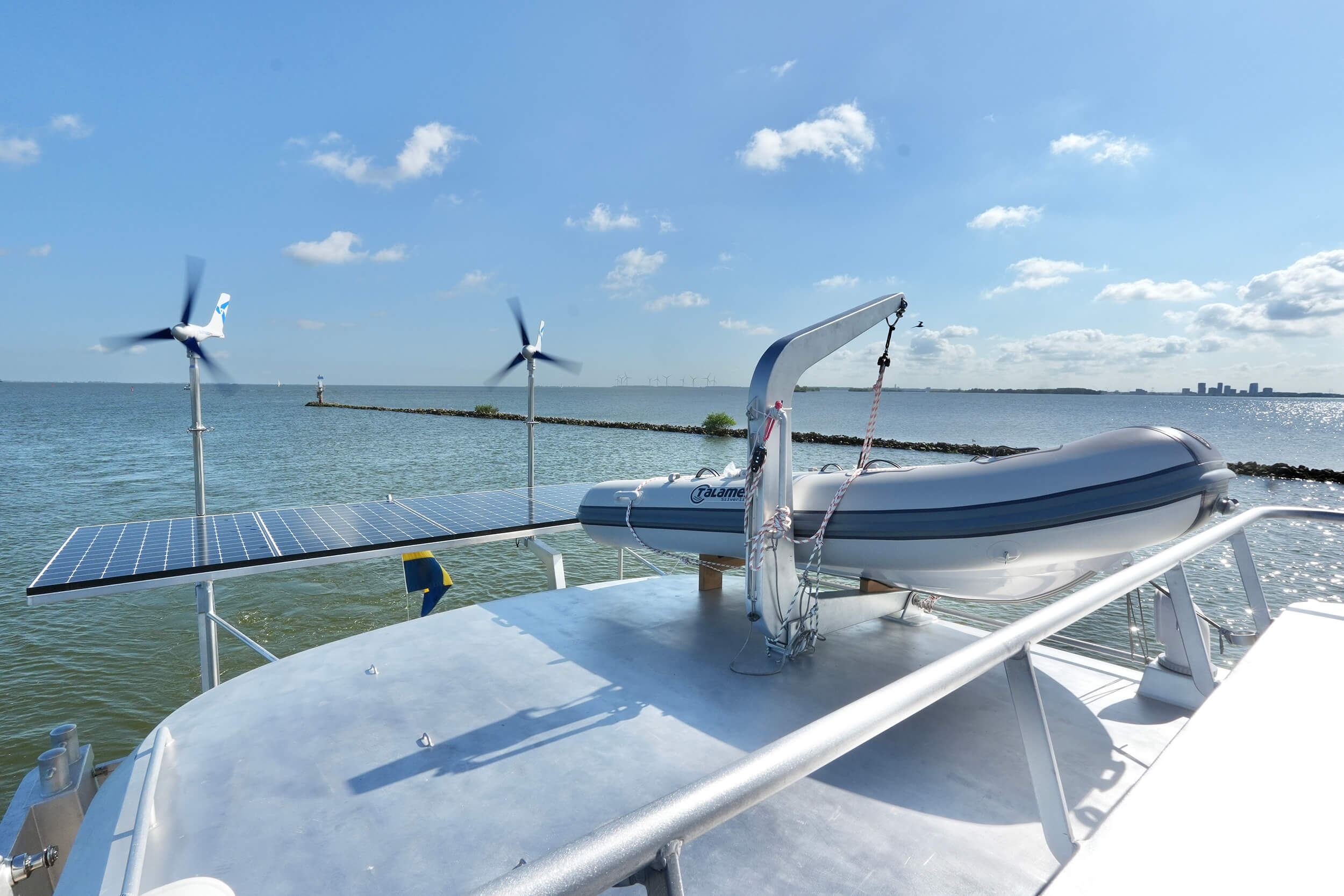

Autopilot Simrad

GPS Simrad

VHF Simrad

Depthsounder Simrad

Log Simrad

Casco:
1. ALMG 5083, construction according CE cat A. Semi round-bilge multi chine hull form
2. Sanded for flat surfaces.
3. Railing, 40/30 diameter, stanchions 15 mm 60 mm tapered stanchions
4. Bulwarks up to 920 mm.
5. Sufficient number Dorado boxes for ventilation – with forced air.
6. Sufficient bollards and cleats in number and diameter.
7. Steel rudder(s), stainless steel rudder-stock
8. Fuel tanks, two wing tanks 2100 liners one bow tank ca 850 liter
9. Shaft pipe(s) and bow thruster pipe.
10. Bowsprit for large anchor. 40kg Rocna
11. Watertight door to aft deck/cockpit.
12. Handrails on upper deck. All handrails on the boat ø40mm.
13. Windbreaker on flybridge removable for inland cruising
14. Air ducts (4) for engine room and luggage.
15. Aft deck hatches (2) – with struts.
16. Bow locker for anchor chain with hatch.
17. Stern lockers

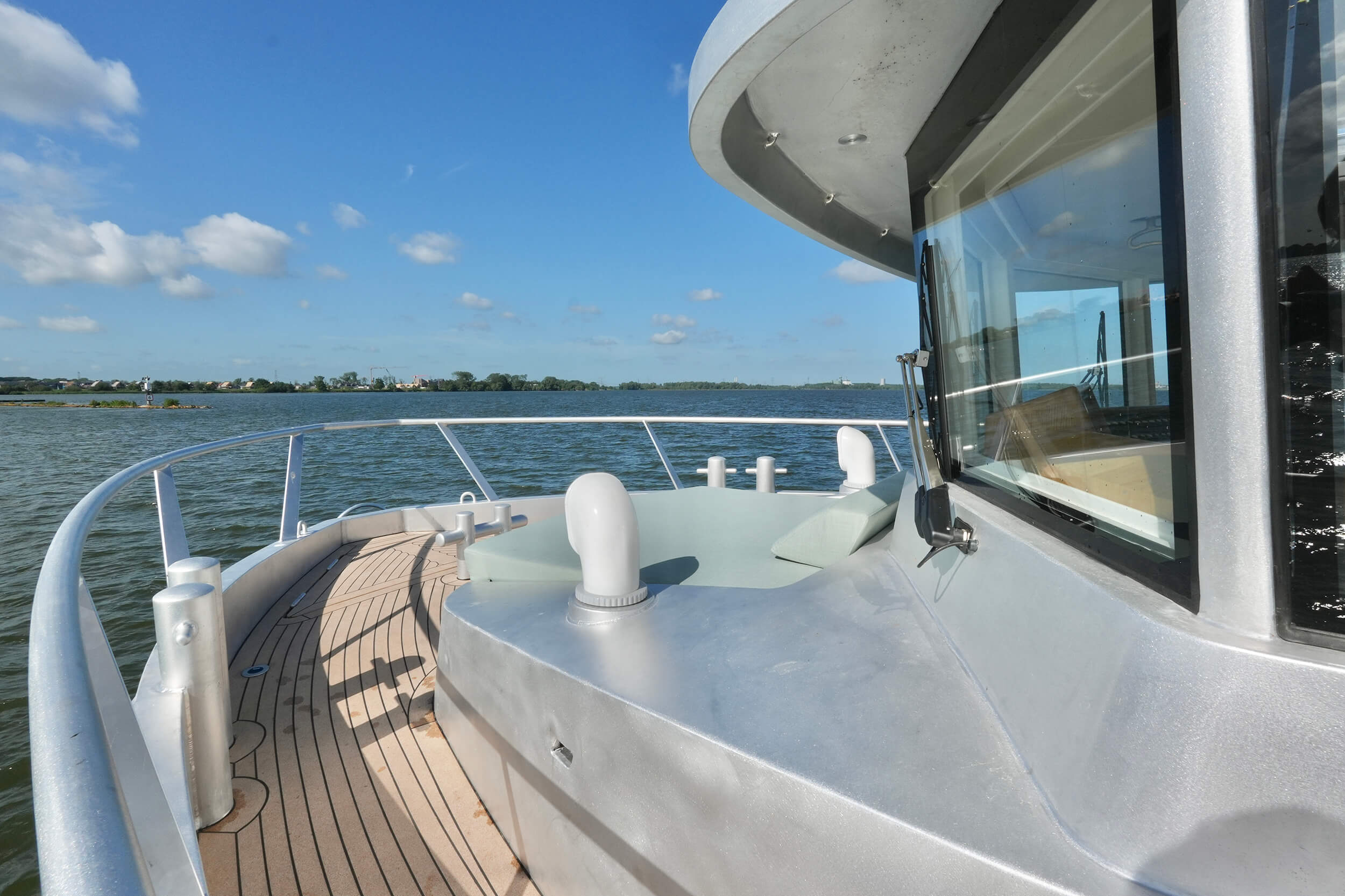

18. Bow lounge.
19. Stem ladder build in
20. Swimming ladder aft
21. Several mounting eyes SUP/RIB / Kayaks etz

Extra Equipment List

Upgrades
22. Bow – Eyelet welded for mooring/anchoring in tide at poles
23. Bow – Tow Bollard in front – Samson post
24. Bow – Alt mooring eyelets/snubbler line holders
25. Bow – Double – bollards front
26. Bow – Anchor box – snubbler line cleats
27. Bow – Anchor box – Recessed for cleaner bow area
28. Bow – Extra search lamp sockets in top anchor box
29. Bow – Special welded eyelets under PH front cap for sun awnings and sun net
30. Bow – Special welded eyelets on Bow lounge for sun awnings and sun net
31. PH – Special welded eyelets on Pilothouse roof for Awnings when anchoring, to avoid AC
32. PH – Crane for dingy on upper deck
33. PH – Wheelhouse door opening

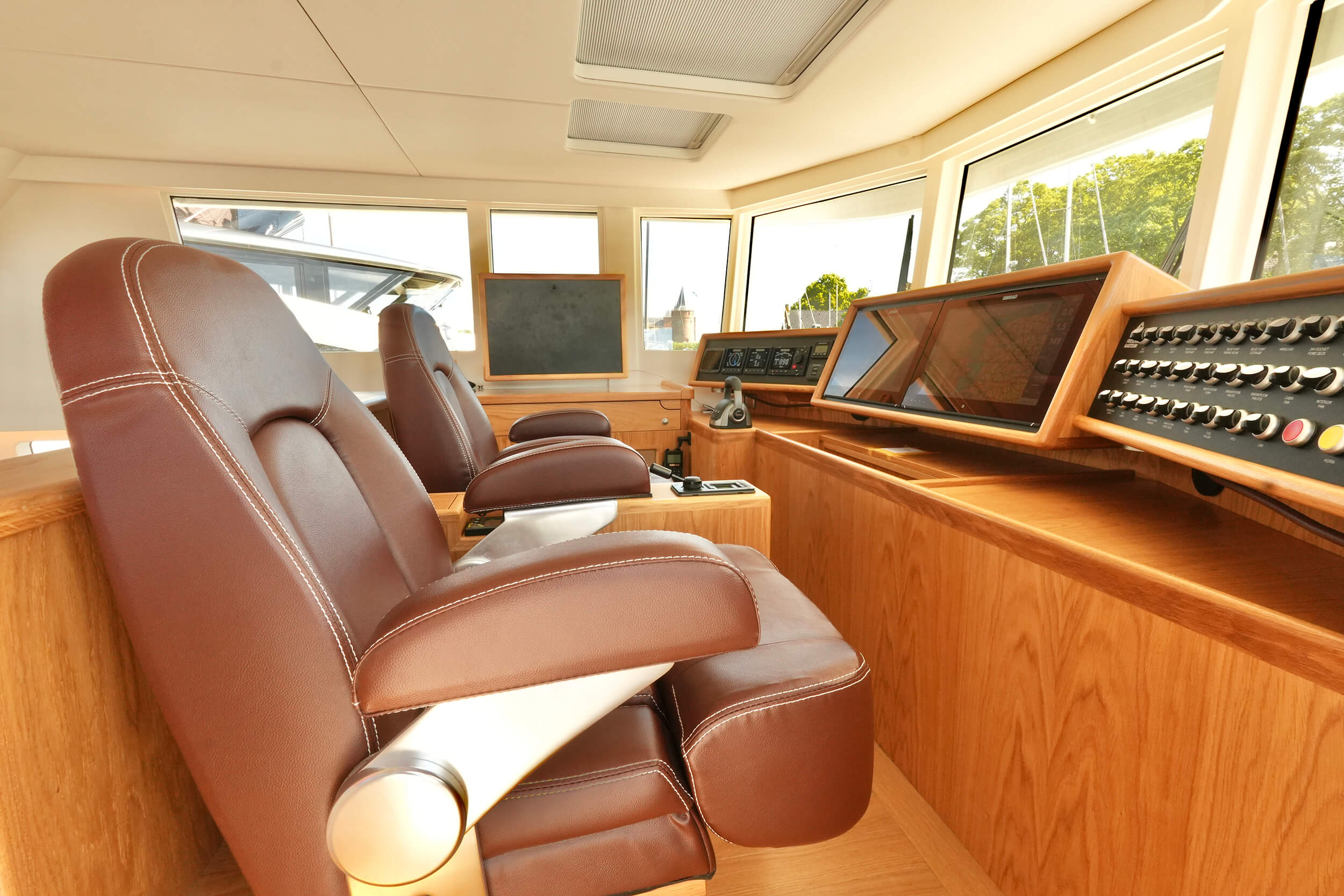

34. PH – Redesign Instrument panels – Floating
35. PH – Chart table with locker for paper charts
36. PH – Sliding table top
37. PH – Helmets Vetus
38. PH – TV – Samsung 50 – Frame
39. PH – Sonos Beam speaker, under TV

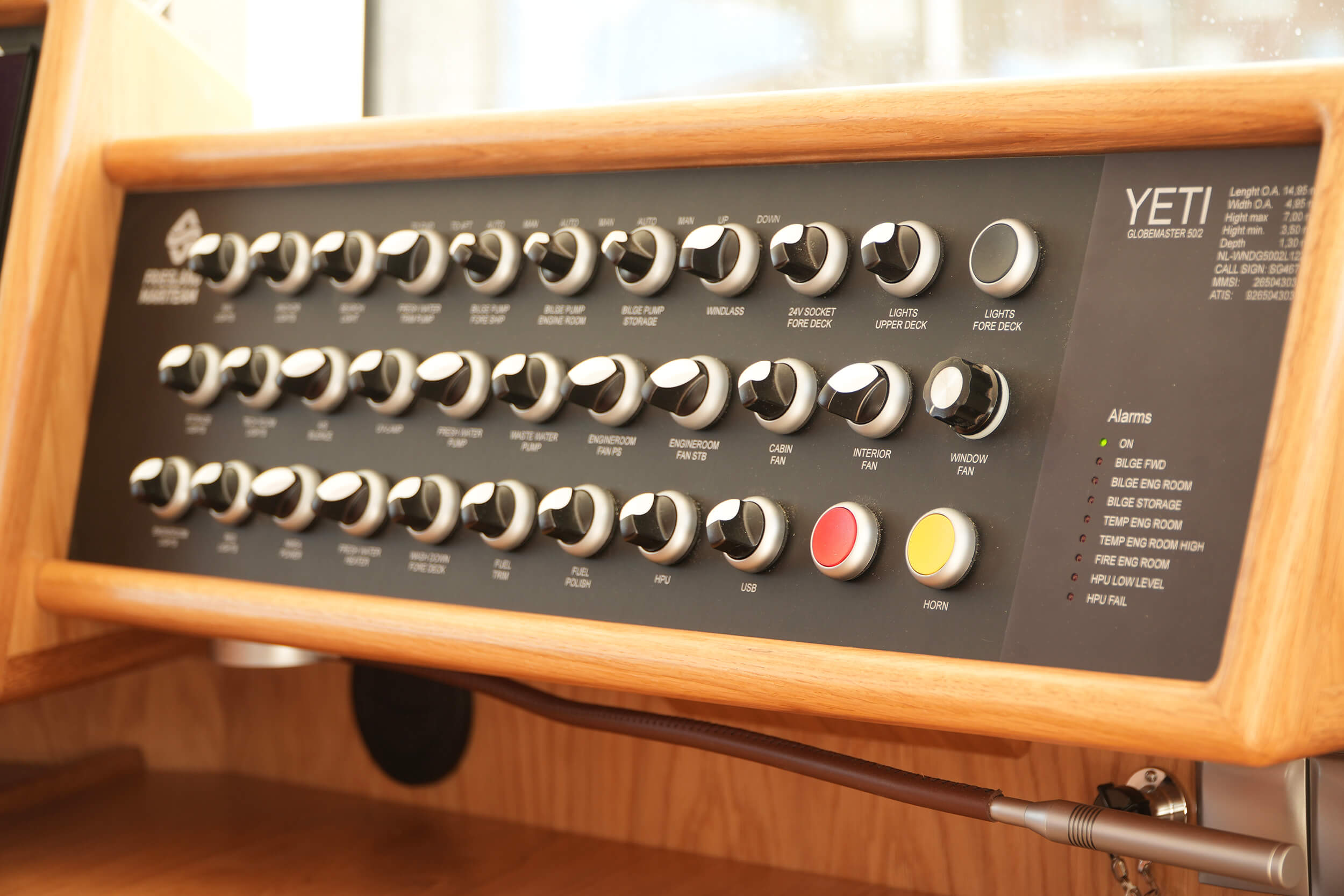

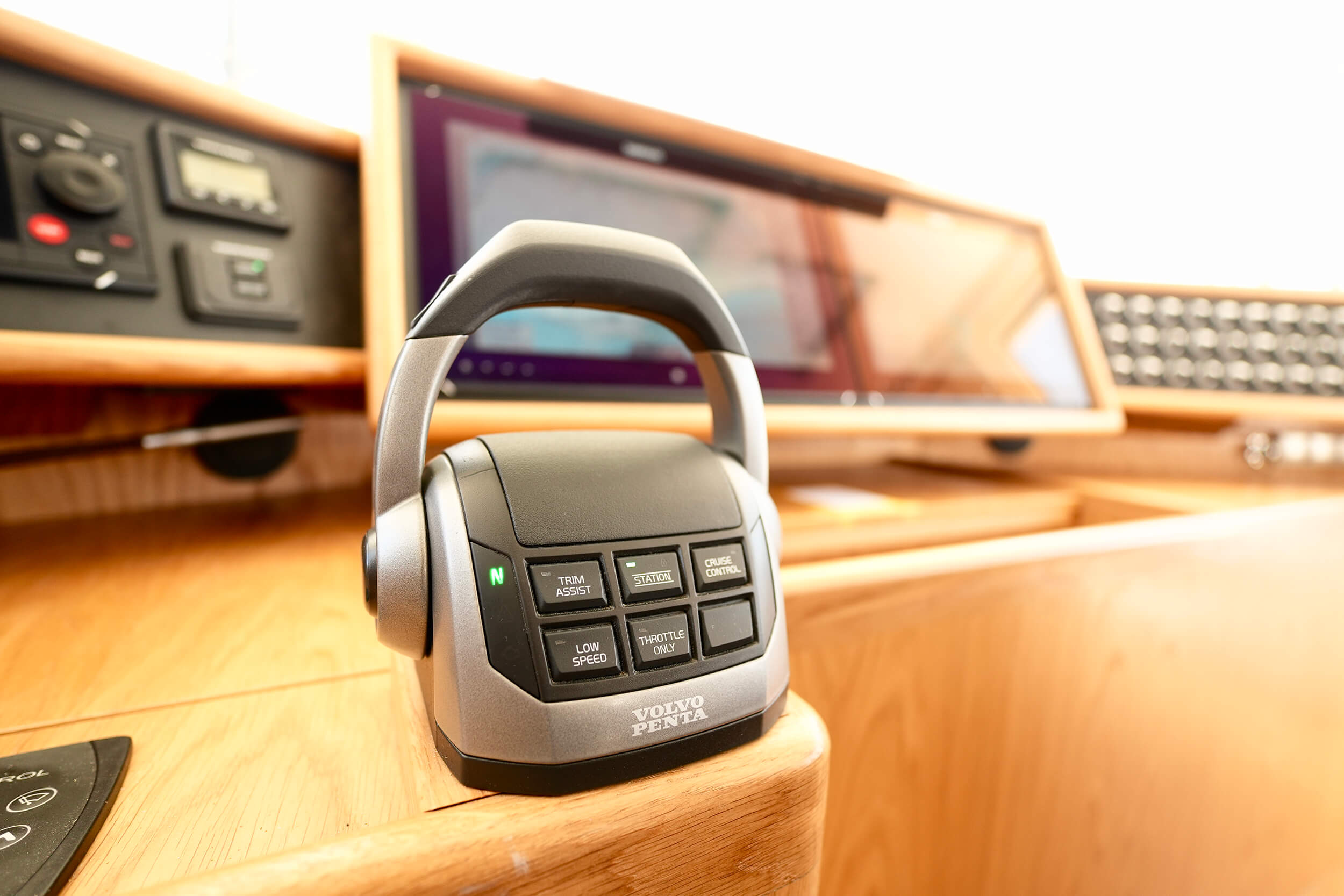

40. PH – Complete Switchboard for instruments, trim pumps and lights
41. PH – Window fan front windows
42. Office – PH – Full office station, with sliding tabletop, turnable Captain chair and hideable computer box
43. Office – PH – Full office station, with sliding tabletop, turnable Captain chair and hideable computer box
44. Office – Gangway to Master Bedroom – Full office station with foldable hatch to for computer, chargers etz.
45. Sides – Extra Mooring line, cleats
46. Sides – Fender eyelets welded for side mounting of fenders on the sides in difficult situations
47. Flybridge – Tubular extension pipes on upper deck for synthetic canvas awning.
48. Flybridge – Aft on sofa – Sun Awning Pole Holes
49. Flybridge – Sofa design
50. Flybridge – Sun deck
51. Flybridge – Movable steering station
52. Flybridge – Foldable Mast Design
53. Aft – Foldable swim platform
54. Aft – shower at Swim platform
55. Aft – Cleats under swim-platform – 2st welded for holding gangway
56. Aft – Cleats under swim-platform – 2st welded for mooring without stepping on mooring-lines
57. Aft – Eyelets welded in gangway – For net. Avoiding dogs & babies moving forward in heavy sea
58. Aft – Water tight Bulkheads. Engine Room, Aft Starboard Hatch, Aft Port Hatch, Master, Lower Deck
59. Aft – Solar arch aft

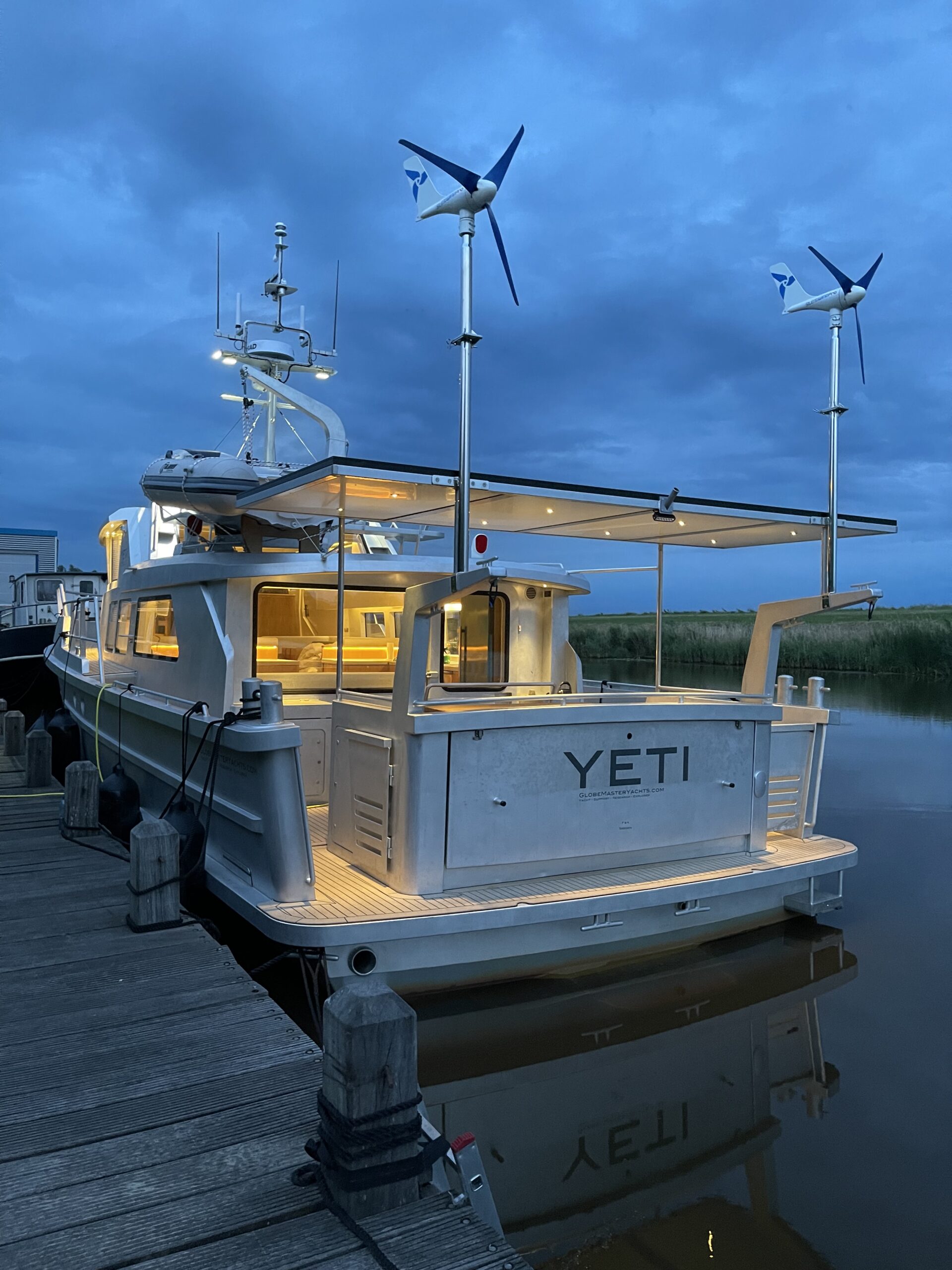

60. Aft – Wind turbines x 2 aft
61. Aft – Stern seating pod with engine ventilation and foldable backrest
62. Aft – Stern Grill cabinet
63. Aft – Stern Steering cabinet
64. Aft – Stern with davits
65. Aft – Stern lounge with hatches for equipment and life-raft,
66. Aft – Scoupers – with closable flaps. Draining green water overboard.
67. Tech – Tech Room
68. Tech – Fuel Polishing system
69. Tech – Air condition
70. Tech – Watermaker – Idromar – MC1-2-3-4J
71. Tech – Sandfilter – Idromar
72. Tech – Radiators
73. Tech – Radiator fans under radiator, for better circulation of air
74. Tech – Floor heating
75. Tech – Waterborne towel dryers
76. Tech – Rhode Faucets
77. Tech – Fuel balancing system – Bow tank
78. Tech – Water balancing system – Bow tank
79. Tech – Aft thruster pipe with welded platform with rubber defence aft
80. Tech – Ecospeed bottom paint

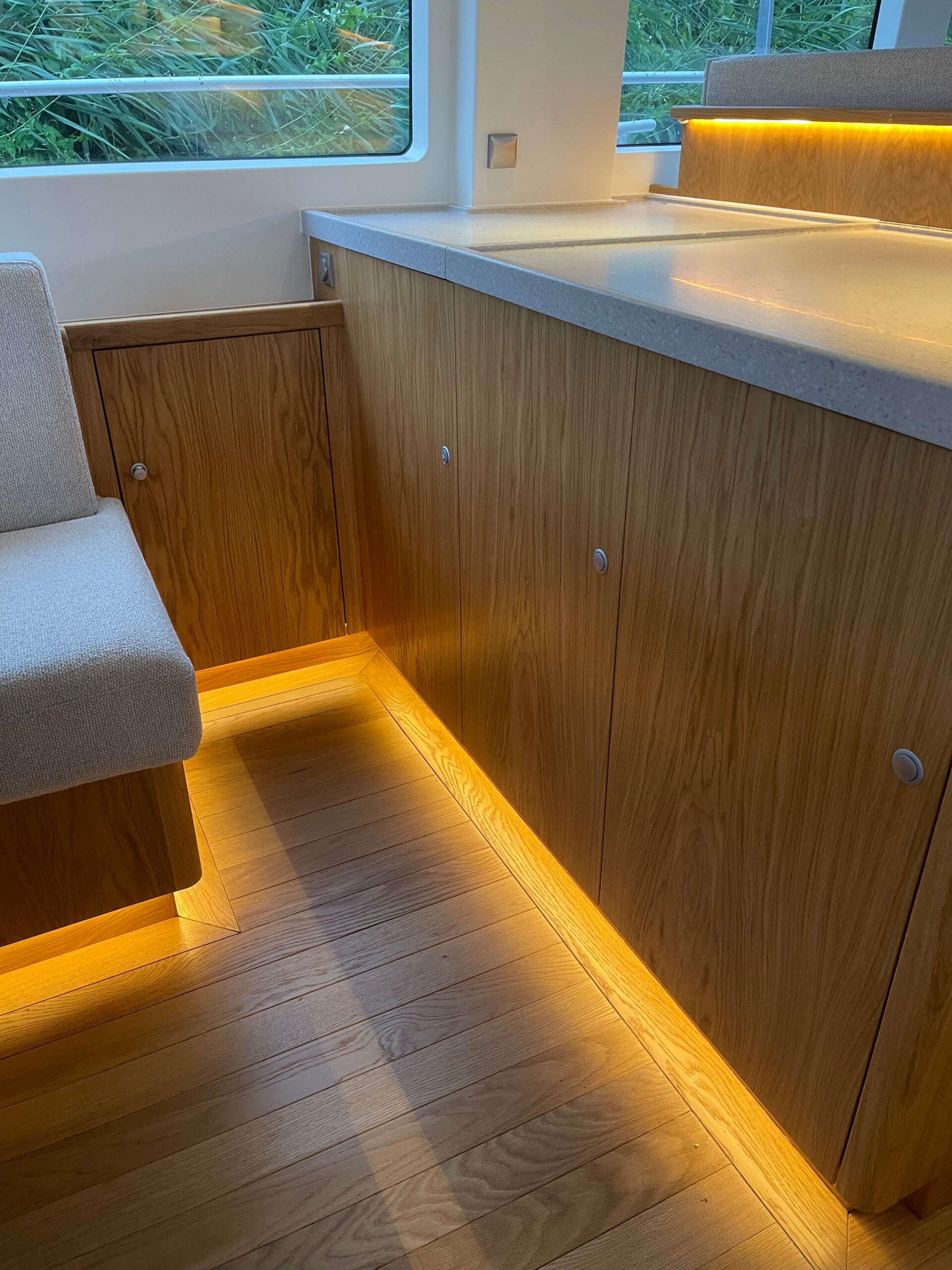

81. Tech – Ecospeed HPU – High Power Unit – Hydraulic pump for washing hull
82. Tech – Ecospeed HPU – Hose
83. Tech – Ecospeed HPD – Brush Handle
84. Tech – Ecospeed HPU – Brushes for cleaning the hull
85. Tech – Wheelhouse Lewmar hatch x3 – With blinds
86. Tech – Galley Lewmar hatch x1 – With blinds
87. Tech – Master bedroom Lewmar hatch x2 – With blinds
88. Tech – Recesses for anodes for smooth hull
89. Tech – Design’ sanding according to personal taste.
90. Tech – Special Fan aft for circulation of fresh air 24/7
91. Tech – 40 kg Rocna anchor – 100m chain.
92. Tech – Interchangeable interceptors aft
93. Tech – Wipers in PH with sweet water – flush
94. Tech – Cable-trays with pipes, throughout the ship – For easy maintenance
95. Tech – Fuelpolishing system
96. Tech – Water trimpump apr. 80 LPM incl. electric valves
97. Tech – Onan 7kw Genset
98. Tech – Mastervolt Electrical system 3x4kw + 2x battery chargers

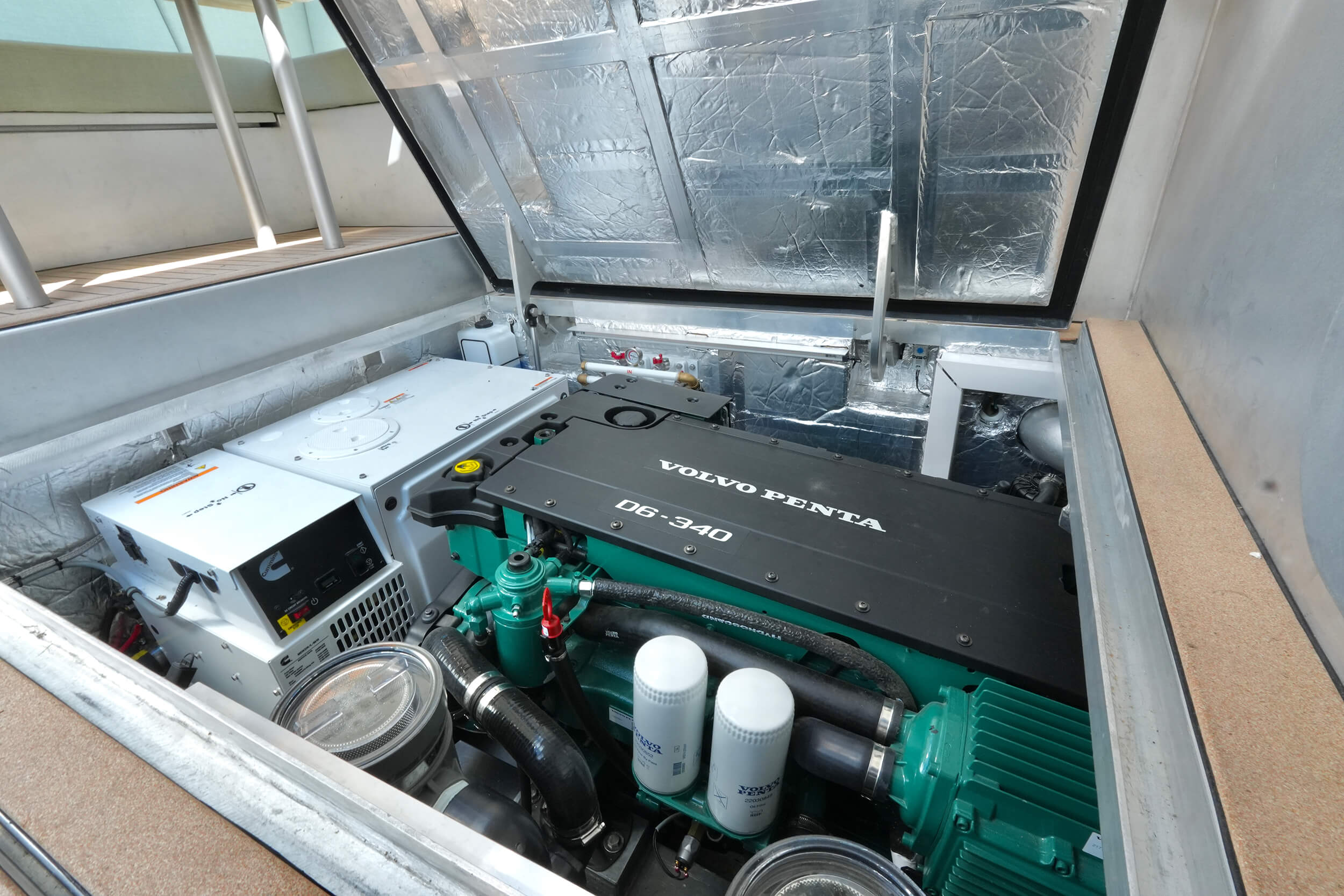

99. Tech – Volvo Penta D6 340 Hp
100.Tech – Ventilation – by two fans, under roof off from water spray
101.Tech – Vetus Waterseparator
102.Tech – Double – Welded – standpipes above water level for extra security
103.Tech – Engine room – 45mm Fully insulated engine room

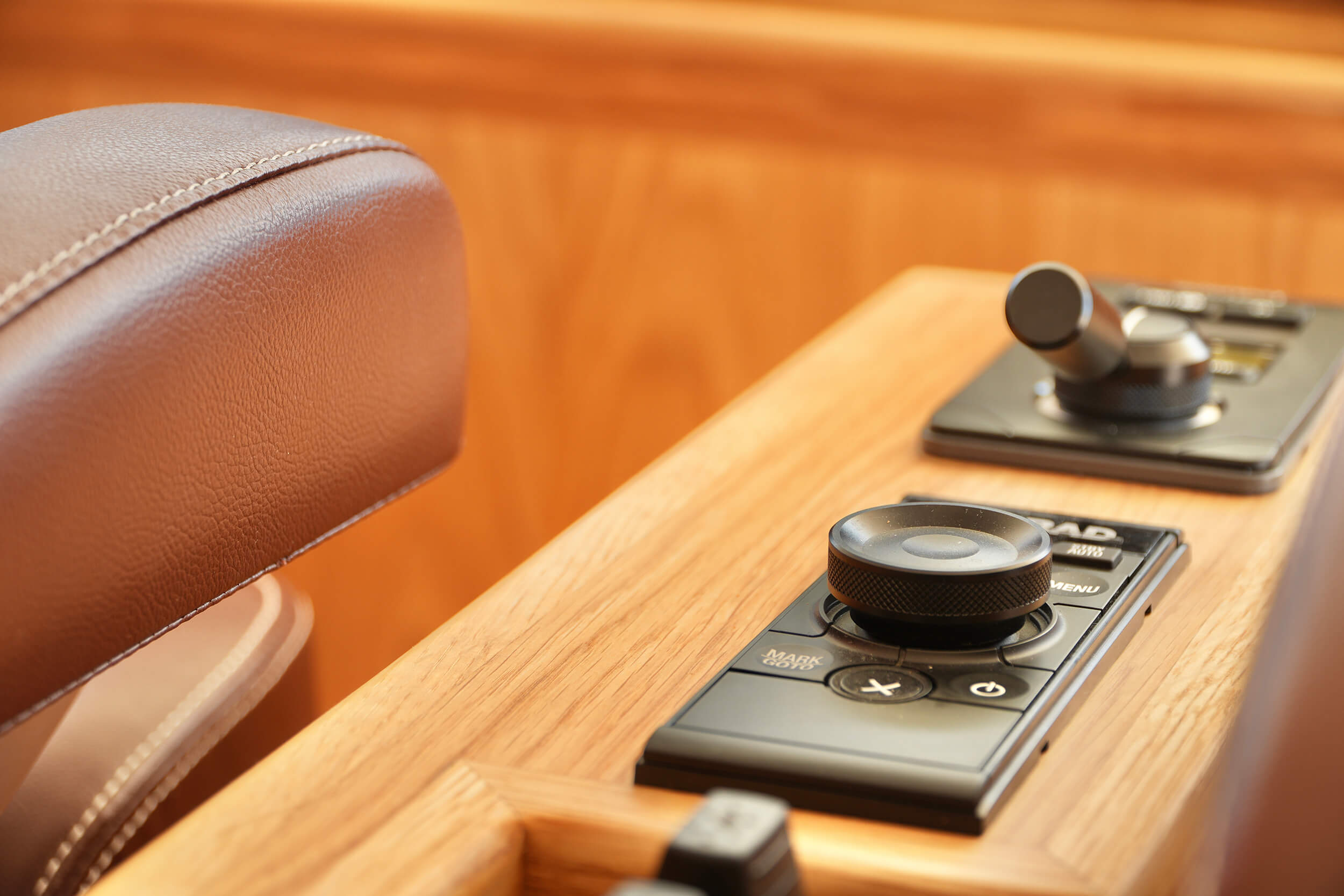

104.Tech – 5-blade prop. Tested and tuned, supervised by Volvo Penta
105.Tech – Hydraulic engine room hatch
106.Tech – Hydraulic steering with Joystick
107.Tech – Whole ship, incl storage is fully insulated with foam.
108.Tech – Sidepower Thrusters – Bow SEP 210 24v / Aft SEP 100 24v

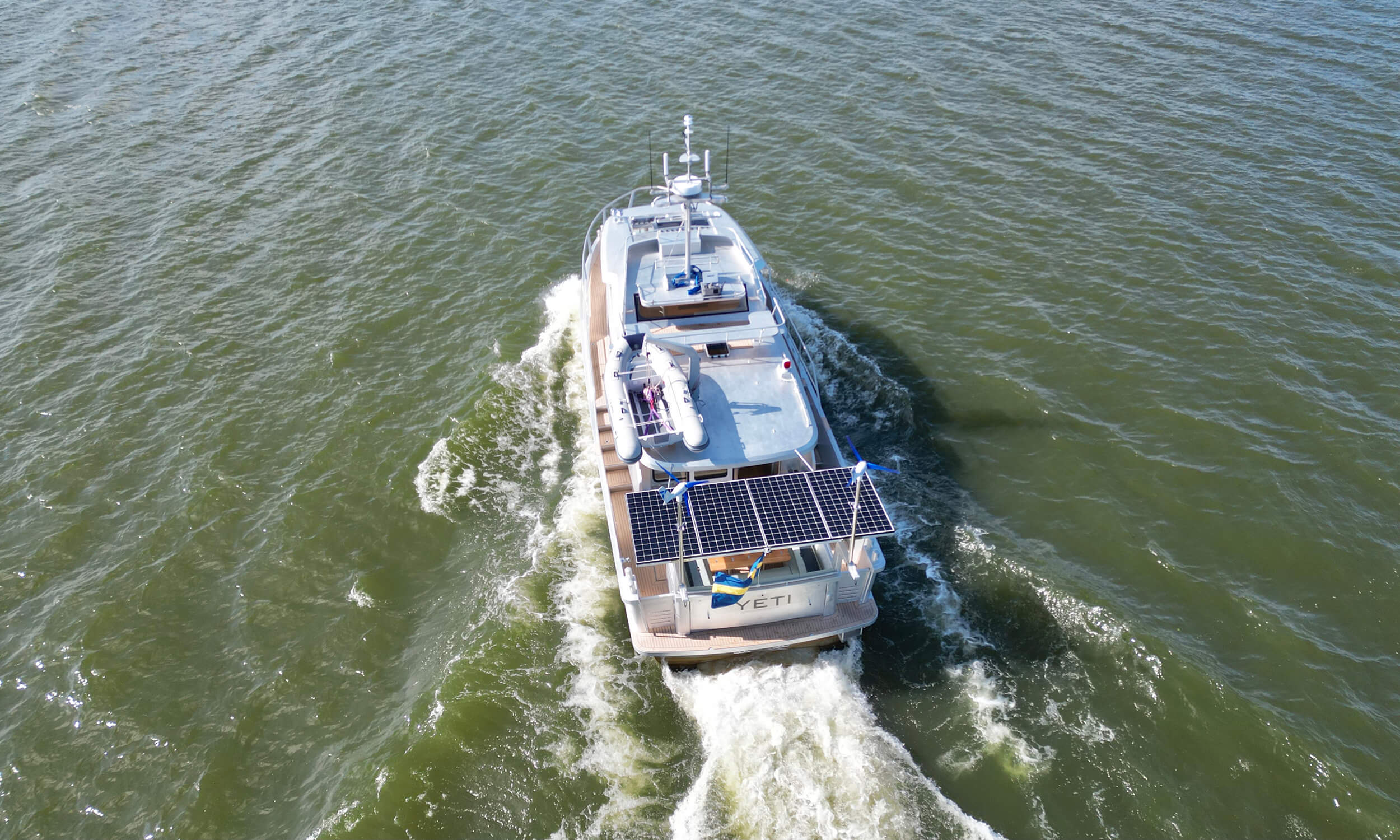

109.Tech – Solar Panels 4x SunPower SPR-MAX3-400 – 400w
110.Tech – Vented Solar-panel suspended ceiling.

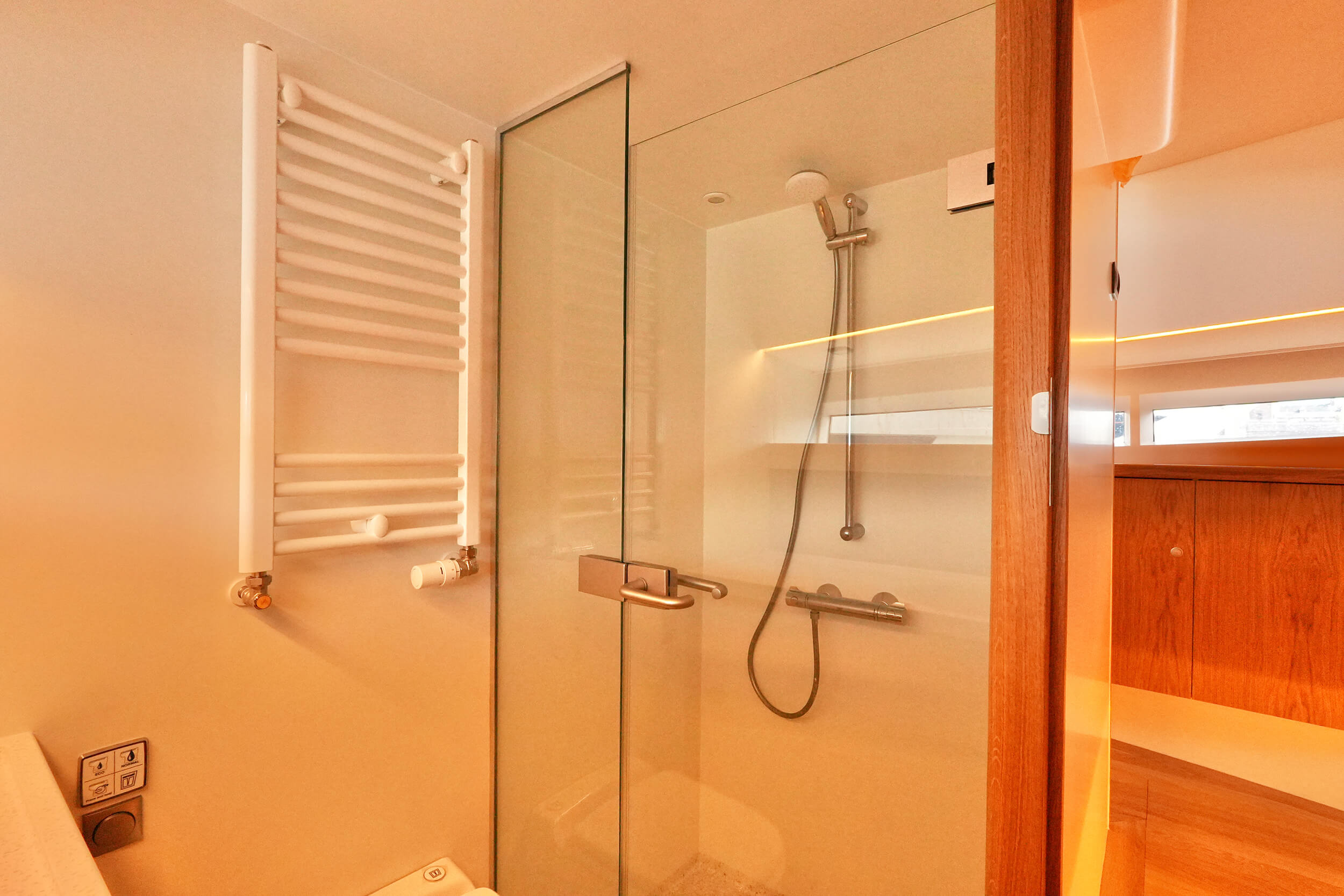

111.Tech – Windpower – Silent Wind generators 2x 24v
112.Tech – Shore power with 30m cable
113.Tech – kWh metering of shore power connection
114.Tech – Fabrics inside – Kvadrat – Moss – 0018 – by Sacho
115.Tech – Fabrics outside – Sunbrella
116.Teck – Deck – marine Deck 2000 kork
117.Tech – Shore power connection for battery charging
118.Tech – Kabola 13.5 kW heater
119.Tech – Upnor – Central heating system
120.Tech – Water Radiators Trough out the boat
121.Tech – Floor heating
122.Tech – Engine room heating
123.Tech – Aft storage heating
124.Tech – 240v and USB outlets throughout the ship
125.Tech – House Batteries 12 x AGM 12v 220Ah (total 24v 1320 Ah – net 19kWh
126.Tech – Dedicated batteries for bow thruster and anchor winch AGM 24V 75Ah
127. Tech – Dedicated batteries for stern thruster AGM 24V 75Ah
128.Tech – Batteries in (plastic) battery boxes with cover, main switch and main fuse
– distribution system incl. necessary overcurrent protection devices, relays, contactors and
all other necessary components, a complete switch panel at the helm, including battery monitor
129.Safety – Life Raft – Seago 6-pers
130.Safety – Foam extinguisher 3×2 and 1×6 l
131.Safety – Emergency valve to waste tank pump
132.Safety . 123 dB dual tone horn with heavy duty compressor. Kahrlenberg
133.Safety – Tender 310 Talamex Silverline
134.Safety – Windlass – Maxwell – Anchor Winch RC12-10HD – for mooring help, warping and lifting
waterborne persons and easy hoisting of tender aft.
135.Safety – Lifting system – Hoist person from water
136.Safety – SERTEC – Flash protection system
137.Safety – Bilge system . The three compartments of the ship are each equipped with a double bilge system.
The system consists of two bilge pumps, two float switches, an automatic pump switch, pipework
and a feed-through to the outside per compartment. The float switch triggers an alarm.
After a fixed time, the bilge pump is started automatically. When the second float switch is
activated within the specified time, both bilge pumps start immediately.
The waiting time gives you the opportunity to determine the cause before pumping is started.
If you do not hear/see the alarm, the pump will start automatically. If the leak is so serious
that 1 pump is not sufficient, the second pump will switch on automatically after a while.
The pumps can of course also be switched on or off manually.
138.Safety – Winches aft deck – Andersen – RA2034010000 – 34 ST winch FS 2x

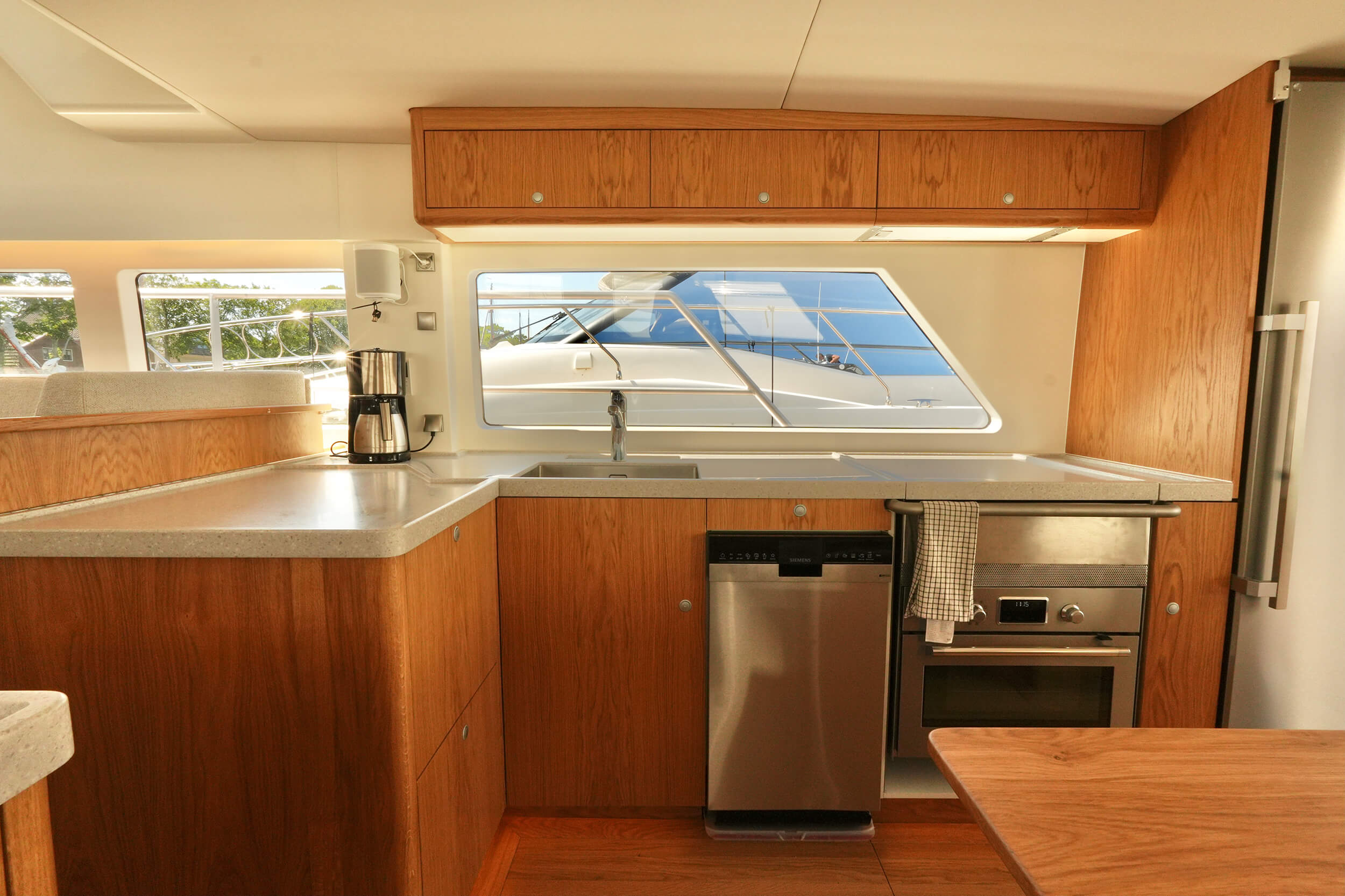

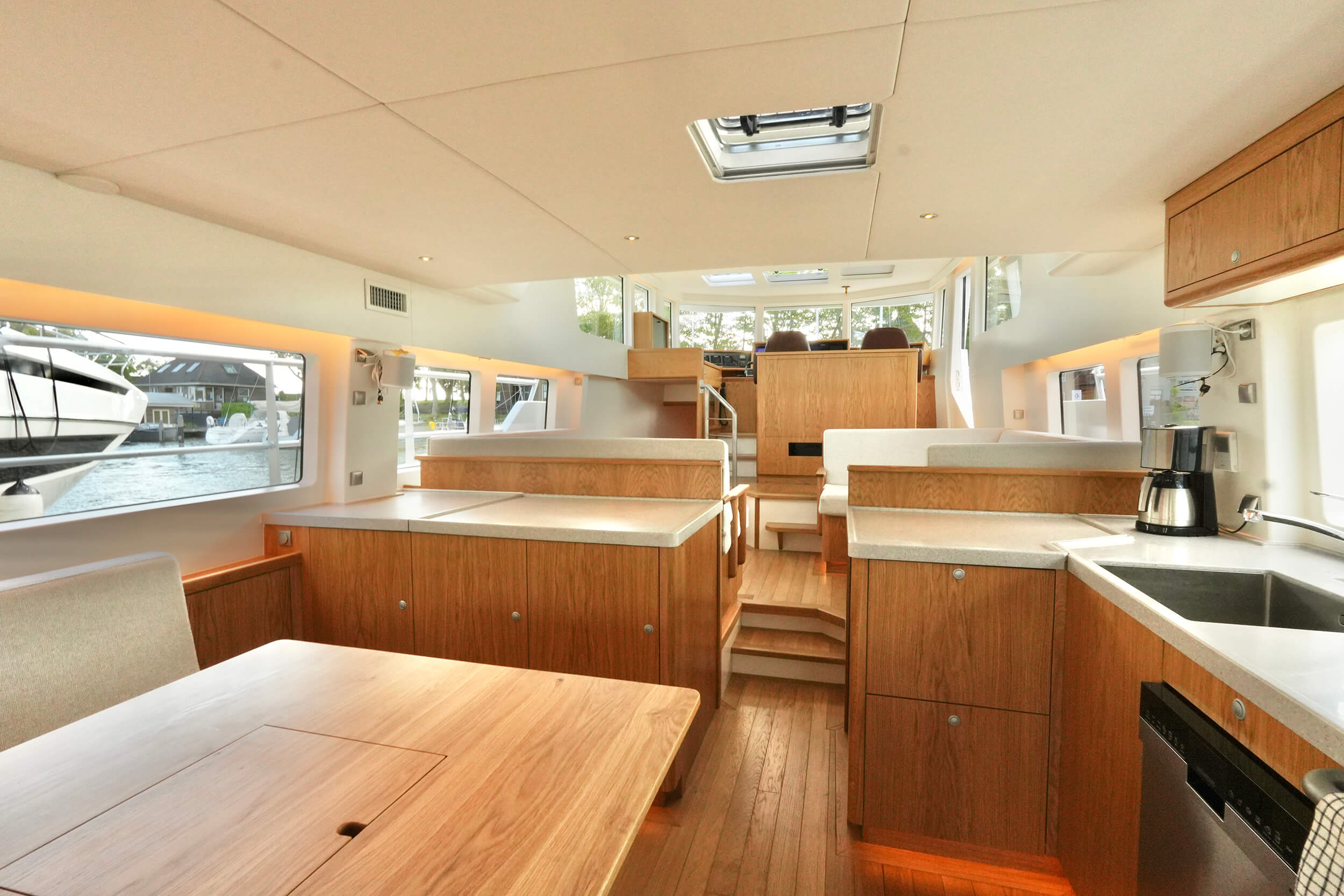

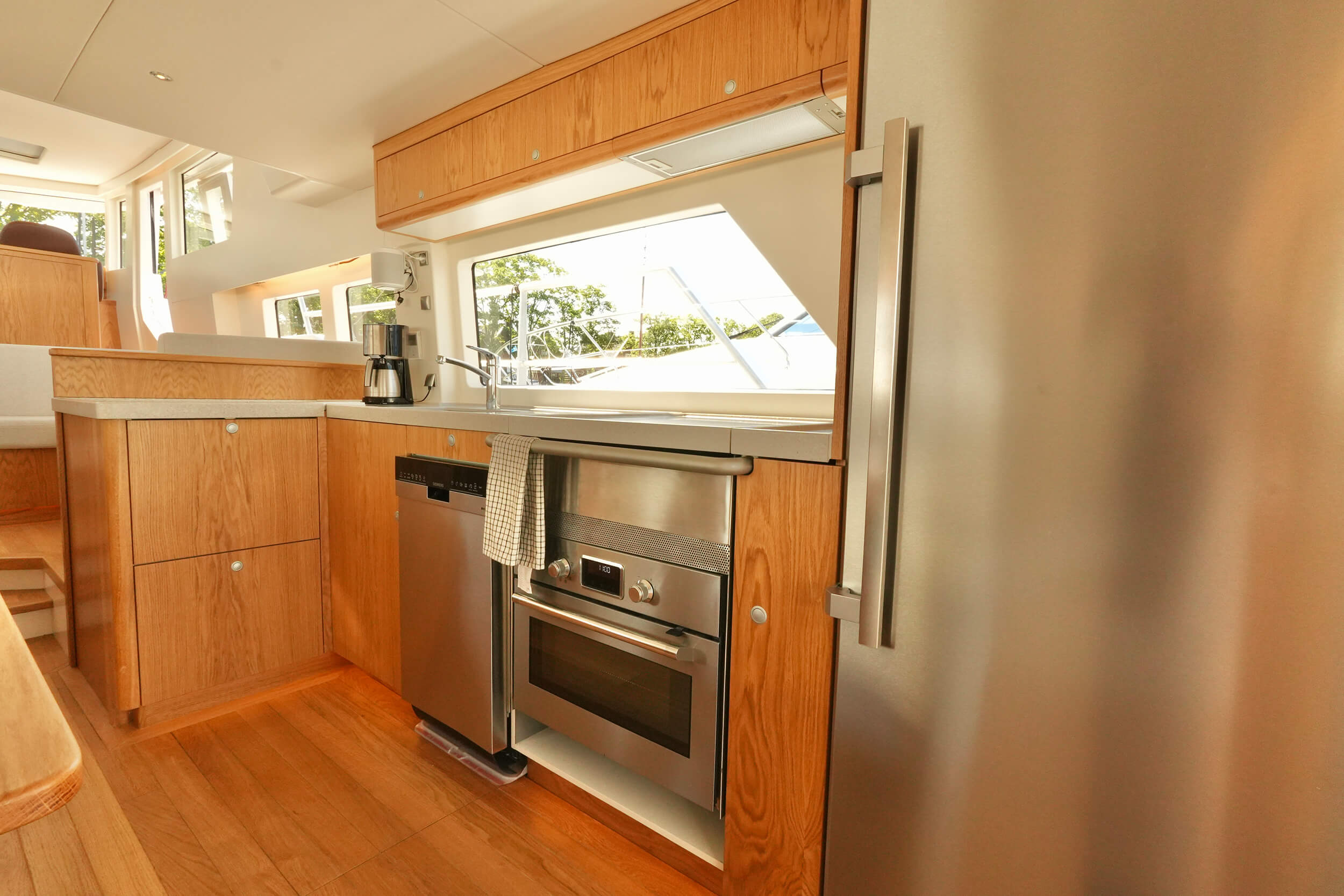

139.Galley – Corian tops
140.Galley – Kenyon Bridge induction 4-burner
141.Galley – Domestic fridge – Liebherr 396 liter
142.Galley – Domestic freezer – Etna – 70 liter
143.Galley – Oven/Microwave – IKEA Smaksak
144.Galley – Dishwasher – Siemens
145.Galley – Washingmachine Siemens
146.Lights – Dimmable strip lights – Walls, throughout the ship
147.Lights – Dimmable strip light – Foot lists, throughout the ship

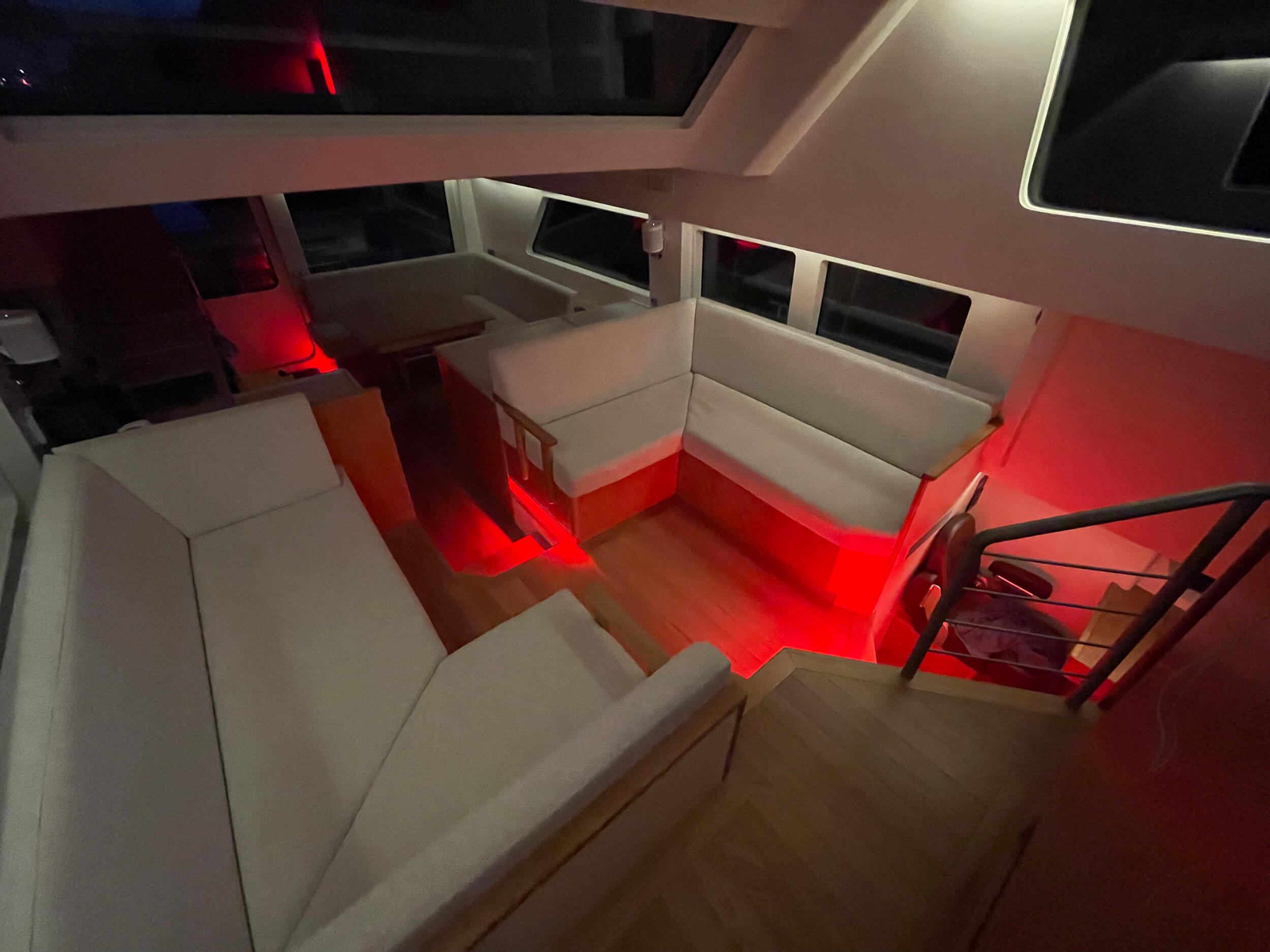

148.Lights – Dimmable strip light – Red nightlight – PH, Louge, Galley
149.Lights – Dimmable strip light – Working benches Corian ChineseWall
150.Lights – Dimmable spot lights – Above Corian chineseWalls
151.Lights – Dimmable spot lights – Center Galley Table
152.Lights – Dimmable spot lights – Galley Sofa
153.Lights – Dimmable spot lights – Outside entrance
154.Lights – Dimmable spot lights – Outside aft table
155.Lights – Dimmable spot lights – Outside – Side walkways aft
156.Lights – Spot lights – Outside – Around PH
157.Lights – Spot lights – Aft over Swinplatform
158.Lights – Spot lights – Flybridge & Side deck
159.Lights – DHR – Search lamp
160.Lights – Sockets for searchzamps in top anchor box
161.Lights – White Dimmable Reading laps with USB & Red nightlight. Master, Guest 2, Lounge, Galley, PH,
Workstation 2. Prebit Flex 07 Chrome with leather band – 500mm
162.Nav – Simrad – PH – Monitors 2x 19” NSO

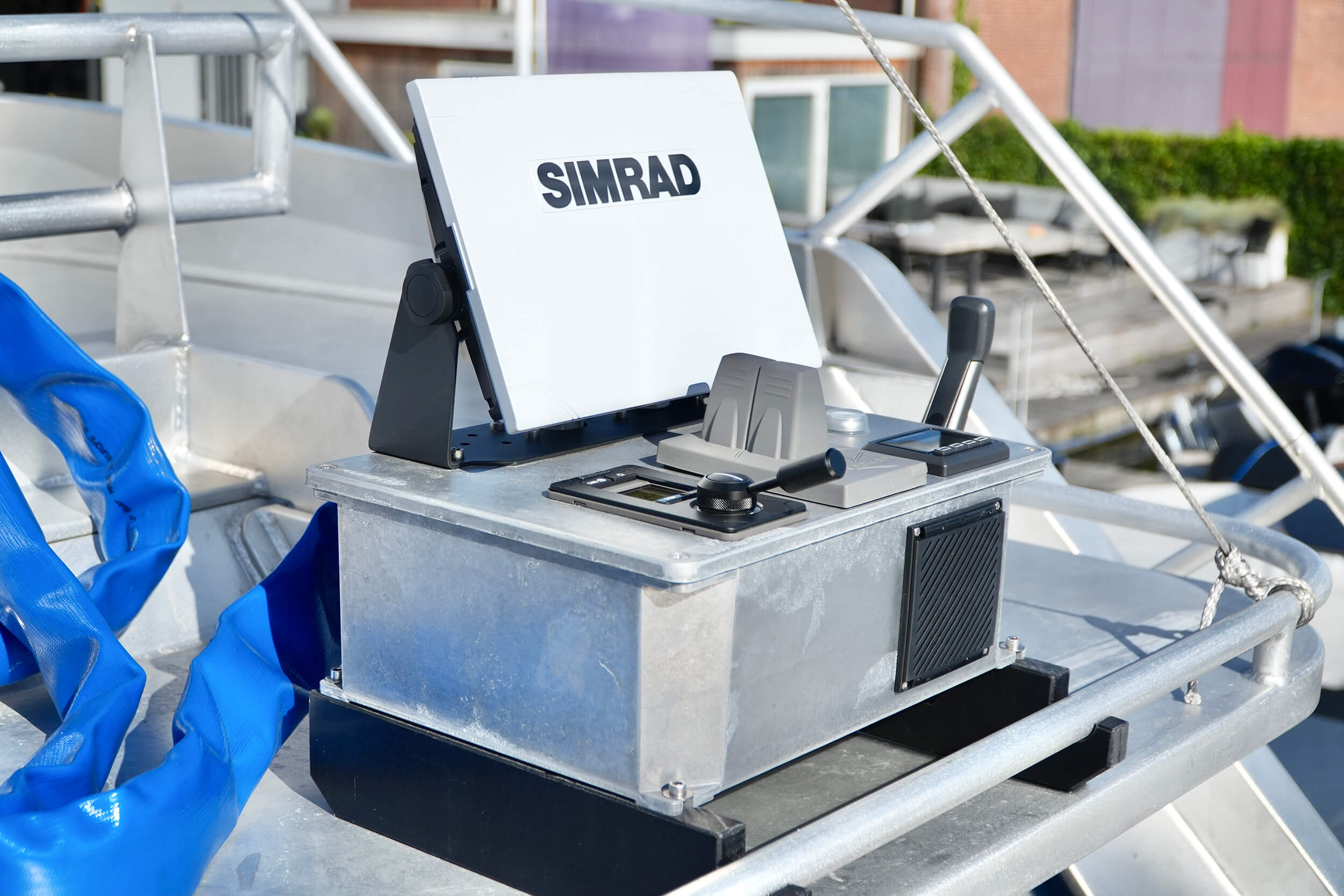

163.Nav – Simrad – Flybridge Monitor – Go 12
164.Nav – Simrad – Wifi network
165.Nav – Simrad – Forward Scan
166.Nav – Simrad – Trip and ecosounder
167.Nav – Simrad – Halo Radar 24
168.Nav – Simrad – Autopilot
169.Nav – Simrad – GPS Compass
170.Nav – Simrad – Joystick steering x 3 (Ph, Aft deck, Flybridge)
171.Nav – Simrad – Joystick backup steering – PH
172.Nav – Simrad – Hydraulic steering
173.Nav – 2st 4G/5G – antennas in mast
174.Nav – 2st VHF antennas – VHF & Ais
175.Nav – Lopolights – Double installations – for safet. Steamlight extra bright for better visibility

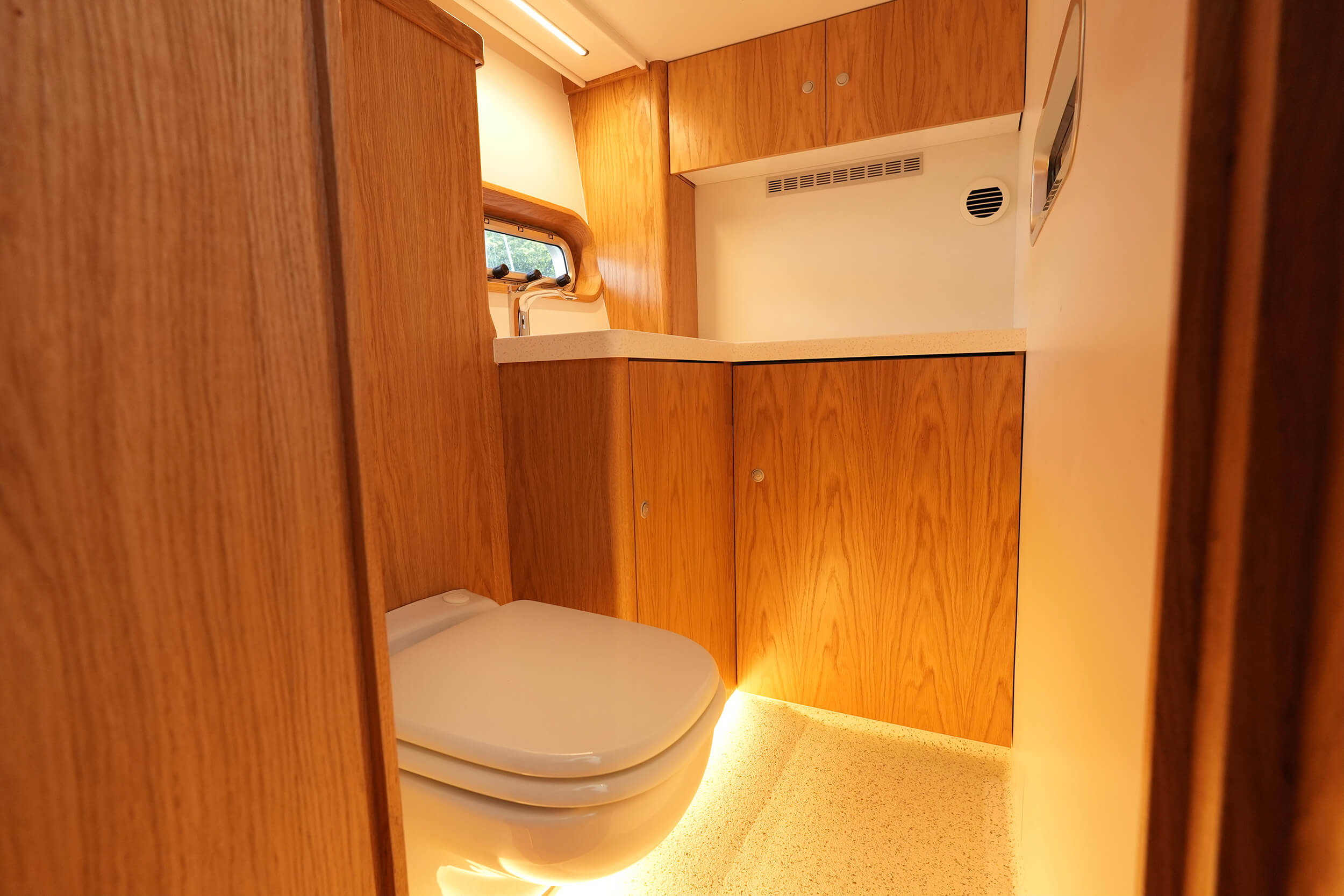

176. Sanitary – 3x electric hanging WC toilets

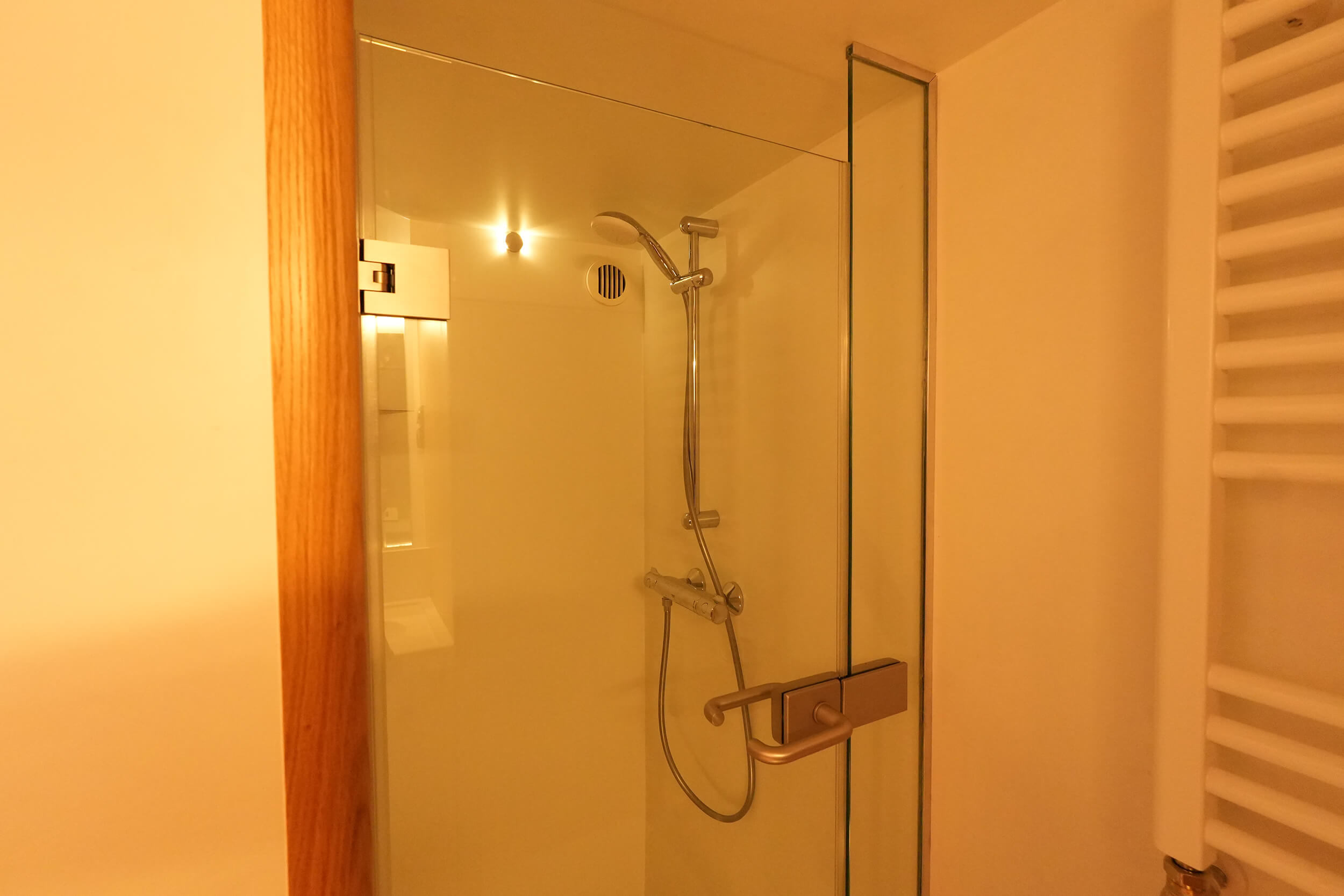

177.Sanitary – 2x Showers with Glass doors
178.Sanitary – Grohe Mixers
179.Sanitary – Boiler 75 liter
180.Sanitary – Deck wash Bow
181.Sanitary – Permanent shorewater connection aft
182.Sanitary – UV Filter water
183.Sanitary – Homa HLE55 jet drinking water pump
184.Sanitary – Mechanical Shower vents

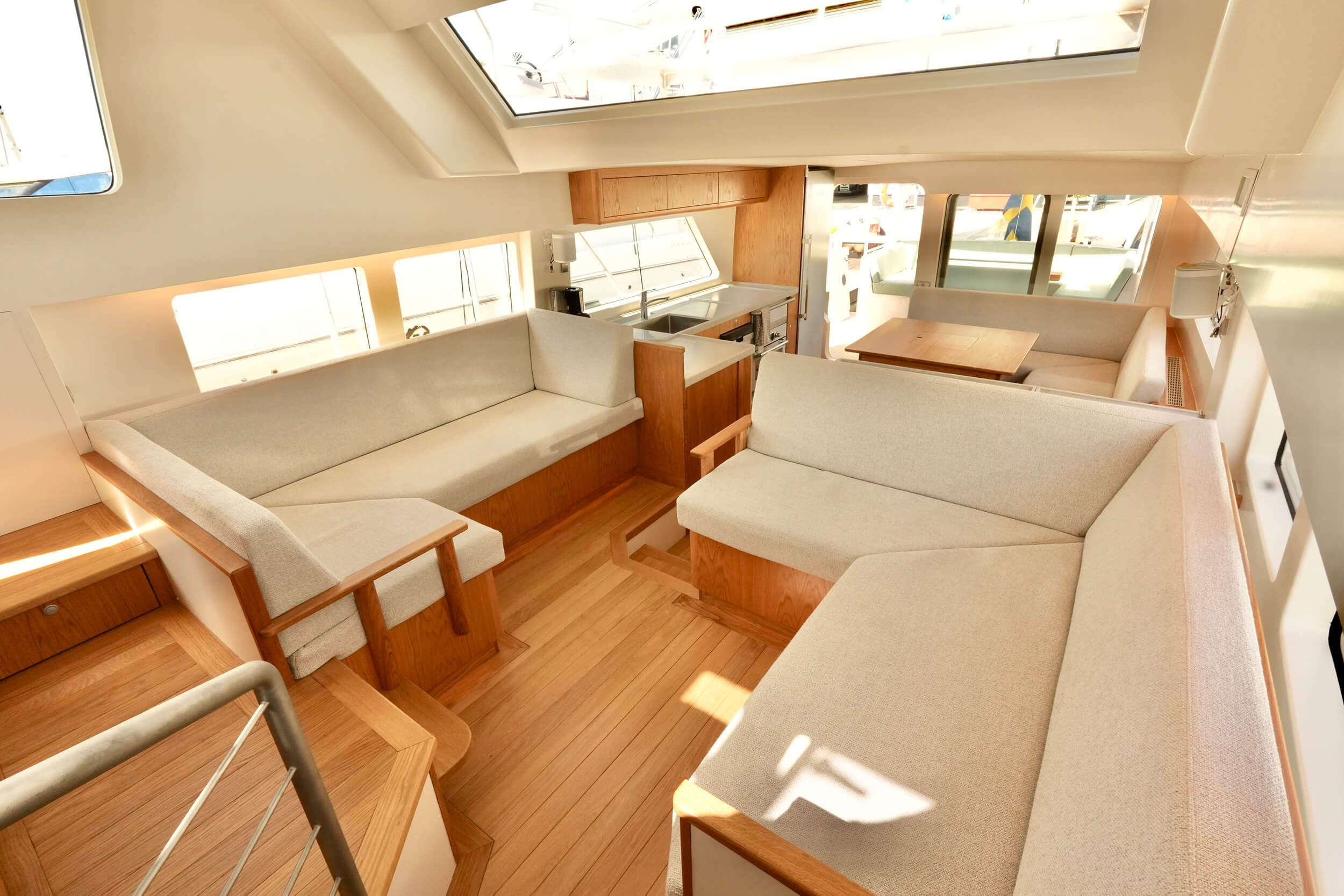

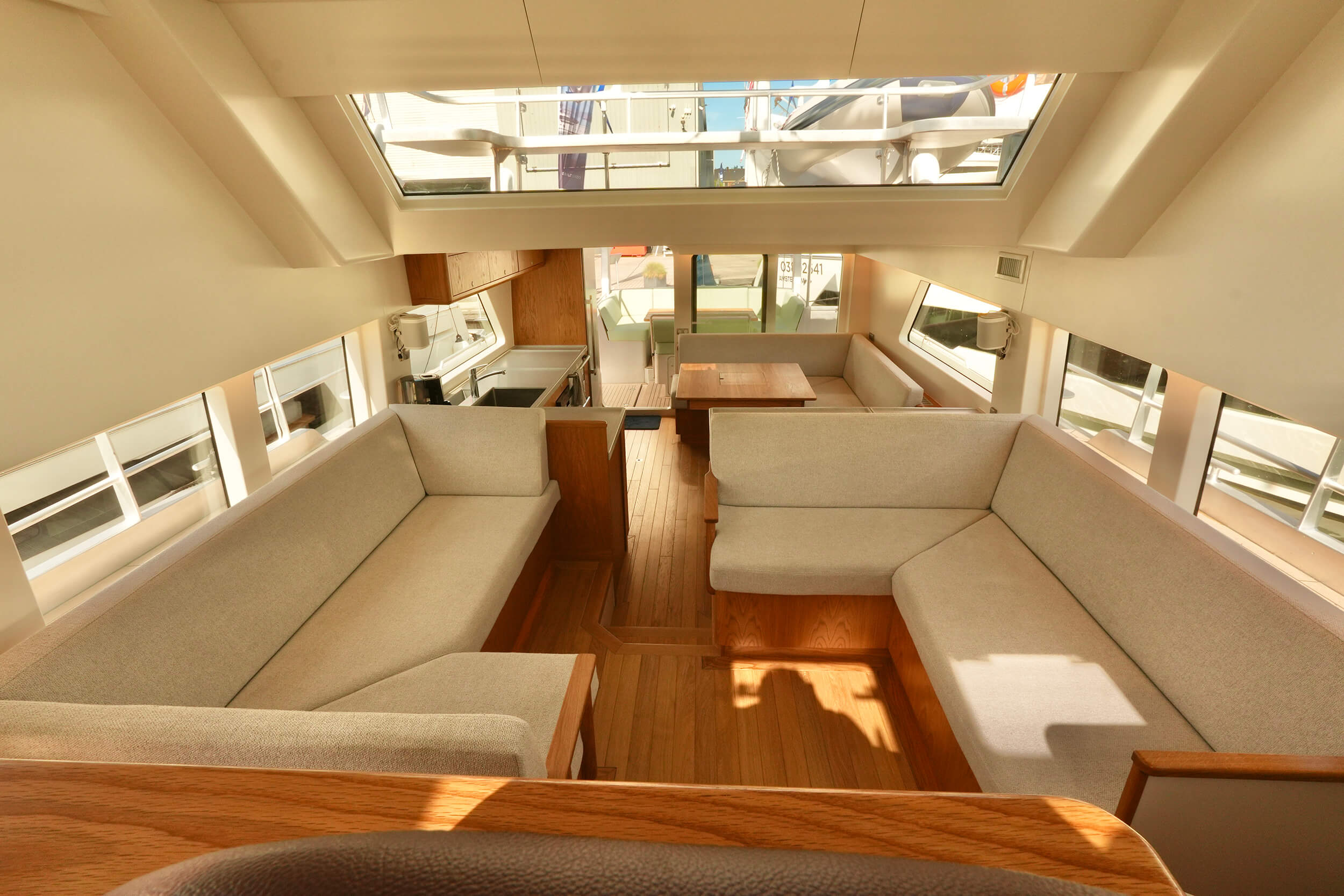

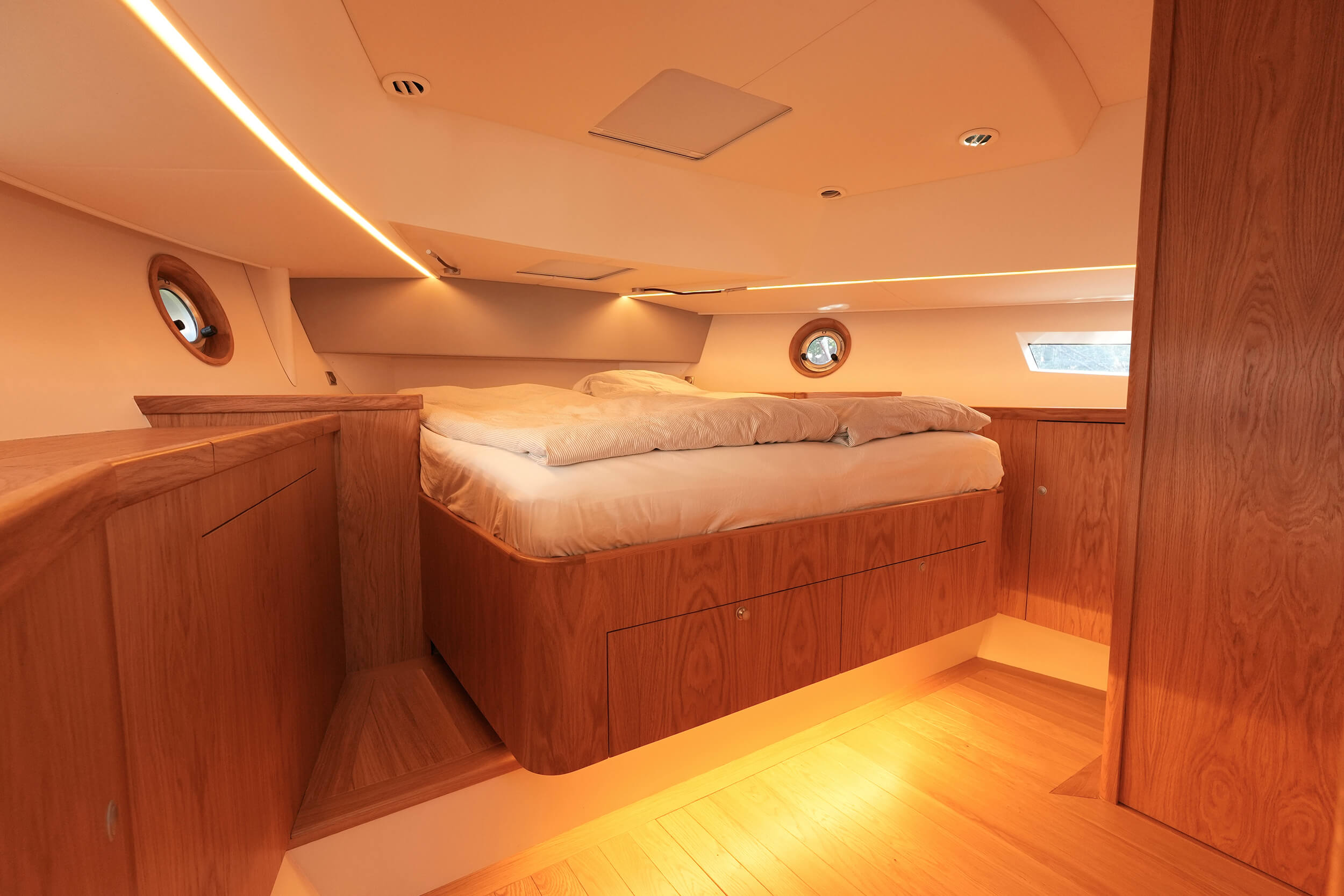

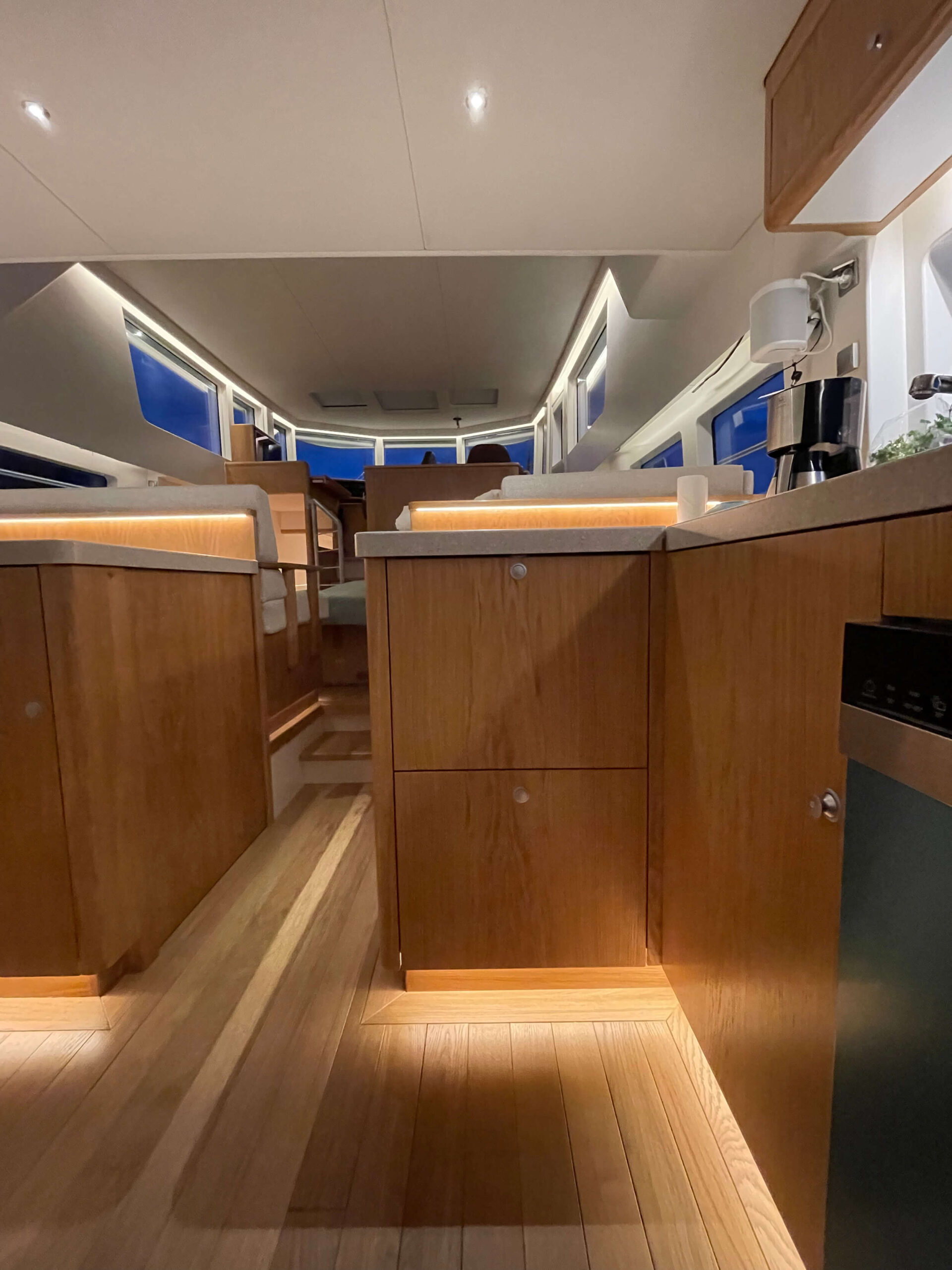

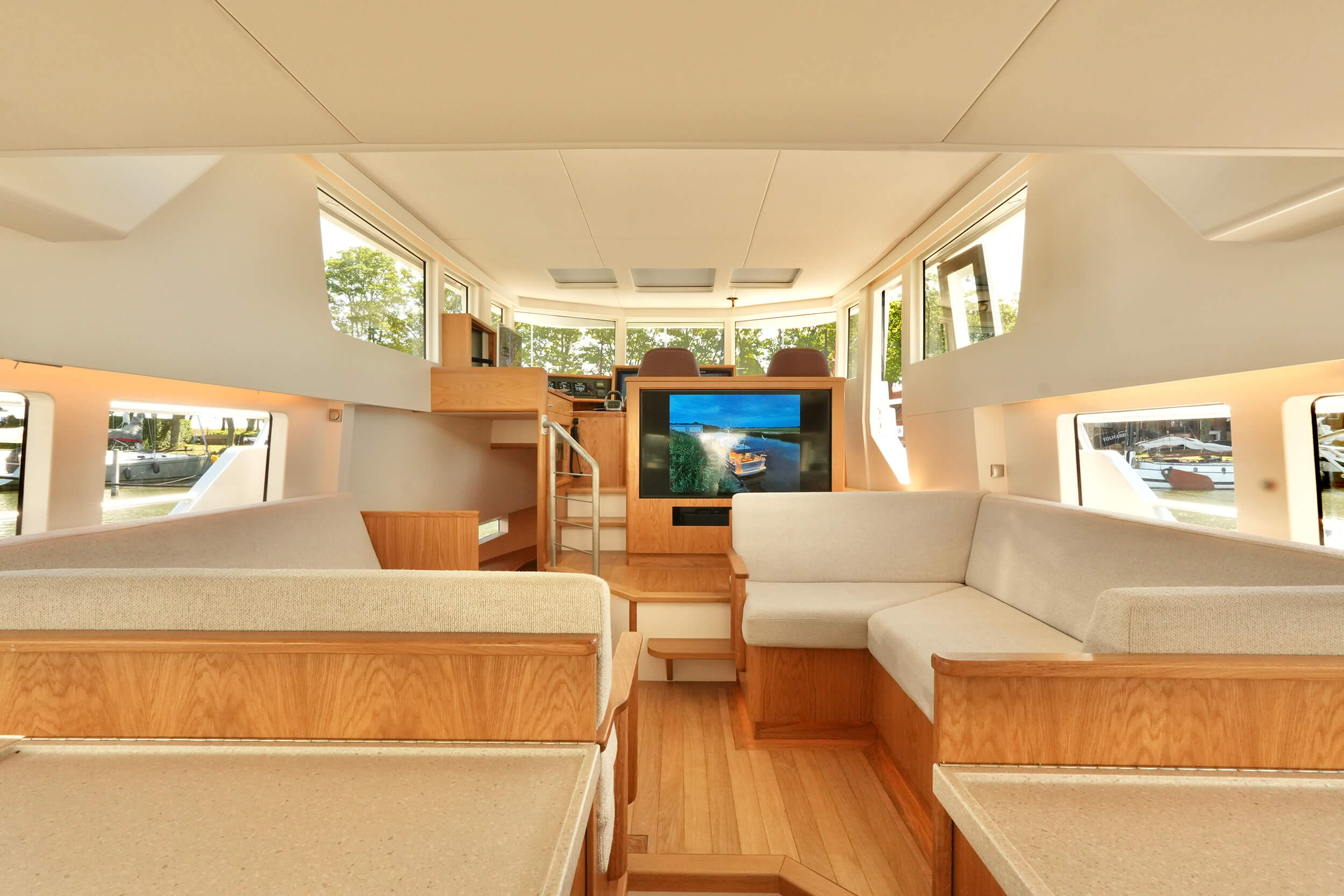

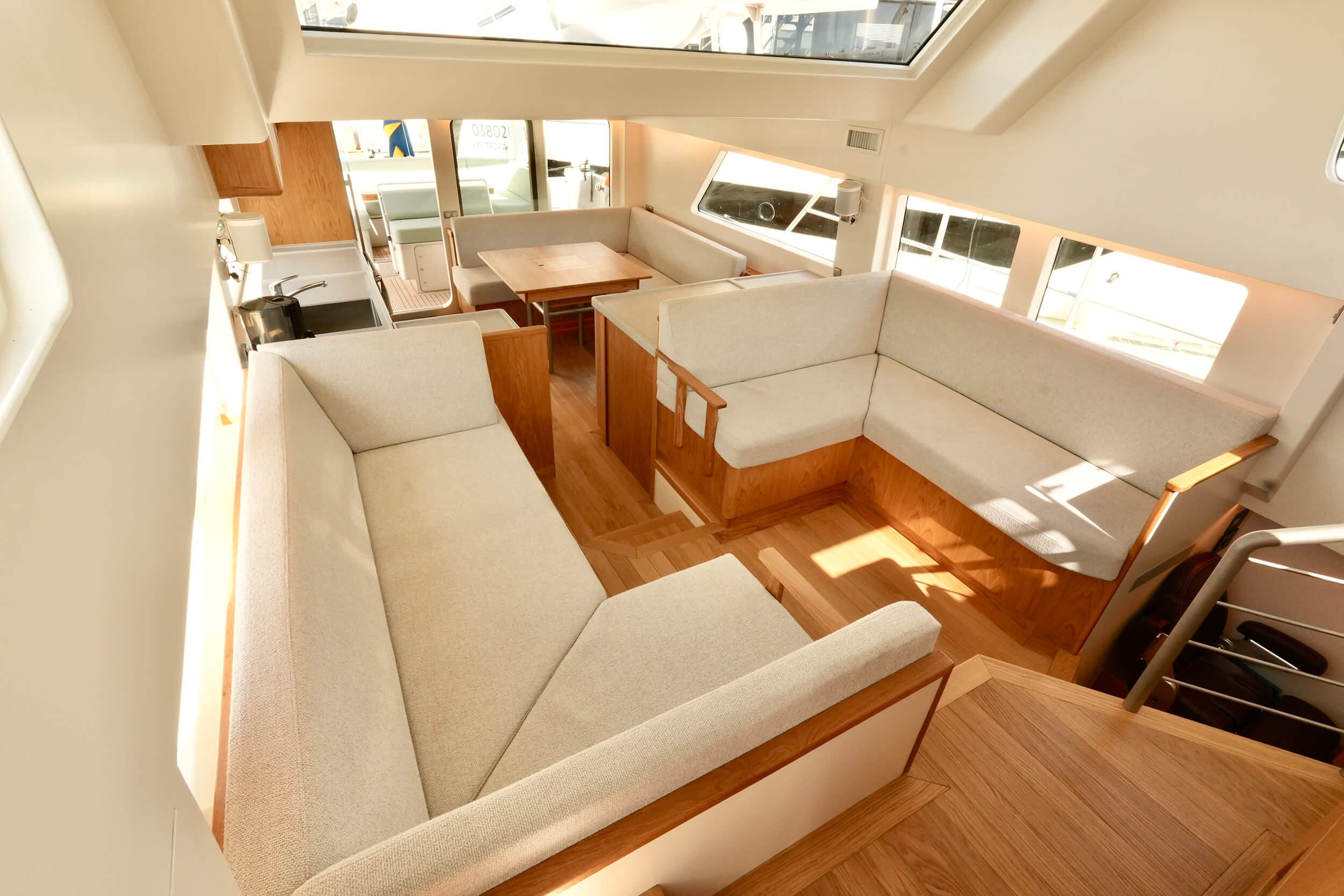

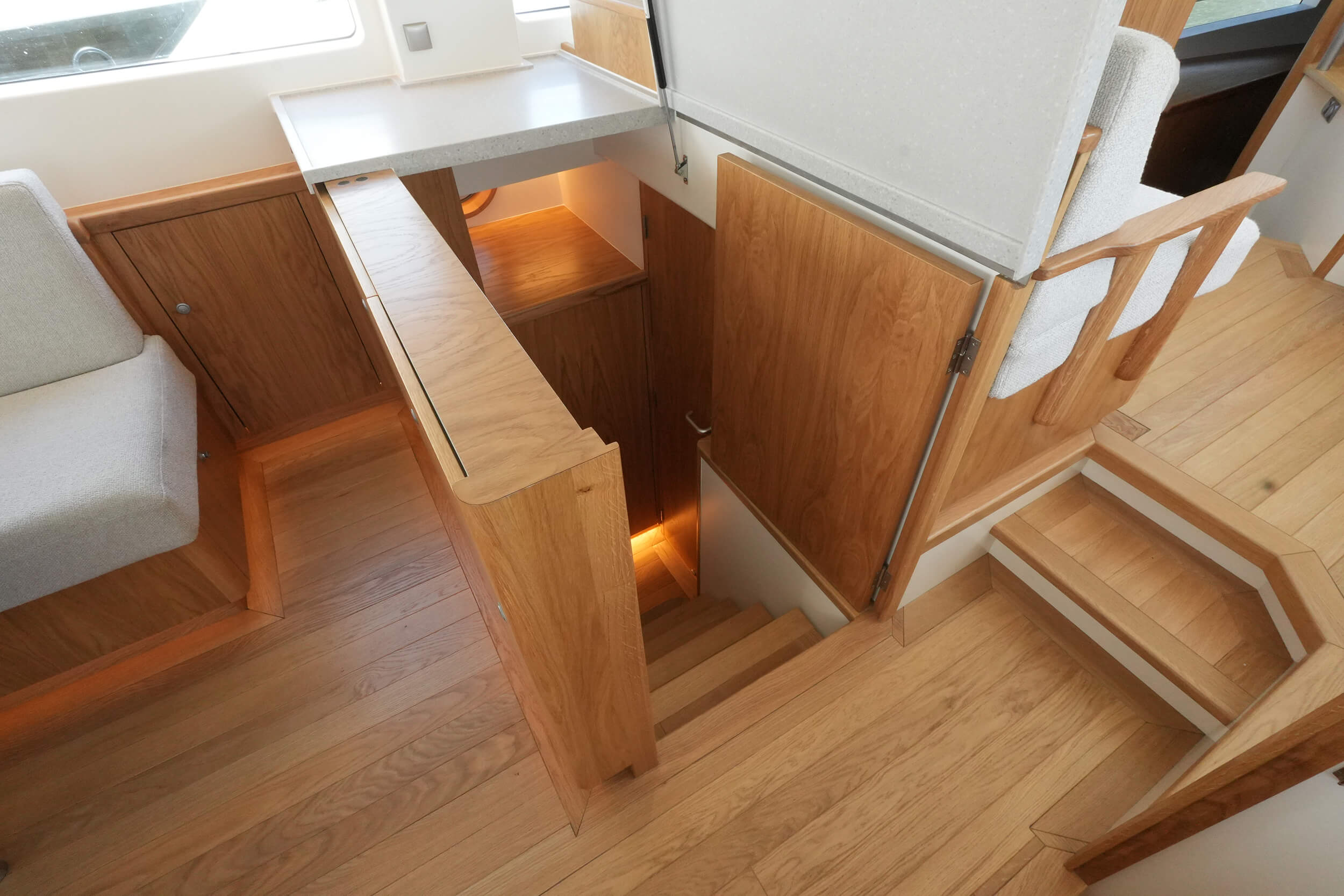

185.Interior – Oak-flooring, Standing Oak veneer on cabinets and drawers, White walls, White sound
dampening panels in ceilings, Corian in Galley, Washroom and WC. All round corners for gentle passages.
186.Interior – Ph Specially handmade design with floating instrument panels.
187.Interior – Fabrics outside – Sunbrella
188.Interior – 8 – pers Oak-table – on blasted stainless legs – with central stowage and drawers in galley

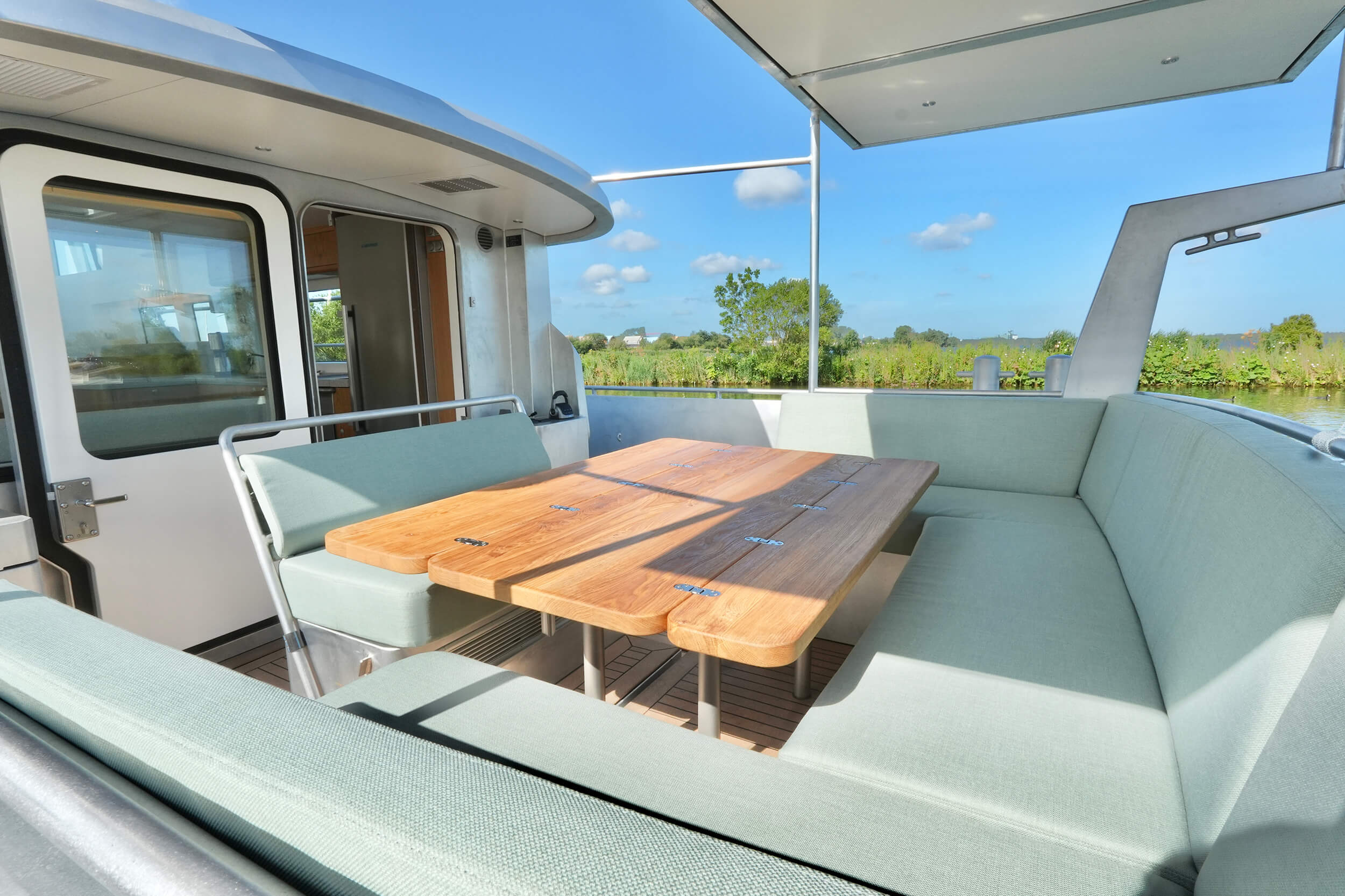

189.Interior – Foldable oak-table outside – on blasted stainless legs aft area.
190.Interior – Blasted stainless handrail to Pilothouse
191.Interior – Blasted stainless handrail in front of cooktop
192.Interior – Corian Cover over cooktop
193.Interior – Corian Hidden doors to Gust/Washroom areas
194.Interior – Fully – SolarScreen Package – Down-foldable screens Upper windows – pro mil/navy – NM
195.Interior – Fire extinguisher NM

The ship details shown on this page, such as ship specifications and images, are intended as a guide to give a fair description of the vessel and are intended to be correct but accuracy cannot be guaranteed due to human mistakes or outdated information. Therefore no rights may be derived, and Lengers Yachts cannot be held liable, for any inaccuracies in the aforementioned ship details.

Globemaster 50 LRX

Globemaster
50 LRX

Contact us

Find your way

Lengers' services

Contact us

Lengers Yachts B.V

Lengers Yachts Düsseldorf

Lengers Yachts Munich

Lengers Yachts Bremen

Lengers Yachts Belgium

Lengers Yachts Scandinavia

Globemaster50 LRX

Yacht information

Globemaster 50 LRX - Interior A

Globemaster 50 LRX - Interior B

Globemaster 50 LRX - Interior Sectie B

Globemaster 50 LRX - Interior C

Contact us

Find your way

Lengers' services

Contact us

Discover our world

Lengers Yachts B.V

Lengers Yachts Düsseldorf

Lengers Yachts Munich

Lengers Yachts Bremen

Lengers Yachts Belgium

Lengers Yachts Scandinavia

Discover our world

Globemaster
50 LRX
