Bluegame
BG42 #42

HULL DECK CONSTRUCTION
Molded fiberglass construction made with iso-neophentilic light grey gel coat (RAL ref. 9018) 1,5 mm surface skin coat of vinylester resin
Hull bottom in monolithic lamination made with biaxial, mquadriaxial glass, and ISO DCPD polyester resin
Sandwich core construction on side hull Sandwich structural bulkheads
Deck and coach roof in sandwich with vinylester resin white gel coat (RAL ref. 9010)
Antifouling on hull

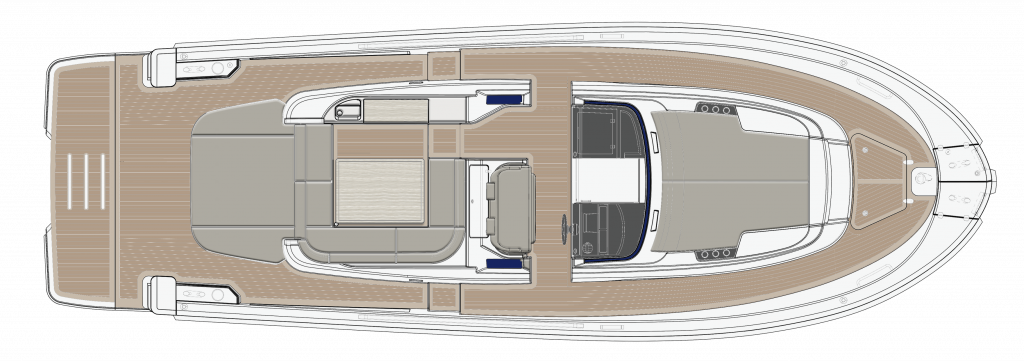

DECK
Twin fiberglass doors covering bow mooring system Anchor 15 kg S/S
Custom bow roller design S/S Galvanized chain 8 mm 75 m Anchor safety cable
Electric anchor winch 1000 W N° 2 S/S fairleads
N° 2 S/S cleats

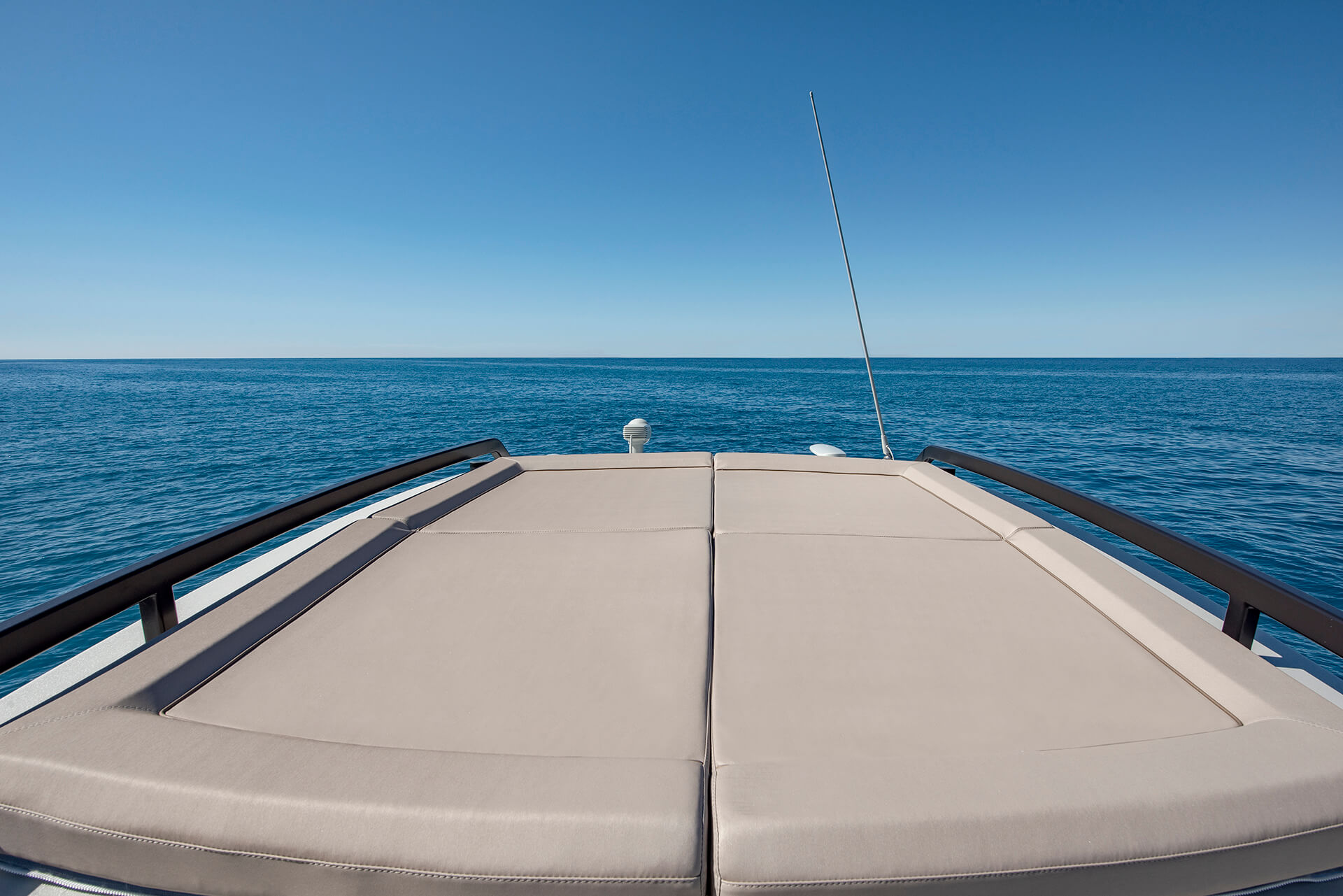

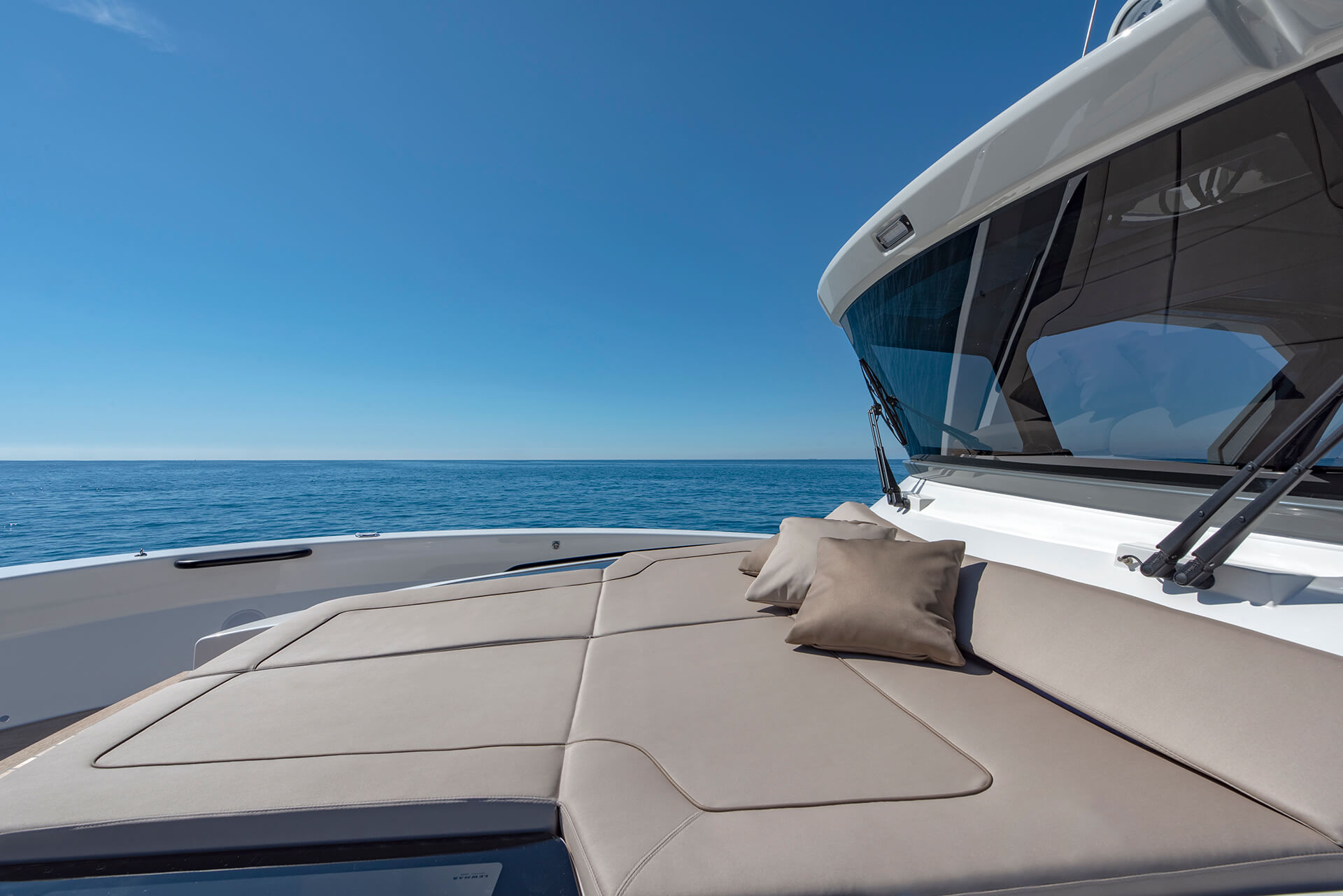

N° 2 retractable cleats at mid-ship Hatch for storage on bow area Bow sunpad
N° 2 fixed sky light
Navigation and anchor lights led system Front and aft docking lights
Courtesy lights on walkaround Horn
N° 6 speakers
N° 4 handrails in walkaround Double fuel inlets
Fresh water inlet
Black water tank drain outlet to shore
Full carbon fiber hard top with struts painted in dark grey (RAL ref. 7043) and top in light grey (RAL ref. 7038)
Hard top tempered glass windshield on front and methacrylate on two sides, integrated led lights with dimmer and lockers
Helm station strataglass enclosure
Double electric windshield wiper with washer
Side windows on coachroof with integrated portholes

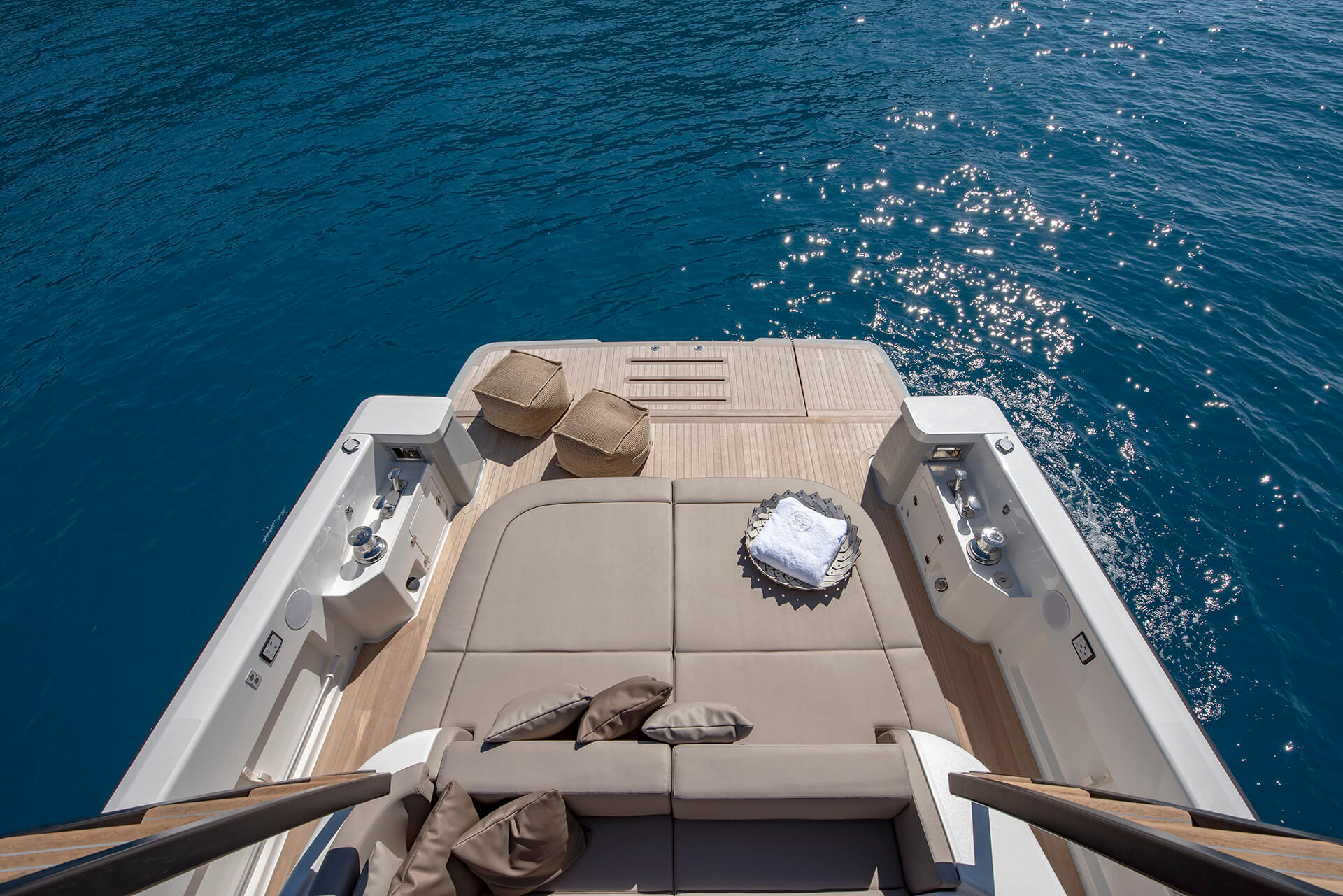

Stern sunpad openable with electric actuator for access to engines room
Gaff rack on both side
Shower with hot/cold water mixer GRP walkaround floor with antiskid S/S removable swimming ledder
N° 1 Boat name sticker BG font

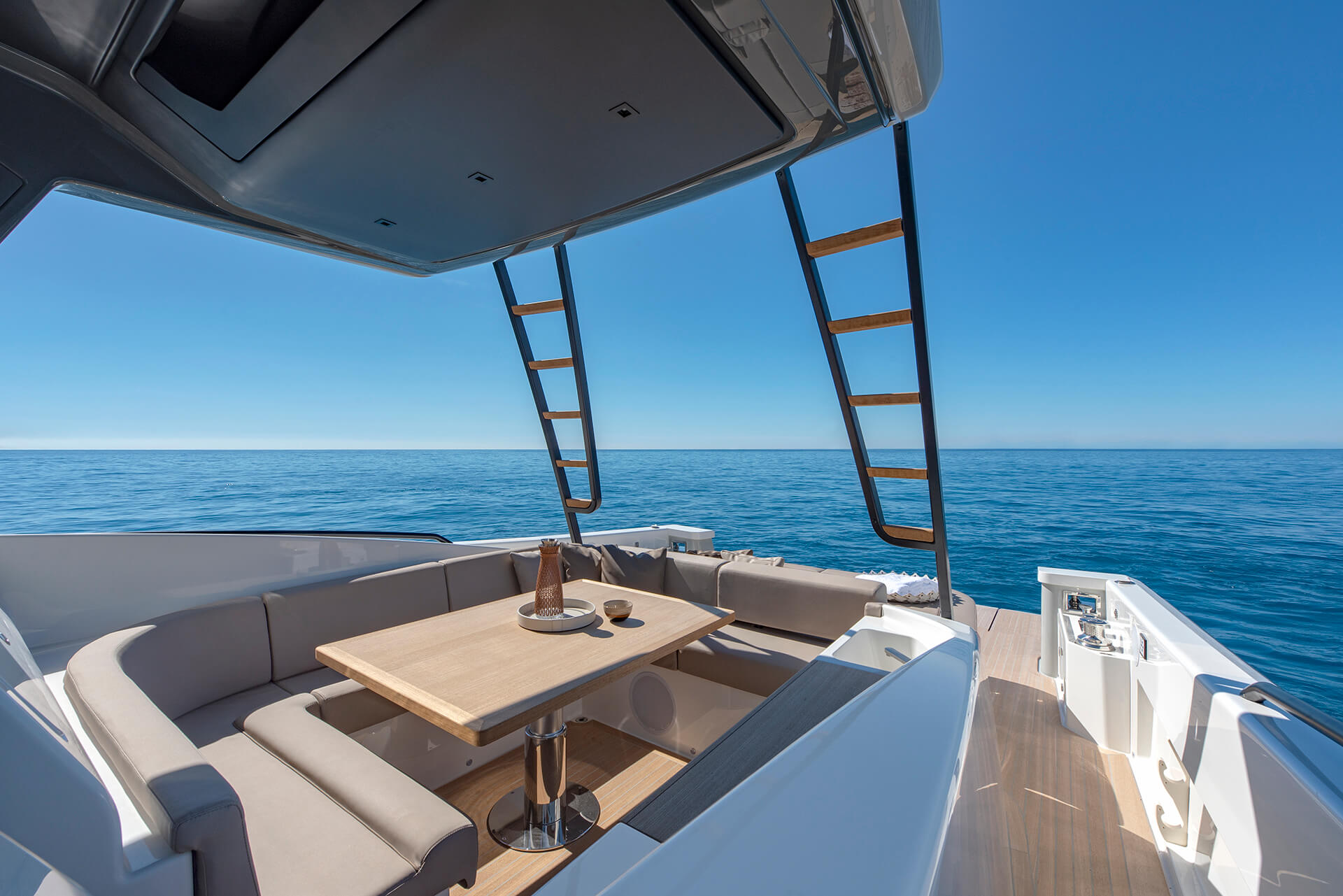

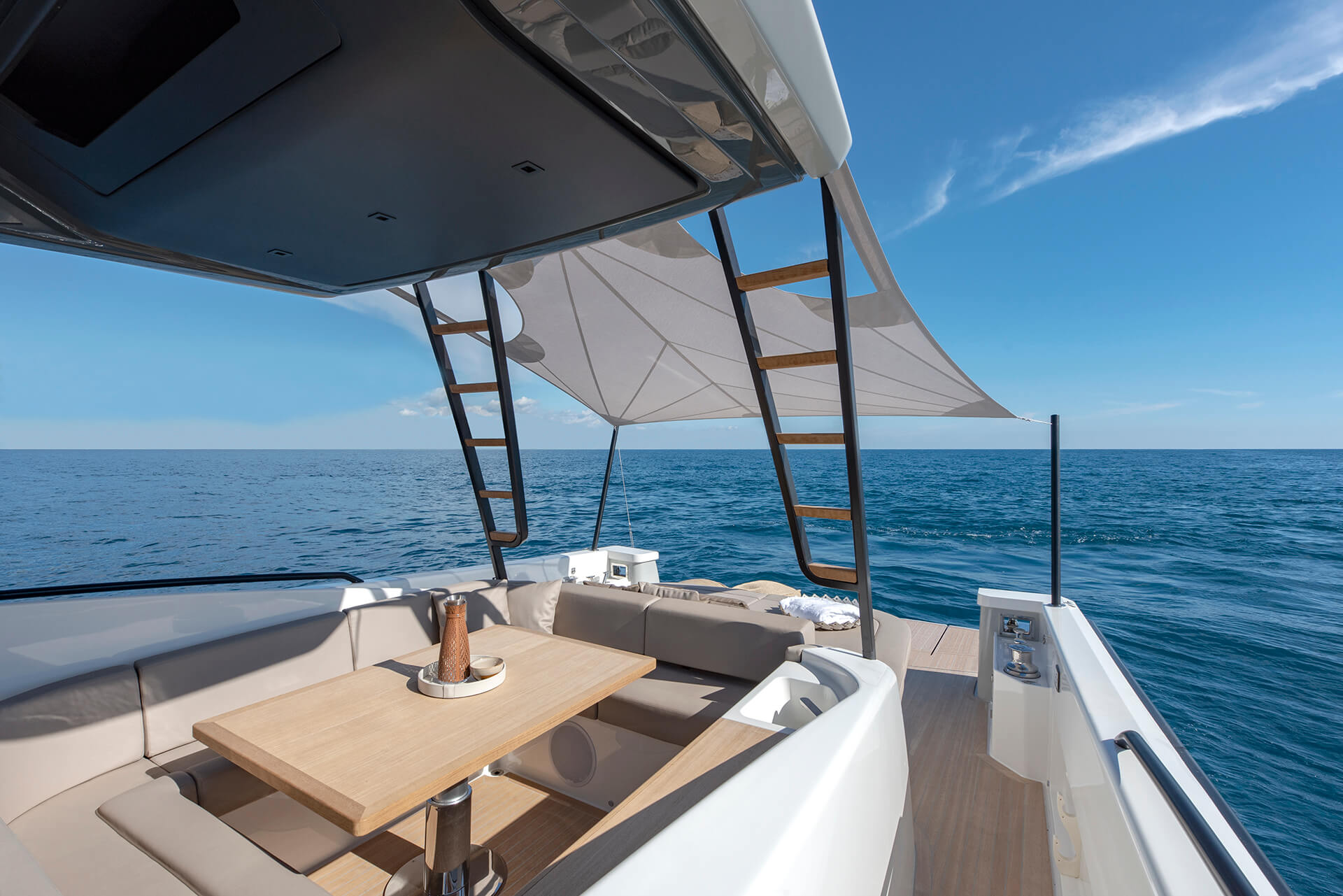

COCKPIT
Double pilot seat
Electric telescopic teak table Storage behind the pilot seat Dinette access sliding door Hi-Fi
Subwoofer
220 V & USB sockets Courtesy led light
Side bar cabinet with sink mixer tap water cold and warm with teak top
Cooktop ceramic Trash bin
N° 2 S/S fridge (42 l)

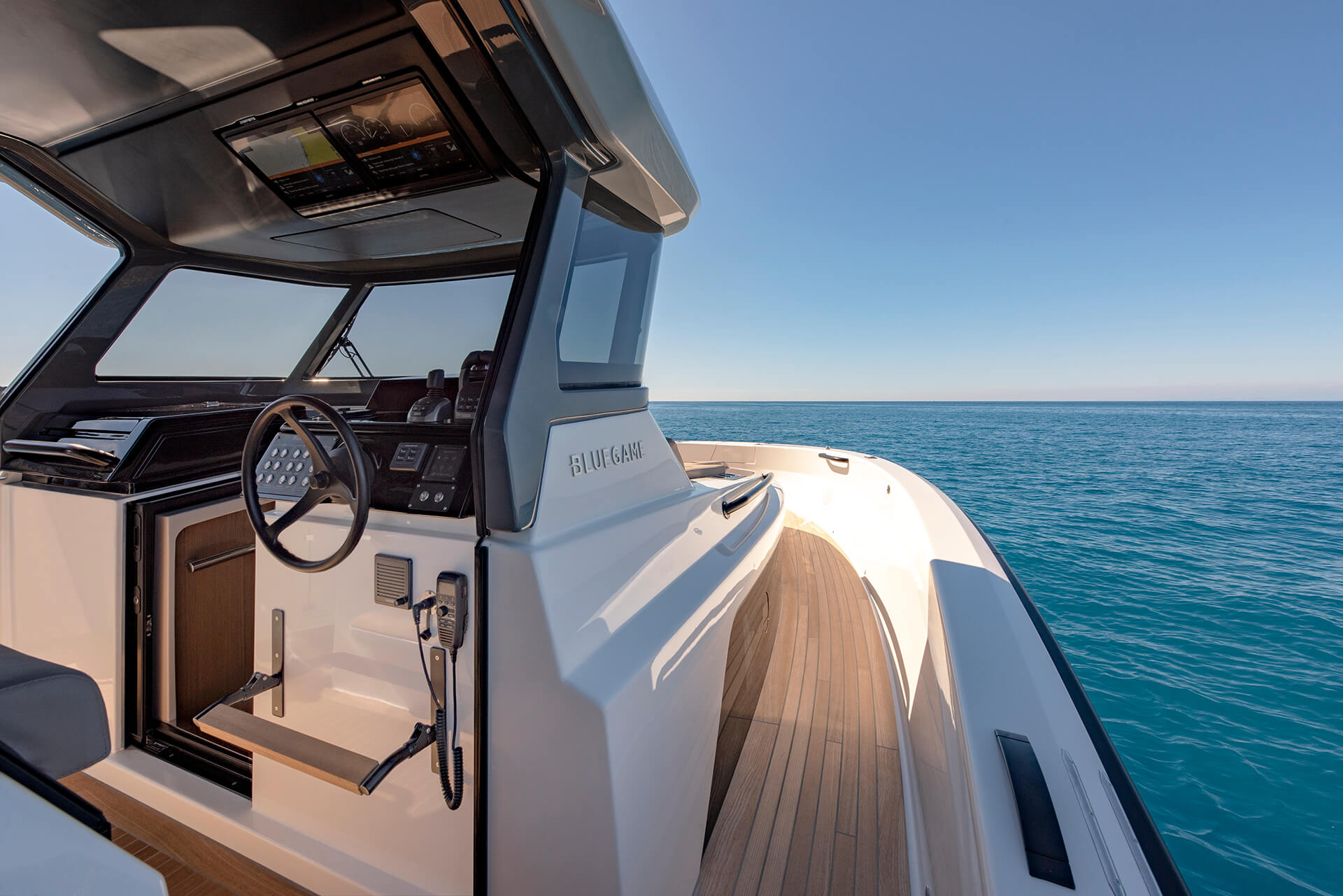

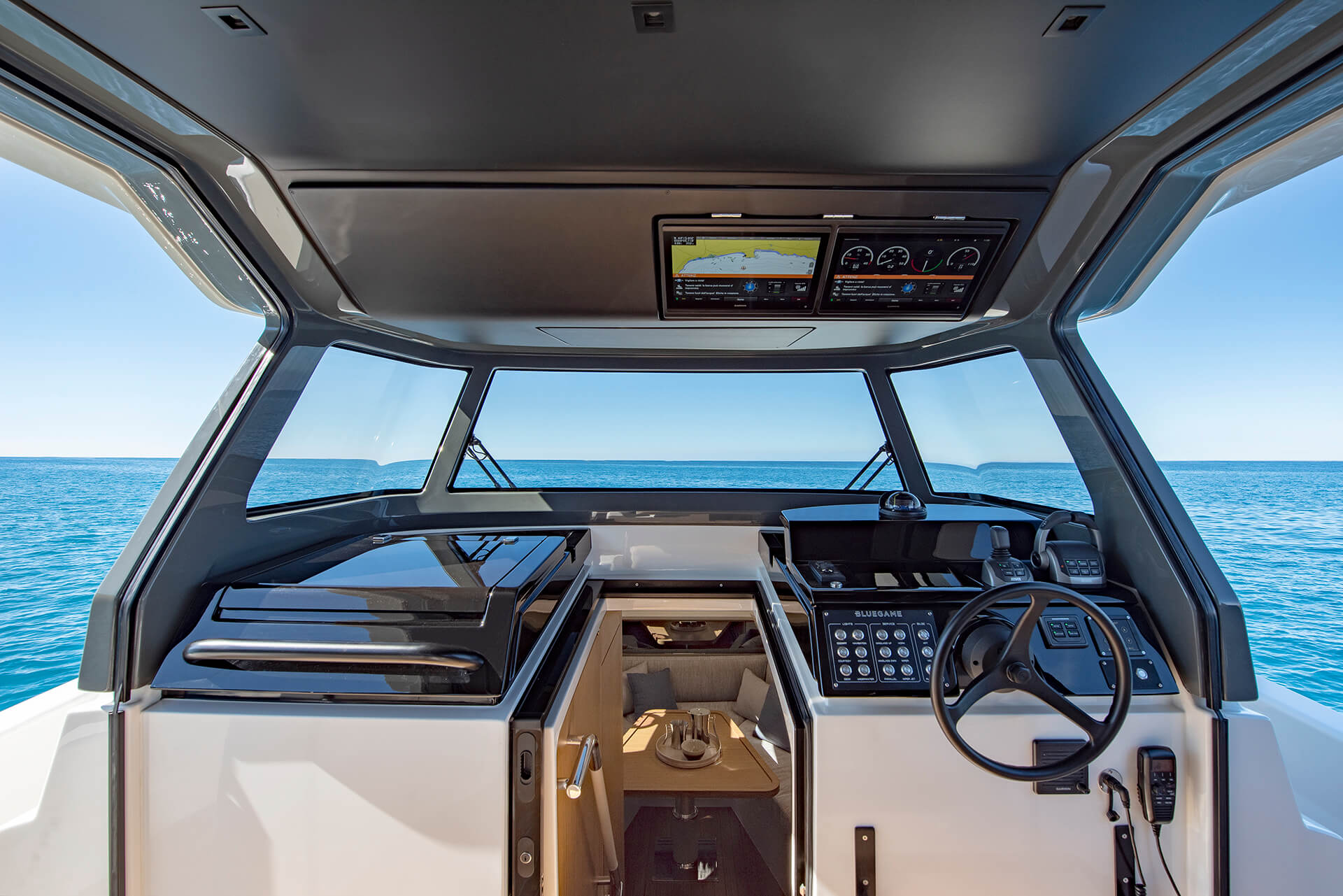

CONSOLE
Hi-Fi Compass
N° 2 monitor 9’’ GPS, depth and engines instrument board VHF station with antenna
IPS joystick
Volvo Penta electronic engine throttle 230 V & USB sockets
Anchor winch control Trim tabs control
Back-lighted switch panel for deck services Storage
Steering wheel
Fire control for manual extinguisher Red navigation light control Courtesy light control

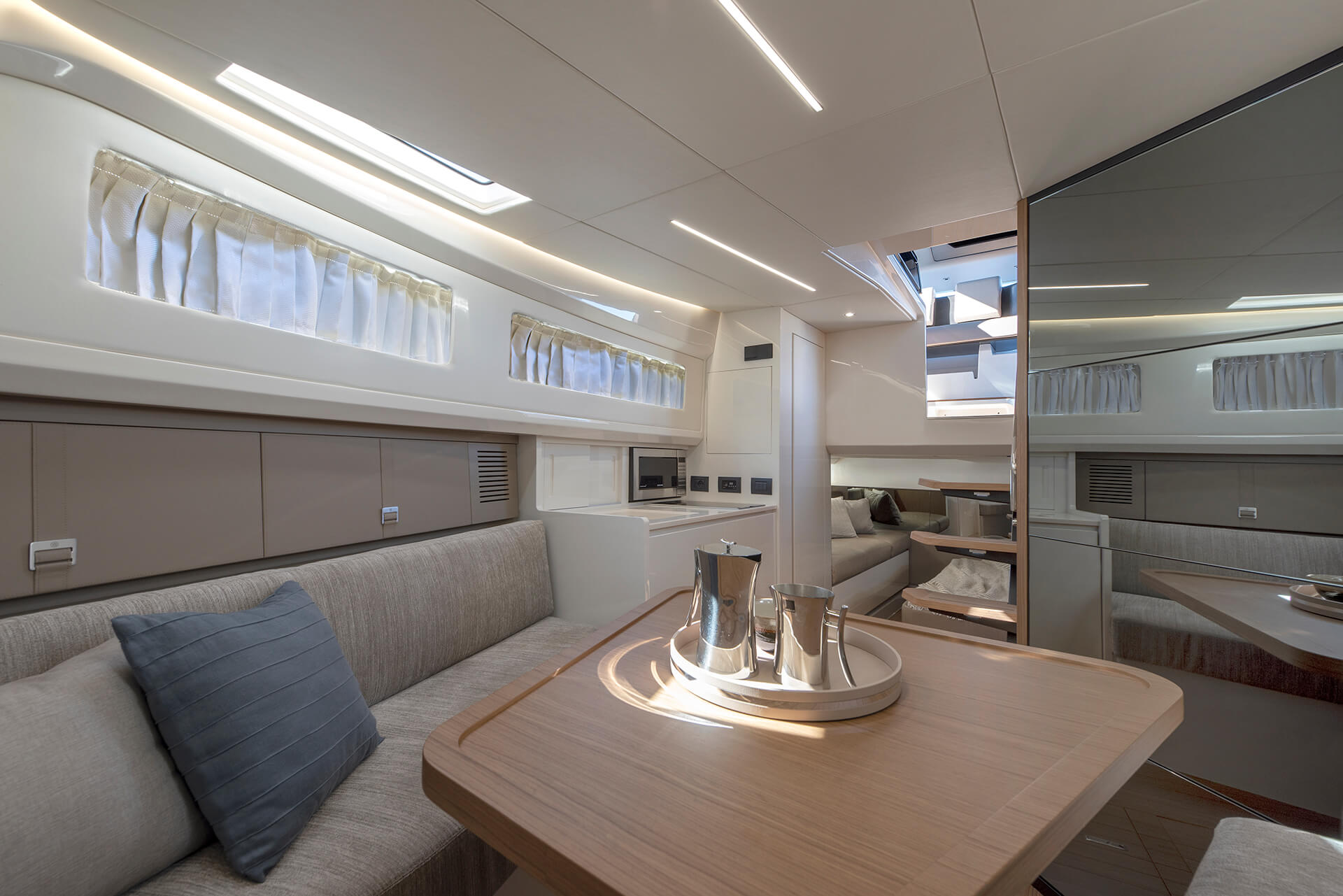

DINETTE
Dinette access sliding door
Stairs to lower deck with wooden steps Handrail
U-shape sofa in fabric Electric telescopic table Side portholes
Blinds
Furniture with storage Hi-Fi
N° 2 speakers
230 V & USB sockets Wooden floor
Electrical panel with breakers on all circuits Dimmable led lights
Fire extinguisher 1 kg

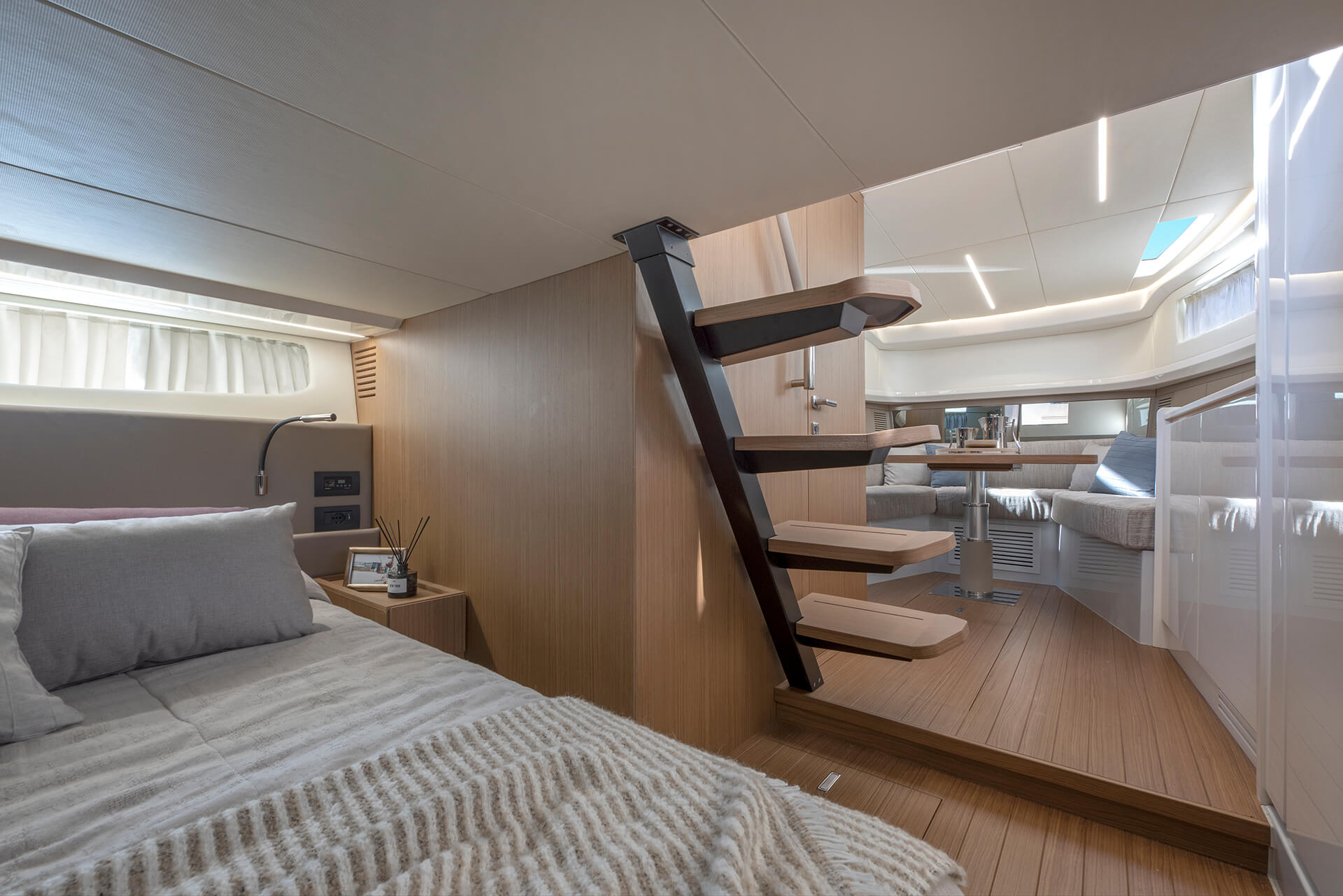

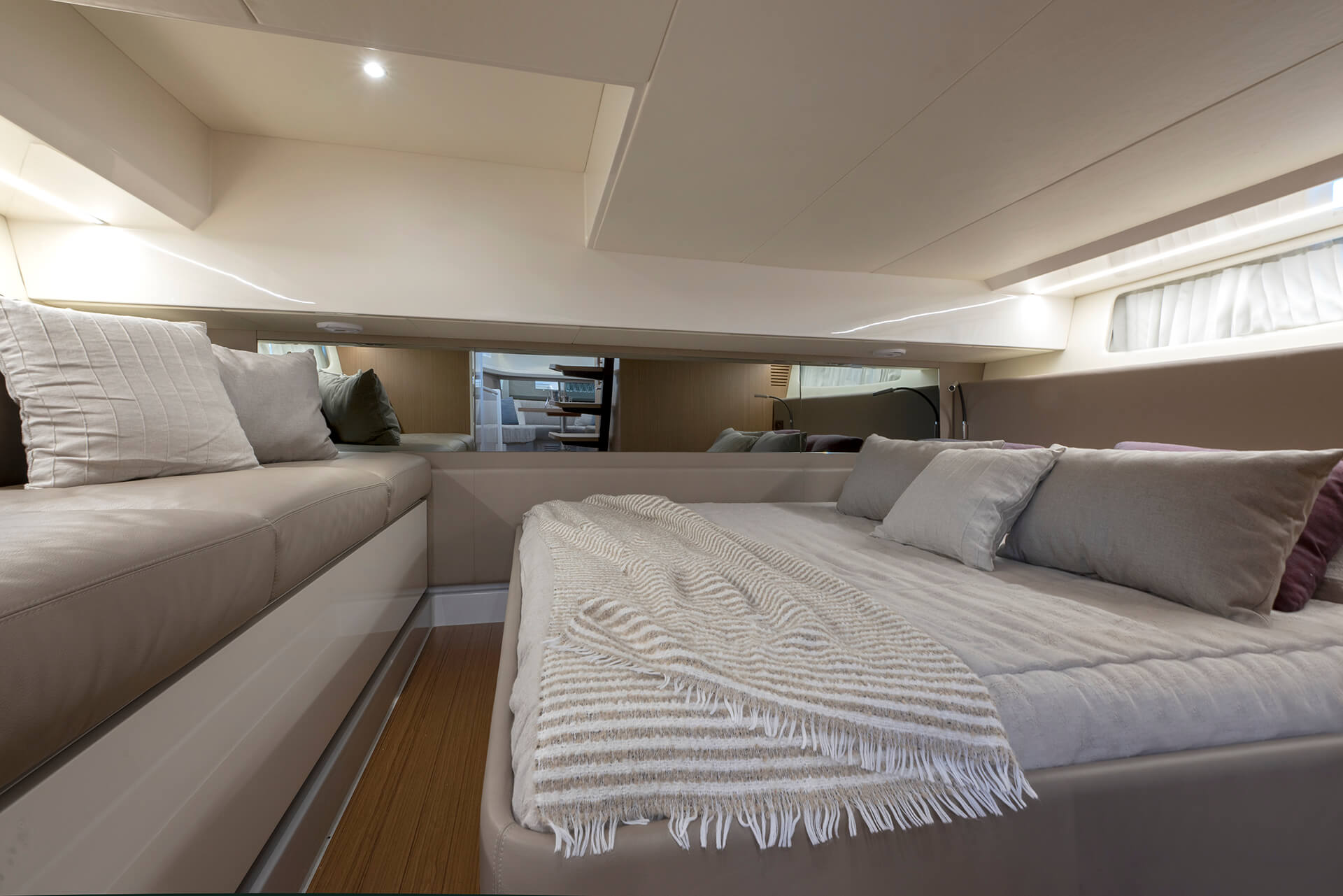

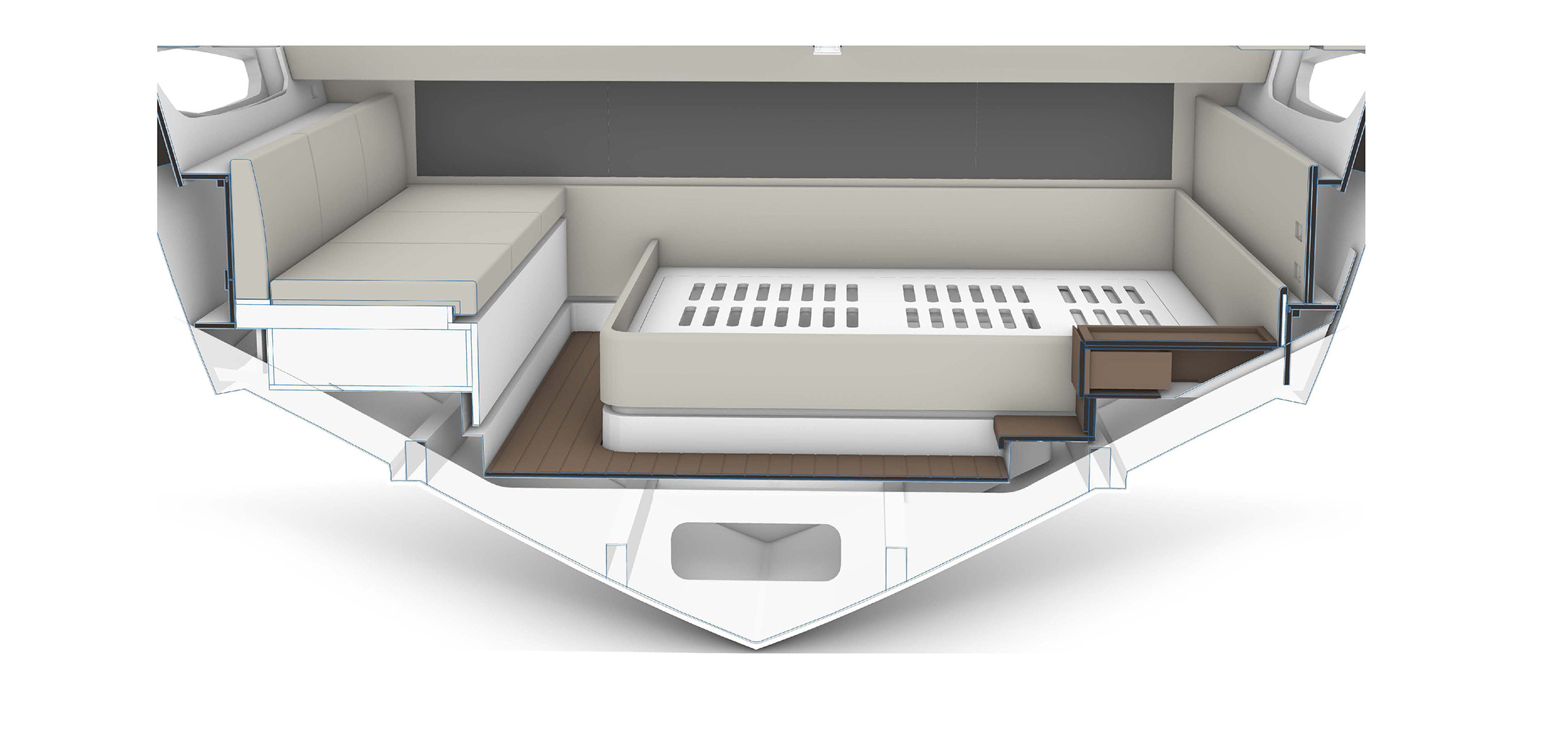

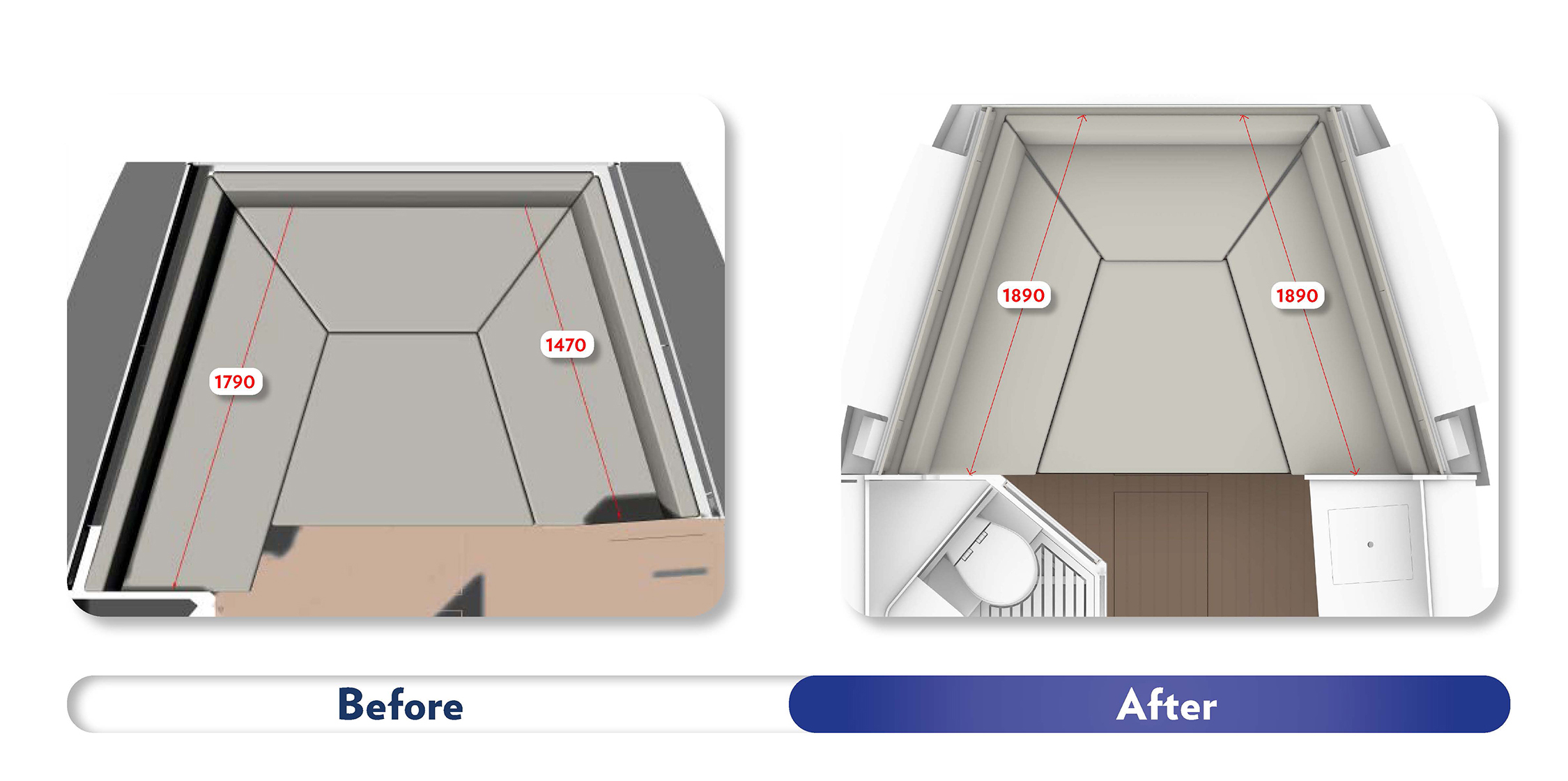

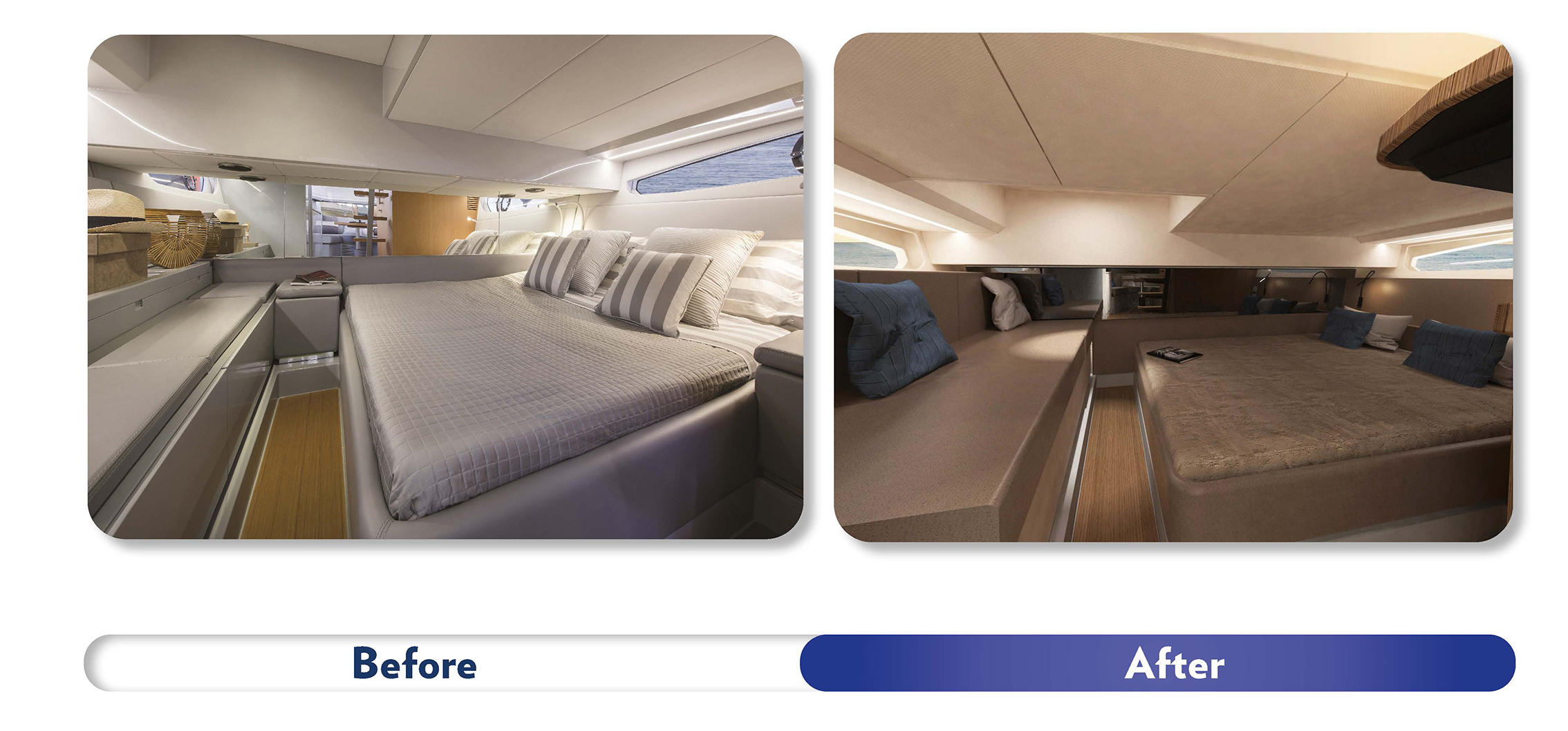

OWNER CABIN
Double bed with mattress Cabinets
Wooden floor Reading lights Dimmable led lights 230 V & USB sockets
Openable porthole integrated in the panoramic window Blinds
Pillows
Bed sheet covers Bed sheets
N° 2 speakers
Fire extinguisher 1 kg

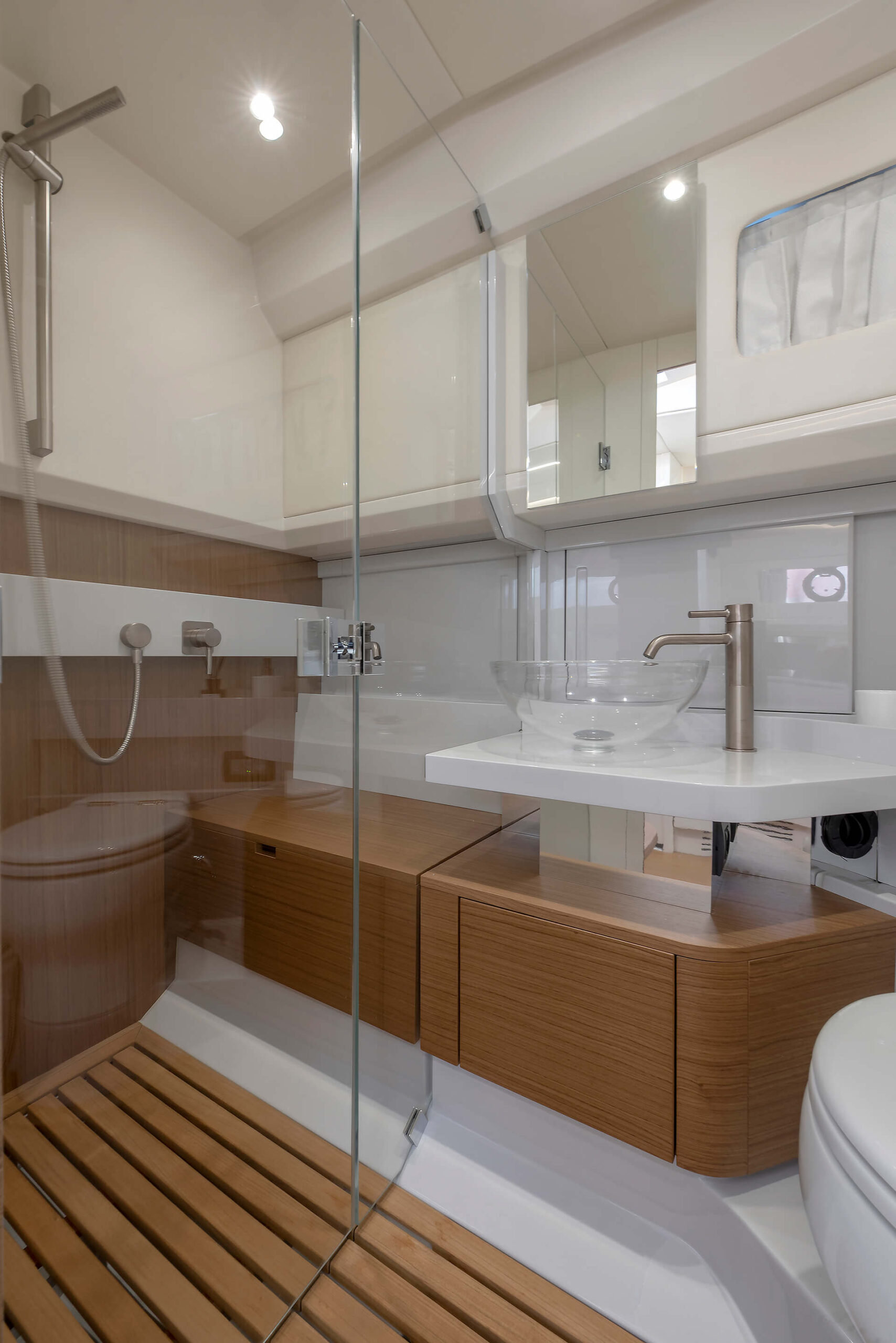

TOILET
Fresh water electric marine WC Hydro brush for WC
Wooden floor Led lights Blind
230 V power sockets Sink
Bathroom accessories
Cabinet
Openable porthole
Shower with handset and tempered glass door Bathroom towels

ENGINE ROOM
2 x Volvo IPS 600 D6 / 2 x 320 kW / 435 HP
1.400 l (2 x 700 l) S/S fuel tanks with fuel sender connected with EVC Volvo system
Electric valves for fuel interception Water/fuel filter
N° 4 bilge pumps; N° 2 in engine room and N° 2 in center hull, with automatic and manual control
Manual operating bilge pump
Fire extinguisher system with manual and automatic control
Engine room led light
N° 2 electrical ventilators 230 V power sockets

ELECTRICAL SYSTEM
Generator 5 kW 220 V
N° 1 generator AGM battery 100 Ah / 12 V N° 2 engines AGM batteries 100 Ah / 12 V N° 2 service GEL batteries 130 Ah / 12 V Electric and manual battery switches Battery charger 50 Ah
Inverter 2.000 W
220 V shore power 16 Ah with connection cable 15 m 30 Ah Galvanic Insulator

HIDRAULIC SYSTEM
Rotomolded plastic tank 320 l under the cabin beds with level transducer
Water heater 30 l (220 V)
Shore black water outlet discharge system Fresh water autoclave pump
Black water tank 95 l

Volvo IPS 650 (diff. from STD IPS 600)
Canvas strataglass cockpit enclosure (full version)

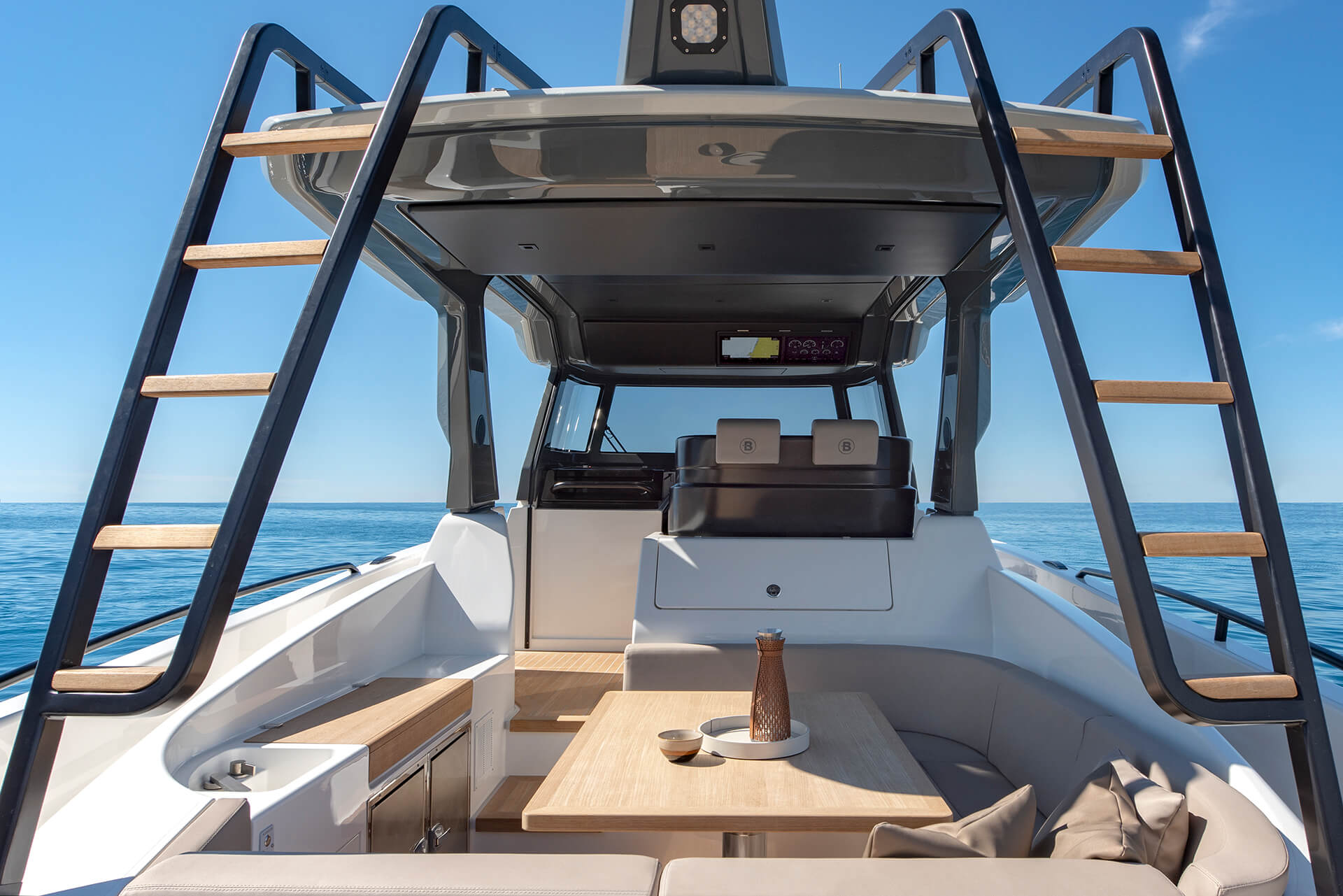

Ladder frame kit for Hard top (ladder-handrails )
Sun Top equipped with sunpad
Hydraulic lifting platform ( 400 Kg net lifting capacity)
Retractable gangway
Bow winch with fresh water outlet
Stern winch (n.2 units)
Gyroscope Seakeeper 3
Interceptor system (diff. from STD flaps)
Cockpit, walkaround and aft platform clead in teak

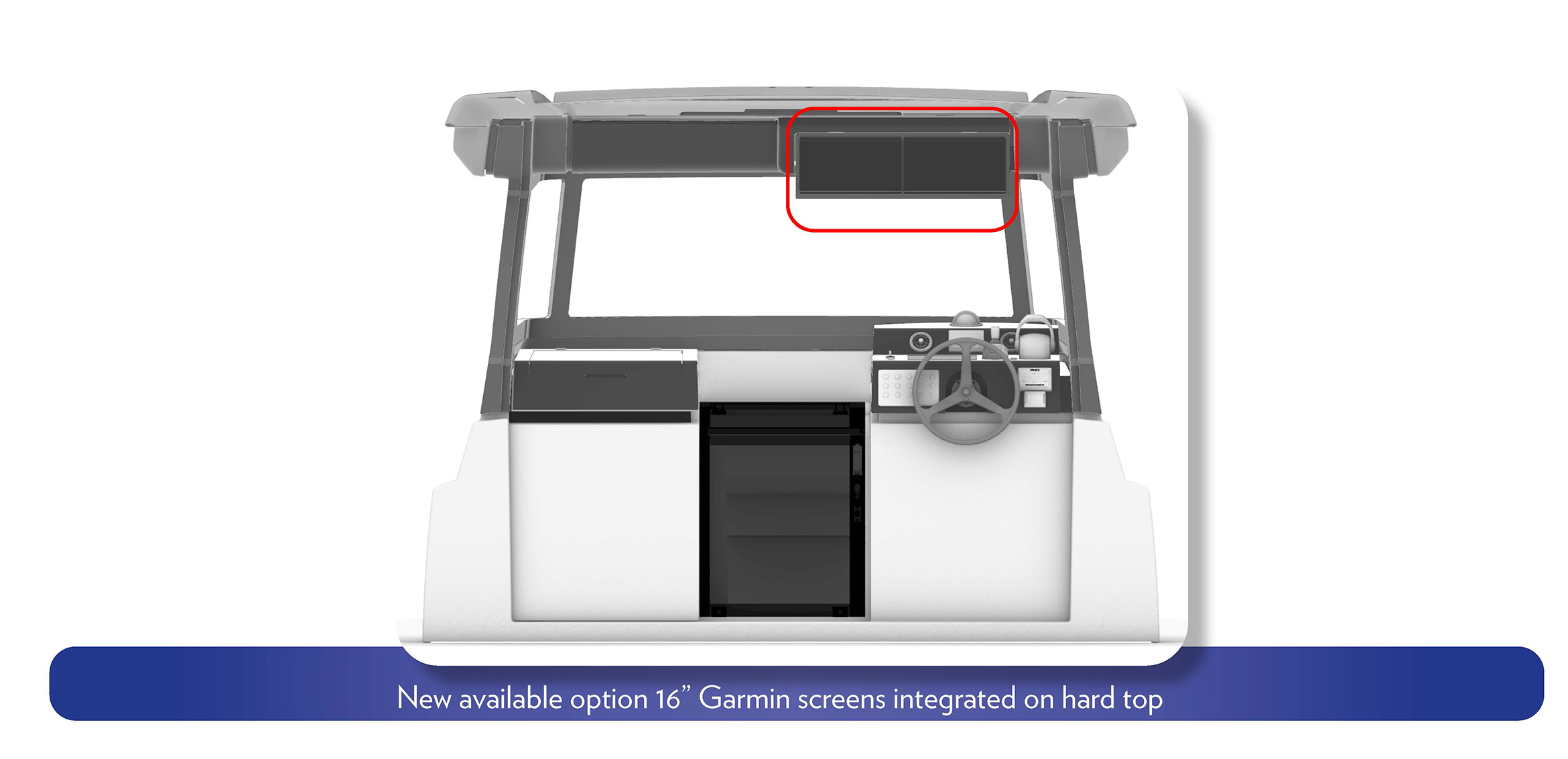

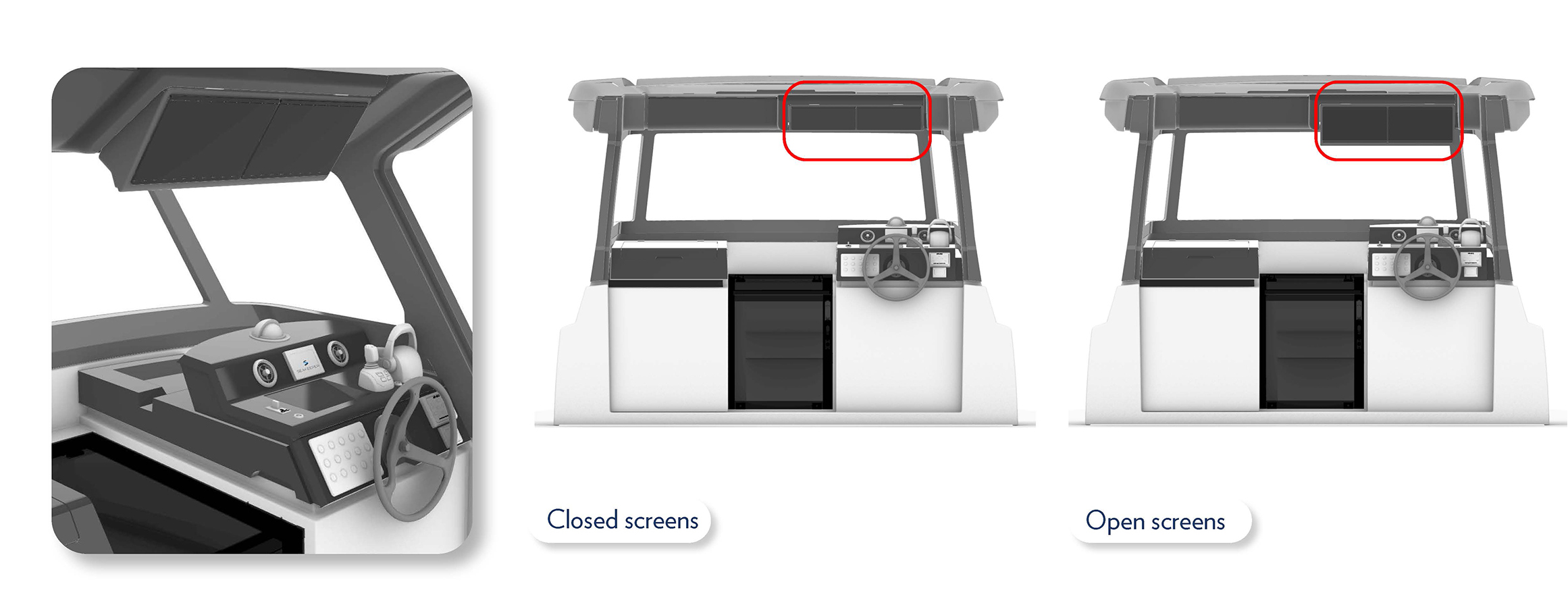

N.2 multifunctional Garmin display 16” (diff. From 9” STD) integrated in hard top
Auto Pilot Volvo
Assisted Docking Volvo Penta including DPS function
Interior furniture equipped with n.2 burners, sink, microwave and trash bin
A/C 16.000 Btu in lower deck including generator upgrade 7 kW
Additional fridge in lower deck (in lieu of storage)
Electric grill in cockpit (Diff. from cooking top)
Bow sunlounge bimini with carbon poles
Stern sunlounge bimini with carbon poles
Feet support under console
Proportional bow thruster
Custom cushions on wetbar
Foldable table with cup holders in external dinette
